Welding Robert Solar Commercial Water Heater

FOB Price

US$ 138 - 276 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Flat-Plate	Pressure	Pressurized
Circulation Type	Direct / Open Loop (Active)	Heating System	Thermosyphon (Passive)
Connection Type	Split	Installation	Other, Freestanding, Freestanding/ Wall mounted
Housing Material	Stainless Steel	Certification	CE, Other, UL, UR, CE, RoHS, UL, UR, PED/Watermark
Capacity	300	Place of Origin	Guangdong, China
Brand Name	SST	Model Number	solar commercial water heater

Welding robert solar commercial water heater

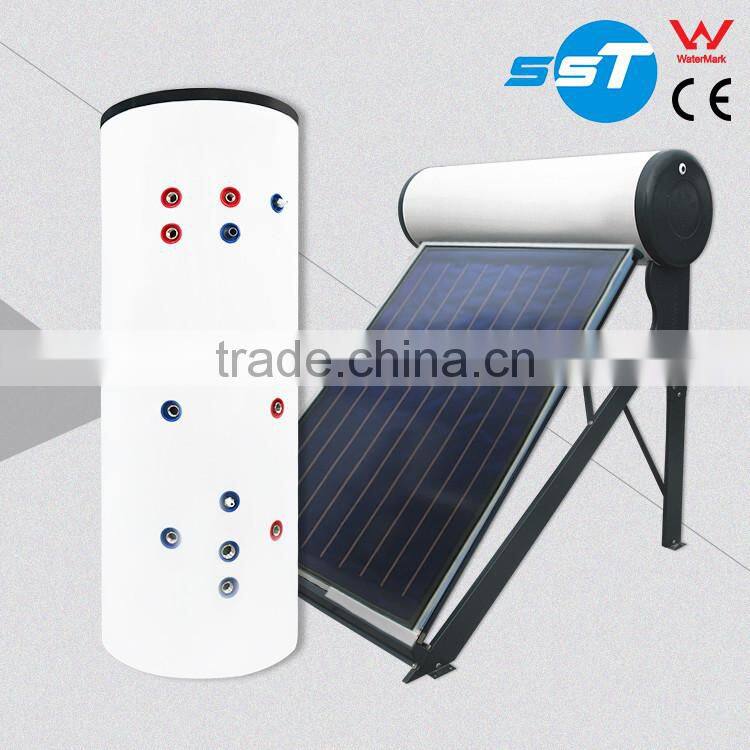

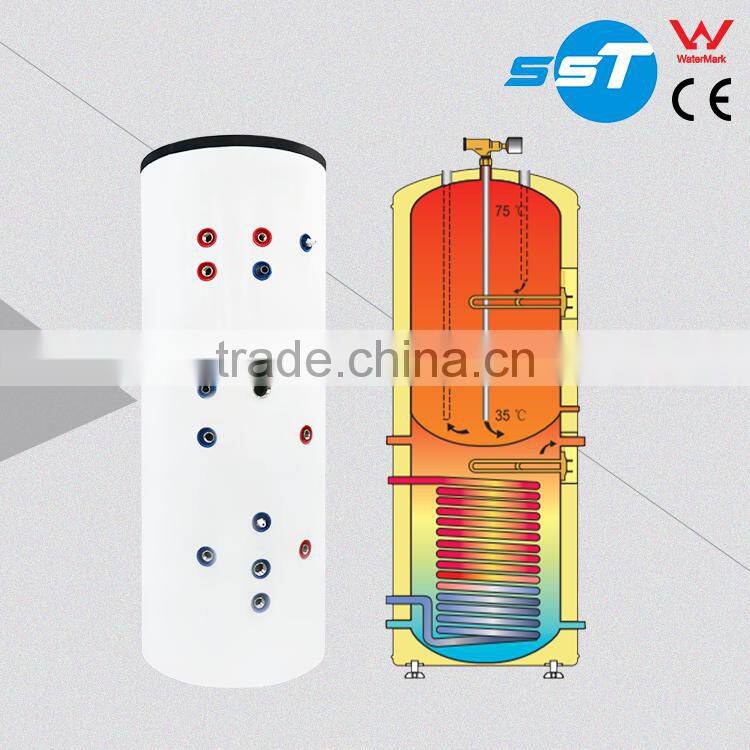

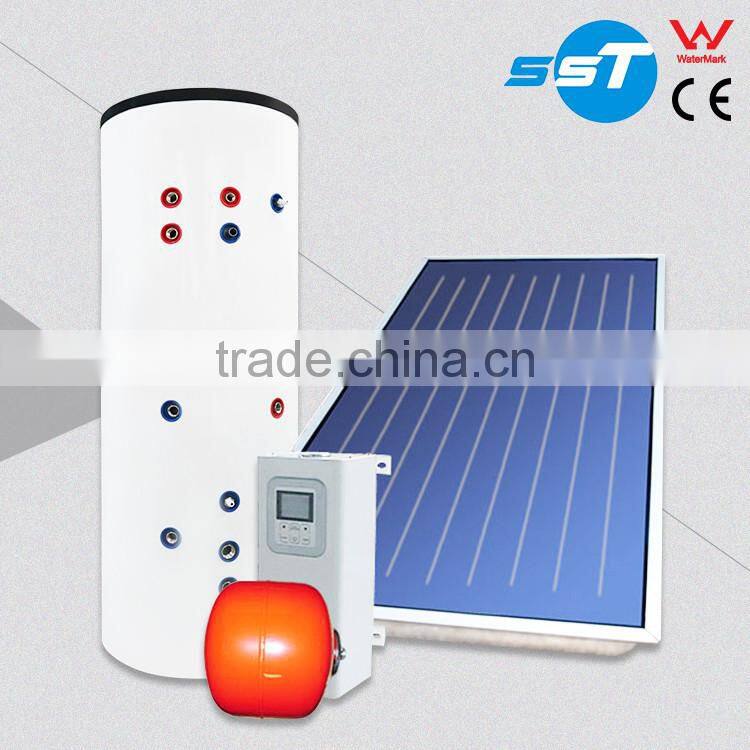

Product Show

SST

Product Parameters

SST

Capacity	L	100	200	300	400	500	600	800	1000
Inner tank diameter	mm	Φ370	Φ470	Φ500	Φ550	Φ600	Φ650	Φ700	Φ800
Out shell diameter	mm	Φ470	Φ560	Φ600	Φ650	Φ700	Φ760	Φ800	Φ900
Inner tank material	mm	SUS304 / SUS316L / Duplex2205 / Duplex2304
Out shell material	mm	galvanized steel with painting / stainless stell / PU
Out shell color		white / silver-grey / blue /red / golden / stainless stell
ing pressure	bar	6	6	6	6	6	6	6	6
Max.testing pressure	bar	10	10	10	10	10	10	10	10
Max.running temperature	℃	90	90	90	90	90	90	90	90
Heating loss	W/K	0.65	0.72	0.89	1.02	1.15	1.26	——	——
Standing loss	W	30	33	40	46	52	57	——	——
ERP Class		A	A	A	A	A	A	A	A
Electrical heater	kw	1.5	1.5	1.5	1.5	3	3	3	3
Mg.Anode	mm	*Φ22300**
Water connection		G / BSP / NPT 3/4"				G / BSP / NPT 1"
Packing size	mm	L:540 W;540 H:117	L:630 W:630 H:1440	L:670 W:670 H:163	L:720 W:720 H:1920	L:780 W:780 H:1930	L:850 W:850 H:1940	*Φ9002200**	*Φ9802420**

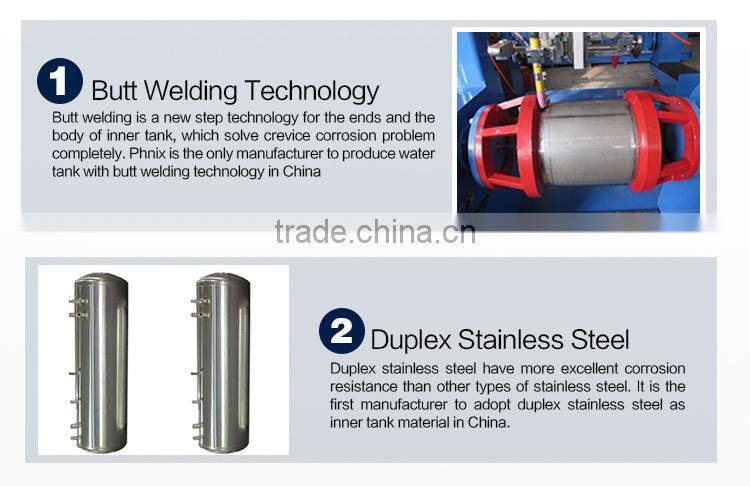

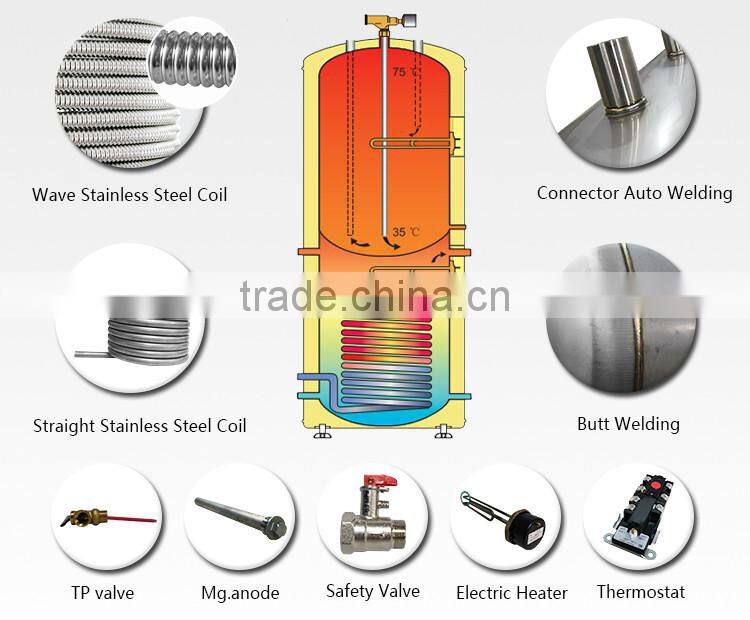

Unique Technology/advantage

SST
