Stainless steel design heat pump water boiler hot

FOB Price

US$ 138 - 276 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Natural Circulation
Usage	Power Station	Structure	Water Tube
Pressure	High Pressure	Style	Vertical
Fuel	Other, electric	Place of Origin	Guangdong, China
Brand Name	SST	Model Number	water boiler hot
Output	Hot Water	Dimension(LWH)	460(mm)250(mm)280(mm)
Weight	Can be customized	Certification	CE/PED/RoHS/Watermark
After-sales Service Provided	Overseas service center available

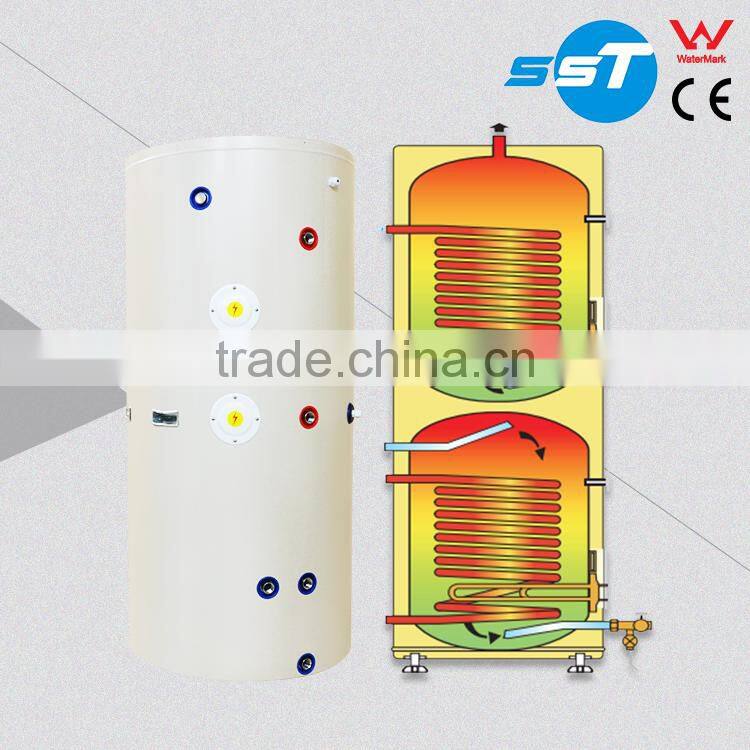

Stainless steel design heat pump water boiler hot

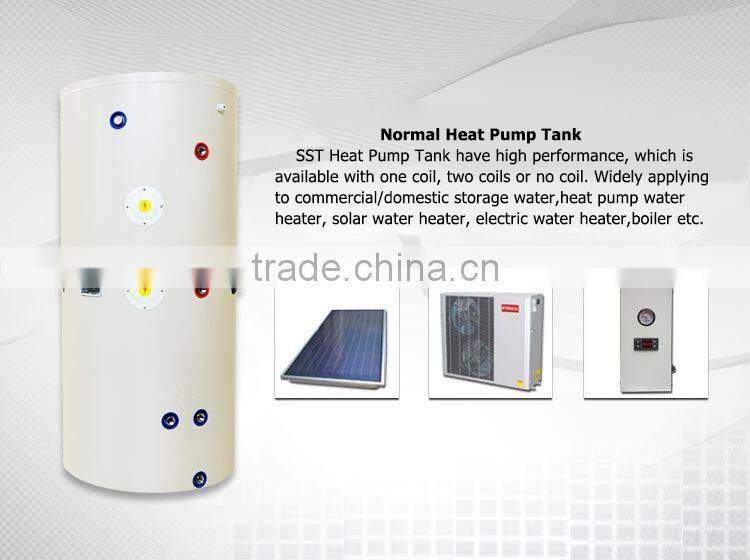

Product Show

SST

Product Parameters

SST

Capacity	L	100	200	300	400	500	600	800	1000
Inner tank diameter	mm	Φ370	Φ470	Φ500	Φ550	Φ600	Φ650	Φ700	Φ800
Out shell diameter	mm	Φ470	Φ560	Φ600	Φ650	Φ700	Φ760	Φ800	Φ900
Inner tank material	mm	SUS304 / SUS316L / Duplex2205 / Duplex2304
Out shell material	mm	galvanized steel with painting / stainless stell / PU
Out shell color		white / silver-grey / blue /red / golden / stainless stell
ing pressure	bar	6	6	6	6	6	6	6	6
Max.testing pressure	bar	10	10	10	10	10	10	10	10
Max.running temperature	℃	90	90	90	90	90	90	90	90
Heating loss	W/K	0.65	0.72	0.89	1.02	1.15	1.26	——	——
Standing loss	W	30	33	40	46	52	57	——	——
ERP Class		A	A	A	A	A	A	A	A
Electrical heater	kw	1.5	1.5	1.5	1.5	3	3	3	3
Mg.Anode	mm	*Φ22300**
Water connection		G / BSP / NPT 3/4"				G / BSP / NPT 1"
Packing size	mm	L:540 W;540 H:117	L:630 W:630 H:1440	L:670 W:670 H:163	L:720 W:720 H:1920	L:780 W:780 H:1930	L:850 W:850 H:1940	*Φ9002200**	*Φ9802420**

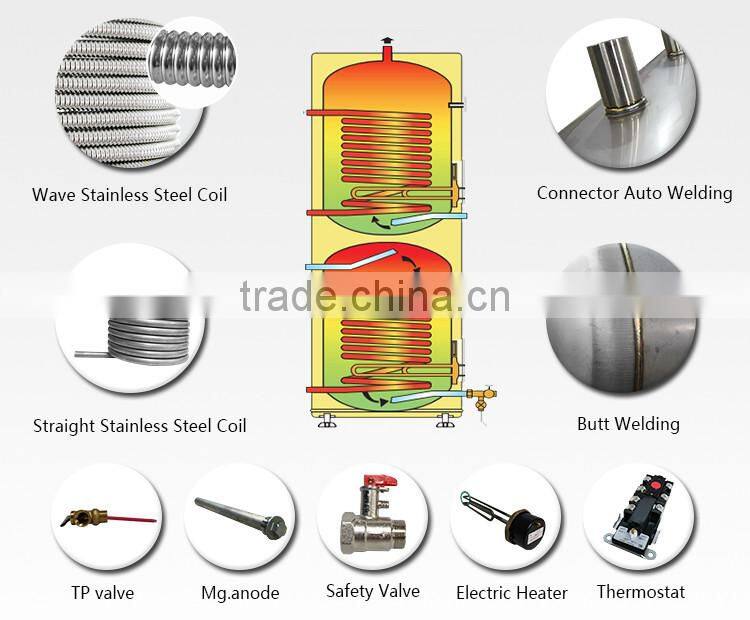

Unique Technology/advantage

SST

Guangzhou SST Heating Energy Co., Ltd.: Contact nameLorne Lee
Chat Now; Phone86-20-31062833; AddressYaohua Industrial Park Xingye Road Dagang Nansha, Guangzhou, Guangdong
