SAI GM5 Hydraulic Motor GM5-1000 GM5-1200 GM5-1300 GM5-1450 GM5-1600 GM5-1800 GM5-2000
- Ningbo, China
- T/T L/C
- 3 days
You May Like
-
SAI GM6 Hydraulic Motor GM6-1700 GM6-2100 GM6-2500 GM6-3000
-
SAI GM7 Hydraulic Motor GM7-2000 GM7-2500 GM7-3000 GM7-3600 GM7-4300 GM7-4700
-
SAI GM4 Hydraulic Motor GM4-500 GM4-600 GM4-800 GM4-900 GM4-1000 GM4-1100 GM4-1300
-
SAI GM3 Hydraulic Motor GM3-350 GM3-425 GM3-500 GM3-600 GM3-700 GM3-800 GM3-1000
-
Factory Directly Offered High Speed Hydraulic Winch Hoisting Winch Dredger Hydaulic Winch
-
High Quality Bonfiglioli Planetary Gearbox Reduction Gearbox
Product Details
| Brand Name | kemercn@hotmail.com | Place of Origin | China | |
| Model Number | GM series | Type | Hydraulic Motors |
Product Description
Hydraulic Motor, Gm Motor, Piston Motor, SAI GM hydraulic motor, hatch cover motor, marine motor, SAI GM1, SAI GM2, SAI GM3, SAI GM4, SAI GM5, SAI GM6, SAI GM7, SAI GM9, hydraulic motors, winch motor, hydraulic motor manufacturer
GM series bent axle radial plunger piston motor has such characteristics as: high mechanical efficiency and small volume, thus it can be widely applied in hydraulic and transmission systems of plastics machinery, light industrial machinery, heavy type metallurgical machinery, petroleum and coal mining machinery, lifting and transportation equipment, ship's deck machinery, geological prospecting equipments, etc.
Features:
1. High Efficiency, small volume, light weight
2.High starting torque, high specific speed range
3.Motor can be used in the pump working condition and realize freewheel operation condition.
4. Compact structure, reasonable design
5. Adopting high load capacity bearing and output shaft which can bear radial load and reverse the direction of rotation.
6. The mounting dimension and more than 80% of internal components can be interchanged with SAI Products.
GM05-60 GM05-90 GM05-110 GM05-60 GM05-130 GM05-150 GM05-200
GM1-100 GM1-150 GM1-200 GM1-250 GM1-300 GM1-320
GM2-250 GM2-300 GM2-350 GM2-420 GM2-500 GM2-600 GM2-630
GM3-350 GM3-425 GM3-500 GM3-600 GM3-700 GM3-800 GM3-1000
GM4-500 GM4-600 GM4-800 GM4-900 GM4-1000 GM4-1100 GM4-1300
GM5-1000 GM5-1200 GM5-1300 GM5-1450 GM5-1600 GM5-1800 GM5-2000
GM6-1700 GM6-2100 GM6-2500 GM6-3000
L7-2000 L7-2500 L7-3000 L7-3600 L7-4300 L7-4700
L9-5700 L9-6600 L9-7700 L9-8800 L9-10000 L9-12000

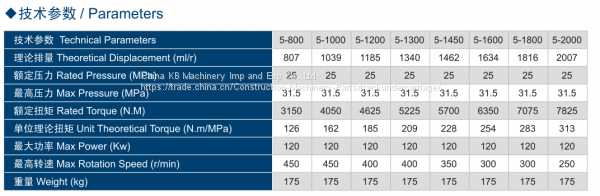

Specification:
Type | Displacement (ml/r) | Pressure (Mpa) | Torque (N.m) | Speed (r/min) | Weight (kg) | |||
Rated Pressure | Max.Pressure | Rated Torque | (N.m/Mpa) Theoric specific torque | Speed Range | Max.Speed | |||
GM05-60 | 59 | 25 | 45 | 235 | 9.4 | 1~700 | 1000 | 22 |
GM05-75 | 74 | 25 | 42.5 | 295 | 11.8 | 1~700 | 1000 | |
GM05-90 | 86 | 25 | 37.5 | 343 | 13.7 | 1~700 | 1000 | |
GM05-110 | 115 | 25 | 40 | 458 | 18.3 | 1~650 | 900 | |
GM05-130 | 129 | 25 | 37.5 | 513 | 20 | 1~650 | 900 | |
GM05-150 | 151 | 25 | 32.5 | 600 | 24 | 1~650 | 900 | |
GM05-170 | 166 | 25 | 32.5 | 660 | 26.4 | 1~600 | 800 | |
GM05-200 | 191 | 25 | 28 | 760 | 30.4 | 1~600 | 800 | |
GM1-100 | 99 | 25 | 42.5 | 385 | 15.4 | 1~550 | 1000 | 31 |
GM1-150 | 154 | 25 | 40 | 600 | 24 | 1~550 | 1000 | |
GM1-175 | 172 | 25 | 37.5 | 670 | 26.8 | 1~550 | 900 | |
GM1-200 | 201 | 25 | 35 | 785 | 31.4 | 1~550 | 800 | |
GM1-250 | 243 | 25 | 35 | 950 | 38 | 1~450 | 700 | |
GM1-300 | 290 | 25 | 30 | 1130 | 45.2 | 1~350 | 650 | |
GM1-320 | 314 | 25 | 28 | 1225 | 49 | 1~350 | 600 | |
GM3-425 | 426 | 25 | 42.5 | 1660 | 66.4 | 0.5~500 | 650 | 87 |
GM3-500 | 486 | 25 | 42.5 | 1895 | 75.8 | 0.5~450 | 600 | |
GM3-600 | 595 | 25 | 40 | 2320 | 92.8 | 0.5~450 | 575 | |
GM3-700 | 690 | 25 | 35 | 2700 | 108 | 0.5~400 | 500 | |
GM3-800 | 792 | 25 | 35 | 3100 | 124 | 0.5~400 | 500 | |
GM3-900 | 873 | 25 | 35 | 3400 | 136 | 0.5~350 | 400 | |
GM3-1000 | 987 | 25 | 28 | 3850 | 154 | 0.5~300 | 350 | |
GM5-800 | 807 | 25 | 42.5 | 3150 | 126 | 0.3~325 | 450 | 175 |
GM5-1000 | 1039 | 25 | 42.5 | 4050 | 162 | 0.3~300 | 450 | |
GM5-1200 | 1185 | 25 | 40 | 4625 | 185 | 0.3~300 | 400 | |
GM5-1300 | 1340 | 25 | 40 | 5225 | 209 | 0.3~300 | 400 | |
GM5-1450 | 1462 | 25 | 37.5 | 5700 | 228 | 0.3~275 | 350 | |
GM5-1600 | 1634 | 25 | 37.5 | 6350 | 254 | 0.3~250 | 300 | |
GM5-1800 | 1816 | 25 | 35 | 7075 | 283 | 0.3~250 | 300 | |
GM5-2000 | 2007 | 25 | 35 | 7825 | 313 | 0.3~200 | 250 | |
GM6-1700 | 1690 | 25 | 45 | 6600 | 264 | 0.2~250 | 400 | 275 |
GM6-2100 | 2127 | 25 | 40 | 8300 | 332 | 0.2~225 | 350 | |
GM6-2500 | 2513 | 25 | 35 | 9800 | 392 | 0.2~200 | 300 | |
GM6-3000 | 3041 | 25 | 30 | 11875 | 475 | 0.2~175 | 250 | |
FAQ
How about the products quality ?
Our factory has almost 10 years manufactoring experience, the reason why we accumulated so many clients is our target on customer satisfaction. We speak highly of the importance of product quality and aftersales service.
What about the delivery and the service from us?
We offer all customers quick response about all inquiries every time.If we have stock about parts you demand,we will deliver it in 1~3 days after payments.If no stock causualy,we will prepare it less than 15 days,which is very seldom taken palce.
Contact:
Email: kemercn@hotmail.com
Skype: kemercathy

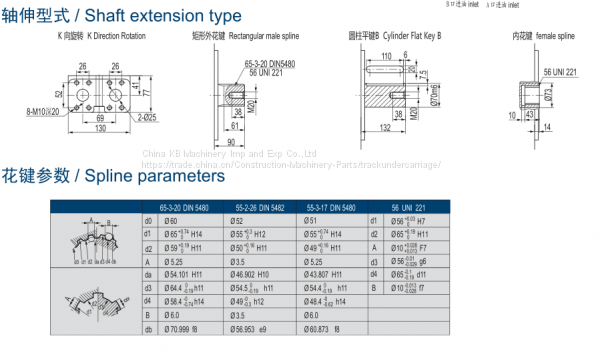

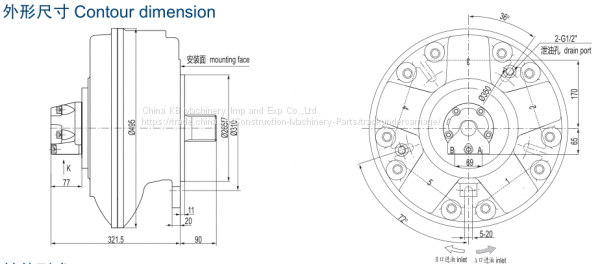

Dimension:
