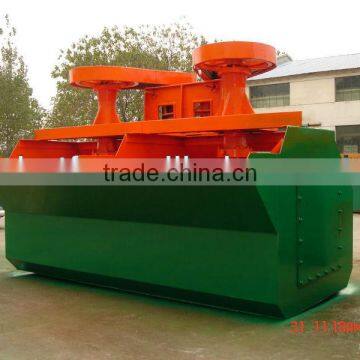

Tengfei Flotation machine for gold, copper, lead zinc seprating
- Qingdao/shanghai
- T/T
You May Like
Product Details
| Condition | New | Type | Flotation Separator | |
| Production Capacity | As per Model | Place of Origin | Henan, China | |
| Brand Name | Tengfei | Model Number | XJK/SF | |
| Voltage | 380v | Power(W) | 1.5-11kw | |
| Dimension(L*W*H) | 2625\1130\1290 | Weight | 2.4t/cell | |
| Certification | ISO9001:2008 CE | Warranty | 2 years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Flotation machine for gold, copper, lead zinc seprating1.For gold, copper lead zinc etc ore separation
2.sulphide ore
3.Bes
XJK flotation machine
When flotation machine works, slurry is inhaled from the bottom of the trough to the space between impellers. Meanwhile, the low_pressure air send by fan is sent to this area through the air distributor in the hollow shaft. After sufficient mixing, the slurry is pushed out by the impeller, and then goes to the whole trough. When the froth rises to the stable level, after the enrichment processing, froth overflows to the froth trough from the overflow weir. Another part of ore slurry flows to lower part of impeller for the re_mis with air. The remained slurry flows to the next trough until becomes residue.
Flotation machine for gold, copper, lead zinc seprating
Main Technical Parameters of XJK Flotation Machine
Model | Valid volume m3/slot | Impeller diameter (mm) | Capacity (m3/min) | Impeller rotation speed (r/min) | Scraper rotation speed (r/min) | Motor | Dimension 4-slot machine (mm) | Weight t/slot | |
Model | Power (kw) | ||||||||
XJK-0.13 | 0.13 | 200 | 0.05-0.16 | 600 | 17.5 | Y90L-4 | 1.5 | 2100865900 | 0.35 |
XJK-0.23 | 0.23 | 250 | 0.12-0.28 | 500 | 17.5 | Y90L-4 | 1.5 | 262511301290 | 0.41 |
XJK-0.35 | 0.35 | 300 | 0.15-0.5 | 470 | 17.5 | Y100L1-4 | 2.2 | 301213501320 | 0.45 |
XJK-0.62 | 0.62 | 350 | 0.3-0.9 | 400 | 16 | Y100L2-4 | 3 | 380015001550 | 0.85 |
XJK-1.1 | 1.1 | 500 | 0.6-1. 6 | 330 | 26 | Y132M-6 | 5.5 | 468018201950 | 1.4 |
XJK-2.8 | 2.8 | 600 | 1.5-3.5 | 280 | 26 | Y160L-6 | 11 | 775026002700 | 2.43 |
SF flotation machine
Compared with common flotation machine, this SF flotation machine has the following advantages:
Improve grade 4-6%;
Improve recovery rate 8%
Improve capacity 12%
Main Technical Parameters of SF Flotation Machine
Model | SF0.37 | SF0.7 | SF1.2 | SF2.8 | SF4 | SF8 | |||||||
Slot volume(m3) | 0.37 | 0.7 | 1.2 | 2.8 | 4 | 8 | |||||||
Impeller diameter (mm) | 300 | 350 | 450 | 550 | 650 | 760 | |||||||
Capacity(m3/min) | 0.2-0.4 | 0.3-0.9 | 0.6-1.2 | 1.5-3.5 | 0.5-4 | 4-8 | |||||||
Impeller rotation speed(r/min) | 352 | 400 | 312 | 268 | 238 | 191 | |||||||
Motor | Model | (1)Y90L-4 | (1)Y100L2-4 | (1)Y132M2-6 | (1)Y160L-6 | (1)Y180L-6 | (1)Y250M-8 | ||||||
(2)Y90S-4 | (2)Y90S-4 | (2)Y90S-4 | (2)Y90S-4 | (2)Y90L-4 | (2)Y100L-6 | ||||||||
Power (kw) | (1)1.5 | (1)3 | (1)5.5 | (1)11 | (1)15 | (1)30 | |||||||
(2)1.1 | (2)1.1 | (2)1.1 | (2)1.1 | (2)1.5 | (2)1.5 | ||||||||
Dimension(mm) | 700x700x750 | 900x820x950 | 1100x1100x1100 | 1700x1600x1150 | 1850x2050x1200 | 2200x2900x1400 | |||||||
Single slot weight(kg) | 468 | 600 | 1373 | 2338 | 2660 | 4130 | |||||||
