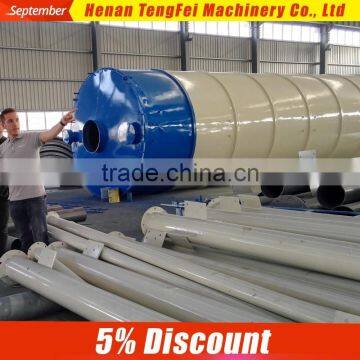

200T Steel storage silo portable cement silo/bolted detachable cement silos for sale
- Qingdao/Shanghai/Tianjin
- T/T PayPal
You May Like
Product Details
| Condition | New | Production Capacity | 200t cement storage silos | |
| Place of Origin | Henan, China | Brand Name | Teng Fei | |
| Model Number | 200T | Voltage | portable cement silo | |
| Power(W) | steel storage silo | Dimension(L*W*H) | as shown in table | |
| Weight | 11.5t | Certification | BV/CE | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
200T Steel storage silo portable cement silo/bolted detachable cement silos for sale
1. Introduction of 200t steel storage silo
The latest model cement silo used for storage cement, or fly ash, sand, etc, is specially designed for export. It is with features of high adaptation for long-distance container loading transportation, delivery cost saving, easy and fast on-site assembly and move and high safety etc.
2. Main parts of 200t steel storage silo
Safety valve to balance the pressure inside and outside the silos.
Level indicator so as to monitor the material level and amount.
Arch breaker to avoid blocking at the discharge port.
Dust collector at the top to dedusting.
With the screw conveyor, the materials can be conveyed to a certain position.
Suitable for loading into containers and exporting. Perfect sealing assure its efficient working performance.
3. Main Parameters of steel storage silo
Item | 50t | 80t | 100t | 120t | 150t | 200t | 300t | ||
Tank | Height (m) | 4.5 | 7.5 | 9 | 10.5 | 13.5 | 9 | 8.25 | |
Diameter (m) | 3 | 3 | 3 | 3 | 3 | 4.5 | 5.5 | ||
Section quantity | 3 | 5 | 6 | 7 | 9 | 6 | 5.5 | ||
Each section is divided into three pieces, the height of each section is 1.5 meters. | |||||||||
Top cover | Top cover is divided into two pieces | ||||||||
Cone | Height (m) | 2.6 | 2.6 | 2.6 | 2.6 | 2.6 | 3.8 | 4.8 | |
Pieces | Cone is divided into 5 pieces | ||||||||
Discharging | Discharging height (m) | ≥1.5 | ≥1.5 | ≥1.5 | ≥1.5 | ≥1.5 | ≥1.5 | ≥1.5 | |
Laining leg height (m) | ≥4.1 | ≥4.1 | ≥4.1 | ≥4.1 | ≥4.1 | ≥5.3 | ≥6.3 | ||
Laining leg height depend on discharging height | |||||||||
Weight (kg) | 2.7 | 4.5 | 4.8 | 6.75 | 8.1 | 11.5 | 18 | ||
Other parts | Arch breaker | Pneumatic arch breaker / Electric vibrator , 1 unit | |||||||
Pneumatic Valve | DN300 | ||||||||
Dust collector | Dust collector / electric dust collector | ||||||||
