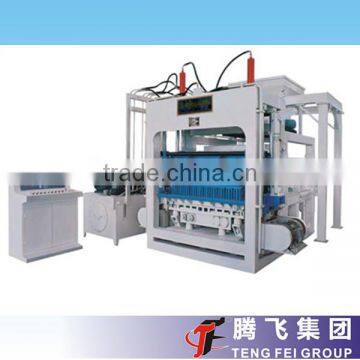

NEW qt5 20 color paver block making machine for sale

3. Working Principle of new qt5 20 color paver block making machine

• The sand and gravel and other raw materials will be conveyed by the loader into batching machine, measured by electronic meter and burdening according to the computer storage formula (or random adjustment). After measurement, the material will be conveyed by the conveyor into the hopper of concrete mixer machine, and be conveyed into concrete mixer.

• The cement and flyash will be sconveyed by the screw conveyor into cenment and fly ash measure system severally, and be conveyed into concrete mixer in the end. Then water enter in concrete mixer according to the water cement ratio design.

• After mxing corresponding period, the mixing material will be conveyed into storage hopper of block machine by belt conveyor. Then the mixing material will be sent to the mould by the distributing device.

• Centrifugal force produced by the rotation of distributing shaft fabric would send the material to  feeding box forcibly, the distributing device returned after feeding. discharge head goes down and at the same time start the vibrator vibration, and vibration compression.

• After moulding, lifting the molding box and the finished product will be extruded and sent to the brick conveyor, after cleaned by the brick face sweeper cleaning machine, the finshed product will be sent to palletizing machine, curing chamber by the forklift in the end.

4. Equipments List of new qt5 20 color paver block making machine

Mould no.	Block type	Block size and output capacity	Block picture	Pallet pictue
1	Hollow	400mm×200mm×200mm 5 pieces/mould 5500 pcs/8h
2	Hollow	400mm×120mm×190mm pieces/mould 10080 pcs/8h
3	Standard	200mm×100mm×60mm 20 pieces/mould 28800 pcs/8h

Note: fully-automatic concrete brick making machine can be customerized.
