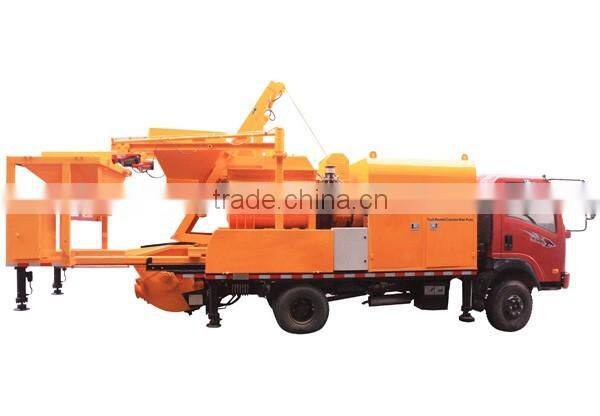

Truck Mounted Concrete Mixing Pump With Aggregate Weighting System
- Shanghai
- T/T
You May Like
-
Truck Mounted Concrete Mixer Pump With Aggregate Weighting System
-
Most Popular 42m, 45m Truck-Mounted Concrete Boom Pump With Isuzu Chassis
-
Hot! 48m, 52m Work Range Truck-Mounted Concrete Boom Pump, Concrete Pump With Boom
-
Isuzu Chassis Radio Remote Control 48m 52m Truck-Mounted Concrete Boom Pump
-
Good Quality Diesel Engine Concrete Trailer Pump (HBTS80.13.130R)
-
Good Performance&Comptetive Price! ! Focus Concrete Pump With Electric Motor 110KW
Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Henan, China | Brand Name | FOCUS | |
| Model Number | JBC40 | Power(W) | 37kw | |
| Weight | 2800kg | Dimension(L*W*H) | 4000x2200 | |
| Certification | BV,ISO certification | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Advantages of Truck mounted concrete mixing pump:
1.Flexible mixer and batcher, keep truck balance, convenient maintenance.
2.Increase the feeding speed and production efficiency.
3.Reduce labor intensity and save manpower.
Featurers of Truck mounted concrete mixing pump:
1.Truck mounted concrete mixer pump, high efficiency concrete machine.
2.This machine can pump 70 meters in vertical and 300 meters in horizontal.
3.Max mixing output is 25 m3/h.
4.Electric motor, can use electricity power supply or diesel genset(diesel generator).
5.With the weighting system for aggregate, the quality of concrete is better.
6.It can be put on a truck, easy to move. The truck is normally prepared by user.
Parameter of Truck mounted concrete mixing pump:
Pumping System | ||||||||
Pump Model | / | 40.7.37S | Main Motor | kw | 37 | |||
Max. Theo. Pumping Output | m3/h | 40 | Main Pump Brand | / | Flutek Kawassik K3V112 | |||
System Pressure | Mpa | 28 | Outlet Pressure | Mpa | 7 | |||
Delivery CylinderxStroke | mm | Φ200x100 | Main Oil Cylinder/Rod*Stroke | mm | Φ100/Φ70*1000 | |||
Distribute Valve | / | S Valve | Diameter of Outlet | mm | Φ200 | |||
Oil Tank | L | 300 | Delivery Pipe | mm | Φ125 | |||
Aggregate Size | mm | Pebble:40 Crushed Stone:30 | Slumps | cm | 12-23 | |||
Generator | kw | 100 | Generator Brand | / | Cummins | |||
Mixing System | ||||||||
Mixer | / | JS500 | Mix Motor | kw | 18.5 | |||
Max. Theo. Mixing Output | m3/h | 25 | Hoist Motor | kw | 5.5 | |||
Incharge HopperxFilling Height | Lxmm | 800x1200 | Water Pump | kw | 0.75 | |||
Discharge Hopper Capacity | L | 500 | Vibrator | kw | 0.75x2 | |||
Flexible | / | Yes |
|
|
| |||
Batching System | ||||||||
Hopper Capacity | m3 | 1.8 | Compressor | bar | 3 | |||
Hydraulic Outrigger | pcs | 2 | Flexible | / | Yes | |||
Frame | ||||||||
LxW | mm | 4000x2200 | Hydraulic Outrigger | pcs | 4 | |||

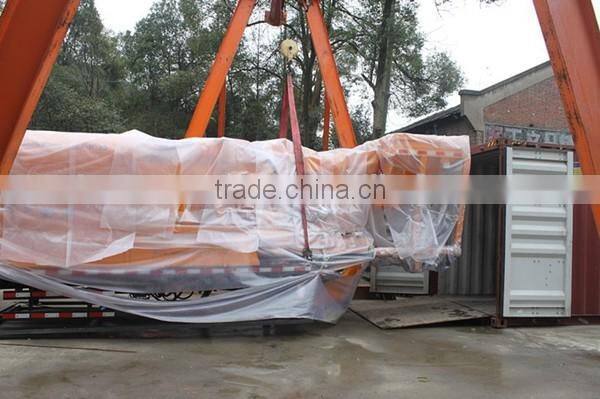

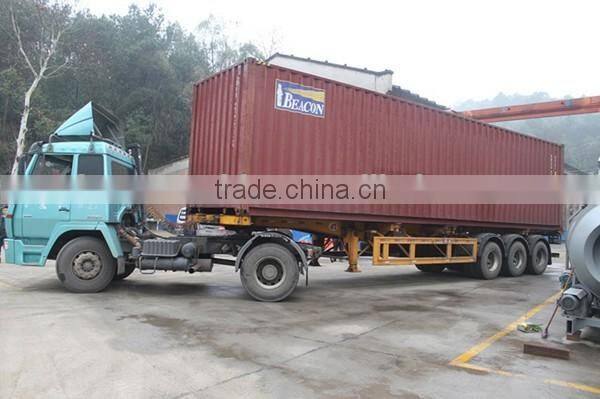

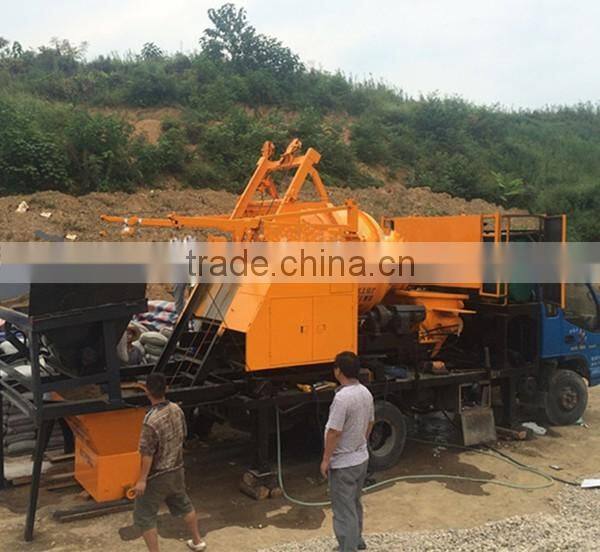

Photos of Truck mounted concrete mixing pump:
