Home > Products > Asphalt Mixing Plant > SLB30 30t /h Mobile Asphalt Mixing Plant

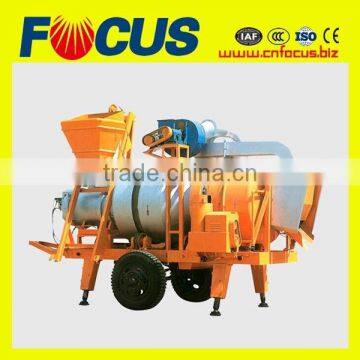

SLB30 30t /h Mobile Asphalt Mixing Plant
- Qingdao Shanghai Xiamen
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | FOCUS | Model Number | SLB30 | |
| Voltage | 380v/50hz | Power(W) | 87kw | |
| Dimension(L*W*H) | 2-6 sets of 40HQ | Weight | 2-6 sets of 40HQ | |
| Certification | ISO | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Features of mobile asphalt mixing plant :
1. Integrated design of drying and batching in drum, reduce initiate cost for customer
2. Simple structure, easy operation, drying while drum rotate in counter-clockwise direction (from burner), discharging while drum rotates in clockwise direction (from burner), and the wind are swirled in the center of the drum;
3. PLC control, touch screen, auto/manual switchable
4. Towing chassis for easy transport and installation
5. Burner is available for coal and oil, at customer's option
Parameter of mobile asphalt mixing plant:
Model | SLB-8 | SLB -10 | SLB -15 | SLB -20 | SLB -30 | ||
Capacity | 8t/h | 10t/h | 15t/h | 20t/h | 30t/h | ||
Power | Oil | 22kw | 28 kw | 46 kw | 61 kw | 87 kw | |
Coal | 38kw | 48 kw | 65 kw | 84 kw | 110 kw | ||
Outlet Temp. | 120-180℃ | ||||||
Fuel consumption | Fuel oil:5~7.5kg/t | Coal:13~15kg/t | |||||
Optional parts | Aggregate batcher, Coal mill, water dust collector, bag type dust collector, control room, asphalt tank, etc. | ||||||
