Liquid and Liquid Industrial Tubular Centrifuge
- China Main Ports
- T/T
You May Like
Product Details
| Brand Name | bidragon | Model Number | BGF-105 | |
| Condition | New |
Product Description
Specifications
Industrial Tubular Centrifuge1.High speed, good separation effect
2.Material contact part SUS304 or SUS316L
3.Wide applicati
Introduction:
The high speed industrial tubular centrifuge machine models are mainly used for separation of various difficult separation of suspensions, emulsions, and particularly applicable to dilute concentration, fine particles, little difference in specific gravity of the solid - liquid, liquid - liquid- solid separation, the user may be based on the separation of materials characteristics, free to choose different drums. The models can be replaced by the cup, test tube and centrifuge experiments and production testing equipment, may also meet in small quantities in the pharmaceutical, chemical, biological, metallurgy, environmental protection, paint and other industries, the production of the small size of many varieties.
Features:
The industrial tubular centrifuge machine is small, easy to operate, high separation factor, running balance, low noise, disassembly, maintenance is extremely convenient. Used for the laboratory, laboratories, hospital preparation units. The models can be equipped with temperature control, speed control device, in order to meet the different needs of customers, the all material contact parts are stainless steel .
Working Principle:

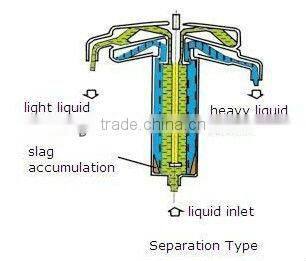

This industrial tubular centrifuge machine composed of main body, transmission system, rotary drum, liquid collection system, the liquid inlet system. Drum upper and the flexible spindle then, at the bottom of the damping plain bearings. Equipment when working drum high-speed rotating around its own axis, forming a powerful centrifugal force field. Material from the bottom of the inlet system into the liquid nozzle into the goal, forcing solid to liquid drum within the centrifugal force along the drum wall upward mobility , and the density difference between the different components of the solid to liquid stratification .
Technical Parameters:
Model | BGF105 | |
Rotary Drum | Inside Diameter | 105 |
Valid height (mm) | 730 | |
Deposition Volumn L | 6 | |
Max RPM(r/min) | 19000 | |
Max Separation Factor | 21000 | |
Material inlet nozzle diameter | 6/8/10 | |
Material Inlet Pressure | ≥0.05Mpa | |
Production Capacity(Water through Capacity l/h) | ≈1400 | |
Power (Kw) | 2.2 | |
Voltage | 380V, 50HZ, 3 phase or customize | |
Whole Machine | Dimensions(mm) | 600×1000×1600 |
Weight (kg) | 490 | |
