Micro pressure biomass pellet steam burner

FOB Price

US$ 6,800 - 13,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other
Usage	Industrial	Structure	Fire Tube
Pressure	Low Pressure	Style	Vertical
Fuel	Other, wood pellet	Place of Origin	Henan, China
Brand Name	bidragon	Model Number	BVFS
Output	Steam	Dimension(LWH)	185010002200mm
Weight	1880KG	Certification	BV,SGS
After-sales Service Provided	Engineers available to service machinery overseas

pellet steam boiler
1. Double frequency controlling
2, Full automatic
3, Pressure can be controlled from 0.04Mpa-0.12Mpa
BV

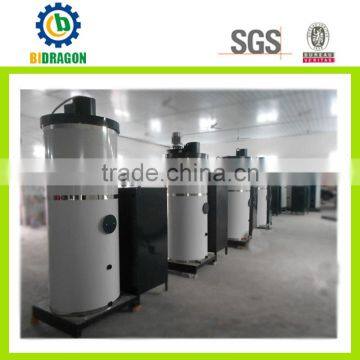

Micro pressure biomass pellet steam burner

Biomass Pellet Steam Burner Description

Advantage:

1, When storage water tank is lack of water, boiler is only in standby state, and buzzer alarms.

2, When boiler water level is very low or high, feed machine doesn’t work, and buzzer alarms.

3, When the body surface temperature reaches 150°C, the boiler stop running, and buzzer alarms.

4, If power is lack of phase and voltage, induced draft fan (feeder) stop, the converter will display the corresponding fault code.

5, If the storage bin connect with the boiler body loosely, boiler will stop running and buzzer alarms.

6, If power failure or induced draft fan fault, fire door open automatically.

7, When steam pressure reached 0.2 Mpa due to other reasons, relief valve open and release pressure automatically.

8, When the fuel in the bin reduces to the lower limit, sound- light alarm, but it will not affect other programs.

Model	lss0.05-0.1-M	lss0.2-0.1-M	lss0.3-0.1-M	lss0.5-0.1-M	lss1.0-0.1-M
Rated Evaporation(t/h)	0.05	0.2	0.3	0.5	1.0
Rated steam outlet pressure(Mpa)	0.1	0.1	0.1	0.1	0.1
Waste heat recovery unit highest temperature(°C)	85	85	85	85	85
Steam Outlet Temperature(°C)	119	119	119	119	119
Steam Outlet Caliber(")	1	1.5	1.5	2	2
Water Inlet Caliber(")	1	1	1	1.5	1.5
Drain out Caliber(")	2	2	2	2	2
Water Storage (L)	50	225	358	490	900
Pump power(kw)	0.18	0.37	0.37	0.37	0.75
Igniter power(kw)	2.2	2.2	2.2	2.2*2	2.2*4
Wind power system total power(kw)	0.5	0.9	1.2	2.2	3.7
Feed motor(w/k)	90/300	90/180	90/180	90/100	180/50
Converter(kw)	/	/	/	1500	3000
Biomass fuel maximum consumption(kg/h)	7	28	42	70	140
Fuel storage capacity(kg)	50	150	220	380	500
Installation size(mm)LWH	15008001700	185010001700	185010001950	185010002200	185015002800
Transportation Weight(kg)	450	950	1300	1880	29900
