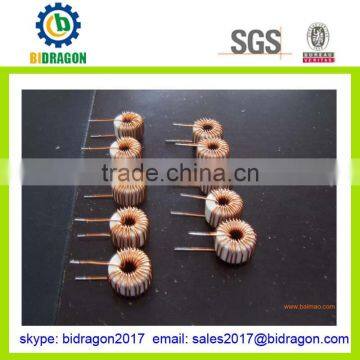

Toroidal Transformer for Various Applications

FOB Price

US$ 1 - 10 / Piece

1 Piece(Min. Order)

Port tianjin
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China	Brand Name	Bidragon
Model Number	BOD-800VA	Usage	Power
Phase	Single	Coil Structure	Toroidal
Coil Number	Autotransformer

Product Description

Specifications

Toroidal Transformer
1. Professional supplier
2. High quality
3. Best price

Toroidal Transformer

1. product description

Used by 0.27 mm, 0.30 mm high quality cold-rolled orientation silicon materials which is low iron loss and high magnetic, the advantages of our prod ucts are small size, low temperature, magnetic flux leakage small, installation easy

High efficient

It is product by high quality material and the type is compact. It can narrow the gap between the coil and the core. So the efficiency is above 90%.

Low magnetic flux leakage

The gap between core and coil is small and the coil is uniformly.

Low noise and low temperature

Due to the high quality materil and the coil is uniformly, the resistance loss and the fever is very low.

Application

Toroidal transformer is widely used in the area of the power transportation and the tranform of voltage and current. It is widely used in the power technology and electronic area. Such as autotransformer, isolation transformer and lighting transformer etc. It also has special application,such as mutual inductor. We can produce the transformer as the guests’ requirements.

Power	30VA-5KVA
Input voltage	Technical drawings
Frequency	47Hz-63Hz
Phase	Single-phase
Core shape	The annulus
Core structure	The annulus
Winding	Technical drawings
Insulation class	Class B
Dielectric	4kv/3mA/3S
Operating temperature	50°C
Shied	Optional
Terminal	Optional

2. Product material

Name	Specification	Features
Cold rolling orientation quality ferrosilicon	0.27mm or 0.30mm	Low iron loss High magnetic
Lacquer clad round copper wire	QZ-150,QZ-180	Anaerobic copper High strength Low loss
BOPET thin film	0.05mm-0.08mm	Reduction: 150°C in 30minutes
PV soft copper wire	Technical drawing	450V/750V

3. SIZE

Power/VA	Size		Weight/kg	Chasiss size	Gland	Screw
Power	H/mm	D/mm	Weight/kg	L/mm*W/mm	Mounting hole/mm	mm
20	32	70	0.5	80*80	6.5	M6
30	30	73	0.6	80*80	6.5	M6
50	30	80	0.85	90*90	6.5	M6
80	35	85	1.1	100*100	6.5	M6
100	40	90	1.32	100*100	8.5	M8
150	45	95	1.4	100*100	8.5	M8
200	50	105	2.4	110*110	8.5	M8
250	52	110	2.7	110*110	8.5	M8
300	55	110	2.9	110*110	8.5	M8
350	60	115	3.2	125*125	8.5	M8
400	65	120	3.5	125*125	8.5	M8
450	65	120	3.8	125*125	8.5	M8
500	68	120	4.2	125*125	8.5	M8
600	70	140	5.3	150*150	8.5	M8
700	70	147	5.6	150*150	8.5	M8
800	70	150	6.2	150*150	8.5	M8
1000	75	165	7.6	180*180	8.5	M8
1200	78	170	8.5	180*180	8.5	M8
1500	80	175	9.7	180*180	10.5	M10
1800	83	190	12.5	200*200	10.5	M10
2000	88	200	13.5	200*200	10.5	M10
2500	92	205	14.8	200*200	10.5	M10
3000	98	220	16.5	230*230	11.5	M10
5000	110	235	20.5	245*245	12.5	M10

FOR MORE INFORMATION PLEASE KINDLY CONTACT WITH MS.YOLAND, SKYPE; bidragon2017
