CD- Type Amorphous Core
- China main port
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | bidragon | |
| Model Number | Amorphous Core | Type | Other, Amorphous Core | |
| Composite | Ferrite Magnet | Shape | Cup Shape | |
| Application | Industrial Magnet |
Product Description
Specifications
CD- type amorphous core1.With high saturation magnetic induction
2.Core specification is complete
3.With low core loss

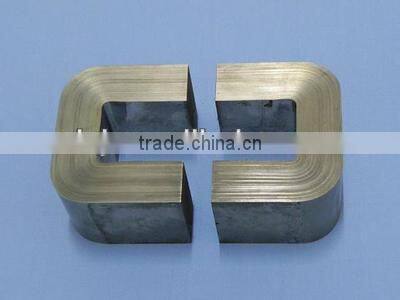

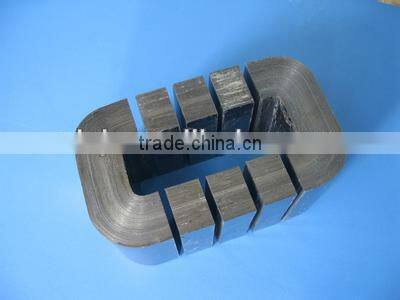

CD- type amorphous core
Applications
1.Output choke coil for SMPS
2.Choke coil for DC/DC converter
3.Normal mode choke coil
4.Choke coil for adapter and battery charger
5.PFC choke coil
Can produce according to customers’ specification.
Specifications and electric parameters
1) Specification
Grade | Core dimentions(mm) | The effective section cm2 | Mean core pathlength | Core weight(g) | |||
A | B | C | H | ||||
AI-50Ⅰ60301220 | 60 | 30 | 12 | 20 | 1.72 | 21.8 | 270 |
AI-50Ⅰ60302020 | 60 | 30 | 20 | 20 | 2.88 | 24.6 | 510 |
AI-50Ⅰ60362030 | 60 | 36 | 20 | 30 | 3.60 | 25.6 | 663 |
AI-50Ⅰ60403030 | 60 | 40 | 30 | 30 | 6.30 | 30.2 | 1370 |
AI-50Ⅰ76251520 | 76 | 25 | 15 | 20 | 2.16 | 24.9 | 387 |
AI-50Ⅰ80403030 | 80 | 40 | 30 | 30 | 6.30 | 35.8 | 1624 |
AI-50Ⅰ84352225 | 84 | 35 | 22 | 25 | 3.90 | 30.7 | 860 |
AI-50Ⅰ85622050 | 85 | 62 | 20 | 50 | 7.00 | 35.4 | 1784 |
AI-50Ⅰ88452530 | 88 | 45 | 26 | 30 | 5.46 | 34.8 | 1368 |
AI-50Ⅰ100322540 | 100 | 32 | 25 | 40 | 7.00 | 34.5 | 1740 |
AI-50Ⅰ130452630 | 130 | 45 | 25 | 30 | 5.25 | 42.2 | 1595 |
2) Technical parameters for winding wire inducter
Grade | Size of gap(mm) | AL±10%μH | Max AT(N×Idc) |
AI-50 | 2×0.5 | 0.38 | 600 |
AI-50 | 2×0.5 | 0.50 | 520 |
AI-50 | 2×1.0 | 0.40 | 1000 |
AI-50 | 2×1.0 | 0.70 | 800 |
AI-50 | 2×1.0 | 0.60 | 700 |
AI-50 | 2×2.0 | 0.42 | 1400 |
