Home > Products > New Products > portable concrete mixer JS 1500 twin shaft forced Self loading twin shafts 1.5m3

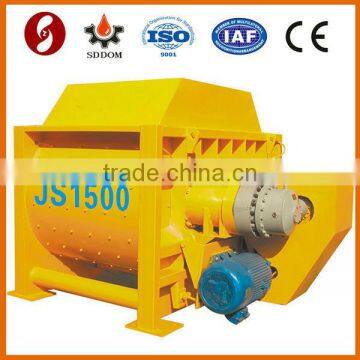

portable concrete mixer JS 1500 twin shaft forced Self loading twin shafts 1.5m3
- 20 Set / Sets per Month
- Qingdao
- T/T
You May Like
-
Factory offered 1500 liter concrete mixer
-
Four hoppers 10-16m3/h mobile Concrete batching plant,small concrete batching plant,concrete plant
-
Double batching hopper 10-16m3/h mobile Concrete batching plant,small concrete batching plant,concrete plant
-
DZ18-2 concrete laser screed for sale
-
The one manufacture of new type of mini mobile concrete batching plant
-
Concrete batching plant,MB1200 mobile concrete plant
Product Details
Condition | New | Place of Origin | Shandong, China | |
Brand Name | SZ | Model Number | JS1500 | |
Motor Power | 30kw*2 | Mixing Power | 37kw | |
Charging Capacity | 2400L | Reclaiming capacity | 1500L | |
Water Supply Mode | water pump | Working Cycle Period | 60s | |
Discharge Way | pneumatic discharging | Outline Dimension | 9700*3695*8460mm | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
portable concrete mixer JS 1500 twin shaft forced Self loading twin shafts 1.5m3
Technical parameter
Model | JS1500 |
Discharging volume | 1500L |
Charging volume | 2400L |
Max. aggregate size | 80/60mm |
Capacity | 75m3/h |
Mixing blades rotating-speed& Qty. | 25.5r/min, 2x10pcs |
Bucket lifting speed | 18m/min |
Mixing motor Model & Power | Y225M-4, 45KW |
Hoisting motor Model & Power | YEZ180L-4, 18.5kw |
Water pump Model & Power | IS80-65-125(II), 3kw |
Dimension | 9700*3695*8460 |
Total weight | 10000kg |
Discharging height | 3800mm |
Picture Details
Actual Mixer Blade and Simulated Working Pictures
Reduction Box for Twin Shaft
The System Introduction
1. The mixer is reasonably designed with short mixing time, low consumption, low noise and long service life
2. The mixing blade and lining board use wear-resisting-material. They have a long service life and they are convenient to dismantle and replace.
3. The air operated discharging is convenient and quick. There is a hopper,under the discharging gate, which is fit to the concrete mixing truck to make the dischargingquickly.
4. The shaft bearing is apart from the shaft sealing which has six measures to prevent leakage.
The sealing parts are specially managed and well manufactured with a long service life and reliable performance.
Taian Shizhe Trading Company established in 2011 is engaged inimport and export trading. It is the international trading department of Shandong DOM Machinery Equipment Co., Ltd.
We mainly conduct business including domestic and foreign trading, such as concrete mixing plant, concrete mixers, Chinese-foreign cooperative producing, and entrecote trading. Our manufacture mainly produces concrete batching plant, asphalt plant, brick production line and related equipments of construction. Concrete mixer, screw conveyor,cement silo and accessories have always been our hottest products for export. Besides, the small concrete tools such as concrete vibrator, concrete vibratory screed, tamping rammer, plate compactor, concrete cutter also belong to hot product. Besides, we purchase kinds of products in China for our customers.
After-sale Service
1.May enjoy the life-long service and technical consultation after you buy our products.
2.Training the operator for free.
3.We will dispatch one or two skilled healthy and competent technician to the job site for technical service on-site with a period of 14 days
4.Under the condition that foundation, water source, power source, aggregate, hosting equipment, auxiliary staff is ready. Engineers are available if you need.
5.Certain quantity stochastic tool will be provided while delivering goods.
6.Within 48 hours service will be available according to different regions after received the telephone.
7.The time of warranty is for a whole year
8.Promptly provides the fittings according to users’ demands, handles for the user consigns for shipment.
9.Provides the technology advisory service as necessary.
10.Please contact me when you have any problems with the plant.
Thanks for your patience.
Much more details,please contact me
