New Design Volumetric Manual Cement Planetary Concrete Mixer With Cheap Price

Brief Introduction

The MP Planetary electrical concrete mixer is designed according to Europe CE Standard. It improves the mixing efficiency compared with traditional type.

Features

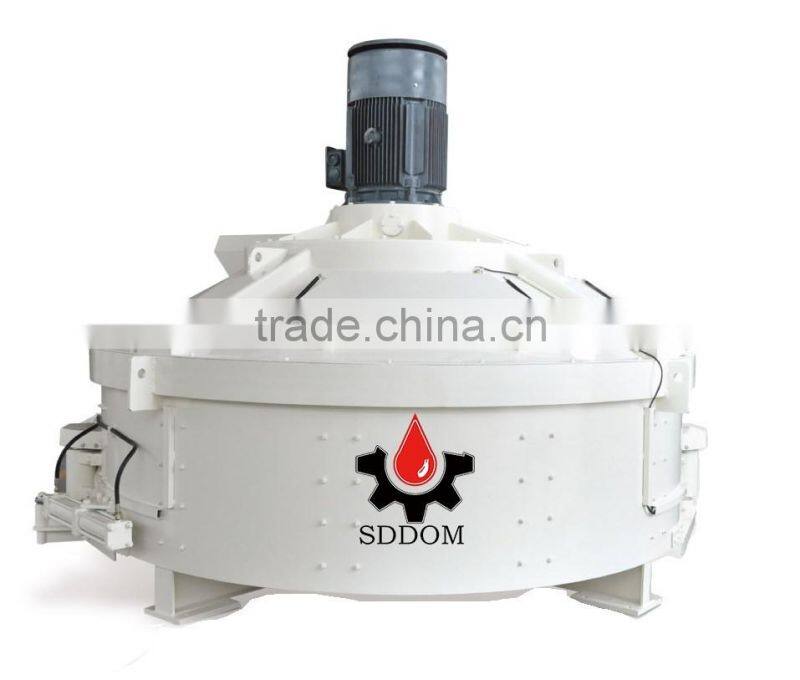

Introduction of MP Series Planetary Mixer

The mixers with vertical shafts allow the rapid mixing of all types of quality concrete (dry, semi-dry and plastic). The great versatility of the mixer enables it to be used not only in the production of concrete, but also in the mixing of materials for the production of glass, ceramics, refractory materials, etc.

The gearbox unit (patent technology), specially designed for a balanced distribution of power to the various mixing device, ensure a low-noise rotation without backlash even under severe working conditions. Compared with traditional gearbox, this unit takes less space, and the maintenance space of the mixer can enlarge 30%.

Equipped with a mechanical coupling and a hydraulic coupling (option), which can protect the transmission devices from overloads and impacts.

Ni-hard cast iron blades are more wearable. As an alternative, we also offer polyurethane blades for special requirements.

According to different materials, the liners and tiles can be cast-iron, HARDOX steel plate (Sweden original) or hard facing materials.

From optional model selection to customized mixer for special application situation, we also can offer a full range of technical support and maintenance services.

Technical Parameter

Model

Filling

Volume(L)

Feeding

Capacity(KG)

Compacted

Concrete(L)

Mixing Power

(KW)

Mixing Star*

MixingBlade

(Qty)

Weight

(T)

MP50

75

120

50

3

1*2

0.7

MP100

150

 240

100

5.5

1*2

1

MP250

375

600

250

11

1*2

1.8

MP330

525

790

330

15

1*2

2.2

MP500

750

1200

500

18.5

1*2

2.5

MP750

1125

1800

750

30

1*3

3.5

MP1000

1500

2400

1000

37

2*2

5.5

MP1500

2250

3600

1500

55

2*2

6.5

MP2000

3000

4800

2000

75

3*2

8.5

MP2500

3750

6000

2500

90

3*3

10.5

MP3000

4500

7200

3000

110

3*3

11

Excellent Mixing Performance

The rotated direction of mixing star is reversed with the revolution direction and each mixing star’s direction is also different. The circulation movement and convective movement make the material severely mixing

Observing Port

Observing port is set on the maintaining door to observe the mixing status in the mixer power state.

Discharing Device

The door can open in three different angles to satisfy different discharging rate

Mixing Device

Depending on the reasonable design of the mixing blades, it is more efficient than the traditional type of concrete mixers. It can save 15-20% time to finish the mixing under the same requirement and condition.

Spray Head

According to the requirement of different filed application, you can choose different way of water spray

High Pressure Cleaning System

Automatic high pressure cleaning system saves a lot of time on cleaning. Also, it has higher performance than traditional type.

Packing and Shipping
