Home > Products > Laser screed > YZ25-4 Concrete Laser Screed,Walk-behind Type Laser Screed,concrete Laser Screed for Sale

YZ25-4 Concrete Laser Screed,Walk-behind Type Laser Screed,concrete Laser Screed for Sale

FOB Price

US$ 30,000 - 85,000 / Set

1 Set(Min. Order)

Port any port of china
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Power Type	Electric
Place of Origin	Shandong, China	Brand Name	SDDOM
Dimension(LWH)	Concrete laser screed	Weight	165kg
Certification	CE ISO	Warranty	One Year
After-sales Service Provided	Engineers available to service machinery overseas	Model Number	YZ
Power(W)	3KW

Product Description

YZ25-4 Concrete laser screed,Walk-behind type laser screed,concrete laser screed for sale

1.Introduction:

Laser screed is made of machine body and screed system. The screed system is the main part, t includes: scraper, vibrating screed, vibrating motor, control system, control panel and laser receiver.

When it works, laser transmitter transmit rotate laser, after the laser receiver receive the signal, laser measuring and controlling system will analyze it and feedback it to computer control system who can control the left and right linear actuators to adjust the height of the scraper, so that it can make sure of the leveling accuracy.

Walk-behind type

Ride-on type

2.Technical Data

A.DZ20-2

Type	Walk behind	Engine Model	HONDA GX200 Gasoline
Drive Type	Motor from Germany	Engine Power	3.2kw
Working Width	2m	Voltage	220V,50Hz
Working Productivity	150-300m²/hour	Fuel Consumption	1.4L---1.6L/H
Dimension(LWH)	2850x2230x1160	Total weight	230kg

B.DZ25-2

Type	Walk behind	Engine Model	HONDA GX200 Gasoline
Drive Type	Motor from Germany	Engine Power	3.2kw
Working Width	2.5m	Voltage	220v(50Hz)
Working Productivity	200-400m²/hour	Fuel Consumption	1.2L---1.5L/H
Dimension(LWH)	3210x2730x1160	Total weight	255kg

C.DZ30-2

Type	Walk behind	Engine Model	HONDA GX340 Gasoline
Drive Type	Motor from Germany	Engine Power	5.5kw
Working Width	3000mm	Voltage	220V(50Hz)
Working Productivity	300-500m²/hour	Fuel Consumption	2.0L---2.3 L/H
Dimension(LWH)	3210x3230x1160	Total weight	330kg

D.YZ25-4

(Gasoline Engine)

Type	Ride-on	Engine Model	KOHLER CH730-2 Gasoline
Drive Type	Hydraulic Drive	Engine Power	17.5kw
Working Width	2500mm	Voltage	12v
Working Productivity	400-600m²/hour	Fuel Consumption	2.5L---3.2L/H
Dimension(LWH)	3200x2900x1700	Total weight	1260kg

(Diesel Engine)

Type	Ride-on	Engine Model	KOHLER KD477-2 Diesel
Drive Type	Hydraulic Drive	Engine Power	15.5kw
Working Width	2500mm	Voltage	12v
Working Productivity	400m-600m²/hour	Fuel Consumption	2.5L---3.2L/H
Dimension(LWH)	3200x2900x1700	Total weight	1450kg

3.Advantage

A. High quality

a.our machine working width has 2m,2.5m and 3m

b.The laser transmitter brand is Leica from Switzerland.it is the best brand in this industry

c.the walking motor is from Germany

d.the electric elements are all Mitsubishi from Japan

e.the gasoline is Honda brand from Japan

f.the wheels are solid wheels

g.the plug are air plug.

h.The screed is independently suspended.It has automatic induction system,can always keep screed to be flat.

i.Can use gasoline or electric,2 knds power source.

j.High accurancy,can reach 300 in 3m.

B. High efficient

It is suitable for large area.Every working team need 8 workers. They can finished 300m2 /h.

C. Reduce cost

It has high degree of automation. So it can reduce the cost of plywood, steel frame and workers. Also with high quality of the finished surface, the cost of maintenance is very little.

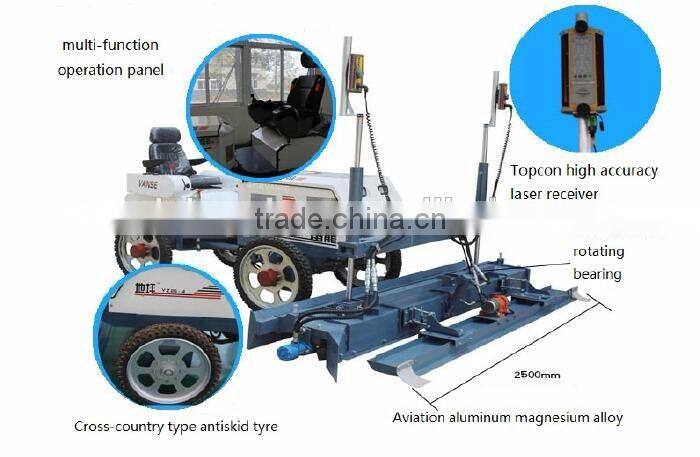

4.Deatail of the screed

Laser receiver and transmitter

Packaging & Shipping

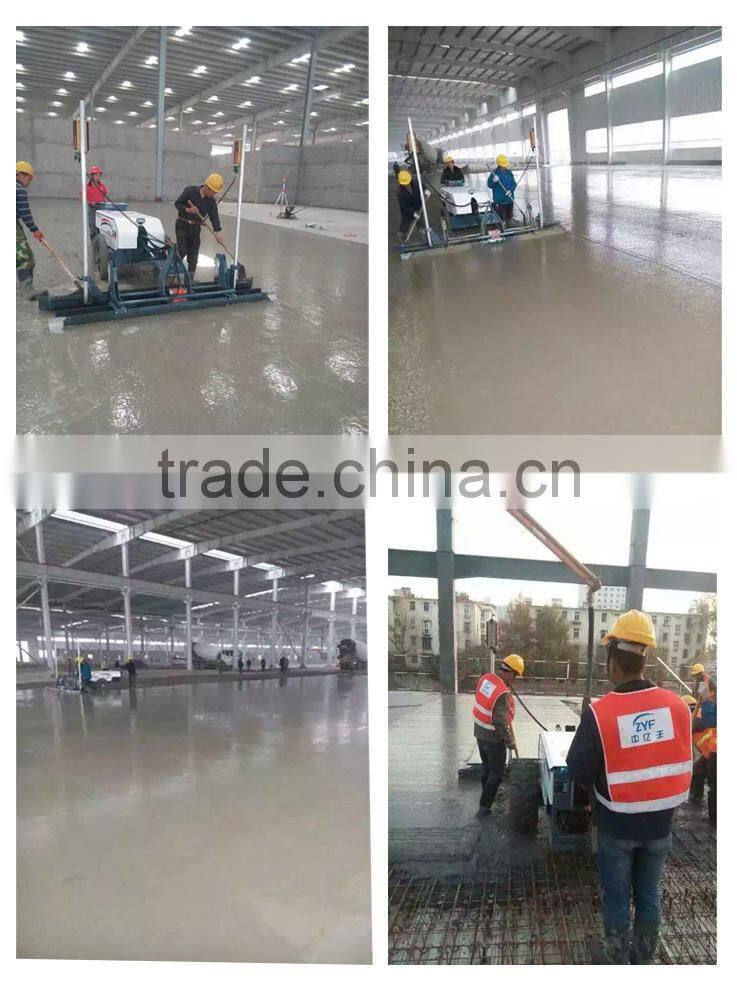

Customers all over the world:

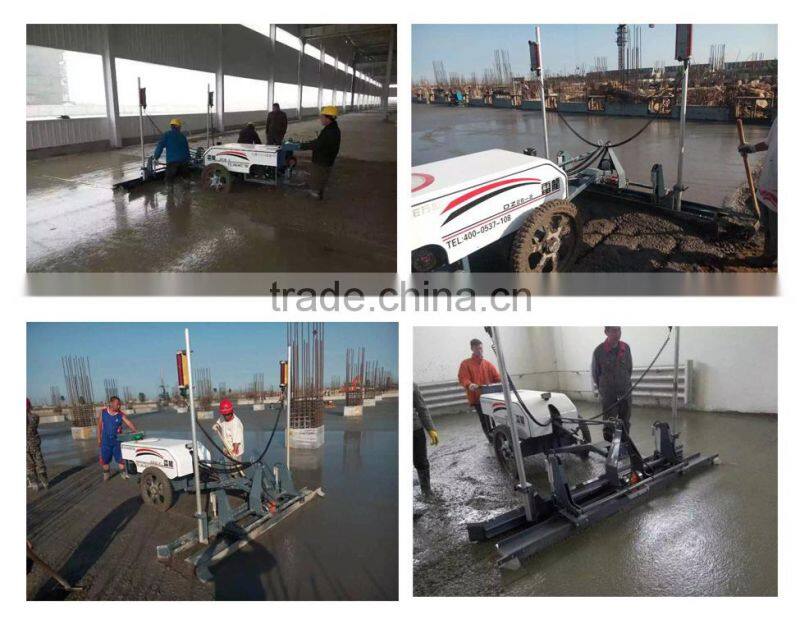

Customer test:
