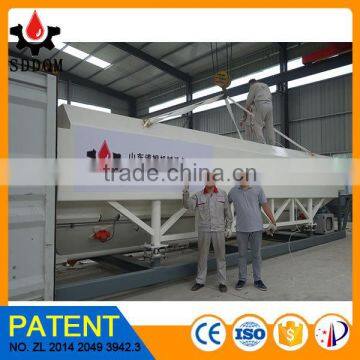

2016 manufacturer supplyhorizontal cement silo for sale

This horizontal frame type cement silo include safety valve, butterfly valve, a cement auger, vibrator, pneumatic arch-broken system, 4 scales with display and separately control box and electric control cabin.

Horizontal hopper in fully welded construction. Complete silo system assembled on a common flat rack hook container. Alternatively the silo can be delivered mounted on a bogie trailer or a flat rack trailer. Designed for easy flowing materials such as Portland cement with a bulk density of 1. 3 tons/m3.

The cement silo is delivered complete with cement discharge, screw conveyor for transport of cement at the bottom of the silo, cement injection, grids for cement inlet, cutters for big bags, top hatches, electric external motor vibrators, self cleaning dust filter, standard silo equipment, lifting devices for easy transportation and control unit.

Model

Horizontal type

Volume

CS20F

CS38F

Electric power

7.5+5.5Kw(screw conveyor +cement auger)

7.5+7.5Kw(screw conveyor +cement auger)

Cement auger

Φ219*5500mm

Φ219*7000mm

Capacity

15m3,20t

29m3,38t

Dust collector

WAM Air-jet type

Gearbox ratio

1440/290Rpm

1440/290Rpm

Weight

4.0ton

5.7 ton

screw conveyor

capacity

45t /h

Dimensions(W*H*L)

2.3*2.4*7.3

2.2*2.4*9.6m

Container

20HQ

40HQ
