Dust Collector Filter,small Dust Collector
- QINGDAO
- T/T
You May Like
Product Details
| Condition | New | Type | Other, dust catcher | |
| Efficiency | 99.9% | Minimum Particle Size | 40um | |
| Place of Origin | Shandong, China | Brand Name | DOM | |
| Model Number | SV | Dimension(L*W*H) | Diameter 800mm | |
| Weight | 110kg | Certification | CE | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
dust collector filter,small dust collector
TechnicalFeatures • Maintenance height = 1,080mm • High filtration efficiency low dust emission level • Maintenance easy • No tools required for filtering element removal. Complete replacement of filter media by only one person within a few minutes |
Technical data
| Product model | SV-V2 | SV-J1 |
| Filtration area | 24m2 | 24m2 |
| Wind capacity | 1500m3/h | 1500m3/h |
| Filtration efficiency | 99.9% | 99.9% |
| Noise | under 85dB | under 75dB |
| Cleaning method | Vibration cleaning intermittent working way | Pulse air-jet cleaning continuous working |
| Compressed air | - | 4-6 bar |
| Control panel power | 380V/50Hz | 220V/50Hz |
| Structure | Stainless steel | Stainless steel |
| Connecting way | Flange connection | Flange connection |
1.SV-V2: Vibrating Type
| Vibrating type is used on top silo.Dust separated from the air flow by filter elements drops back into the silo after vibration. |
2.SV-J2:Air-Jet Type
Dust separated from the air flow by filter elements drops back into the silo after an integrated automatic reverse air jet cleaning system inside the weather protection cover has removed it from the filter elements. The air jet cleaning system is integrated in the hinged weather protection cover. |
3. Dust collector with blower and dust collector hopper:
| Dust separated from the air flow by filter elements drops back into the dust collector hopper after an integrated automatic reverse air jet cleaning system inside the weather protection cover has removed it from the filter elements. The fan system provide negative pressure which help to keep air filtration more efficient. |

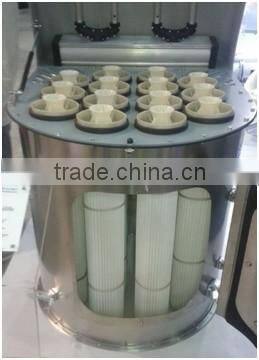

4.Filter inside
Filter inside is folded PET filter.
Thickness of the filter is only 0.2mm,easy to clean and have long working life.
