Hot Dipped Galvanizd Used Grain Feed Stores Silos for Sale

                                                         grain storage steel silos for grain storage

Features of hot dipped galvanized silo

 Feed stores  features as follows:

1.Steel sheet use high quality galvanized sheet,all parts are standard parts, Strictly follow the relevant national standards of silo design,manufacture and installation.

2. Easy installation, low investment

3. Silo height,diameter can be in a wide range of choice,the two position space of two silos can be less than 80cm,less land occupation,well-adapted,the maximum can up to 15000tons/silo,

4,In normal use,if the grain in the warehouse temperature rises o the critical point due to the higher water content ,the temperature and monitoring system will sound and light alarm in time and tell you there is danger in some parts of grain and should be ventilation and cooling

5. The silo diameter from 2.7m-32m . The assembly steel silo widely used in grain and oil,Chemical,brewing,medicine,food ,cement ,coal and other industries.

A general idea about the hot diopped galvanized silo  for your reference

feed stores  specification.

A detail used grain silos for sale  introduction for your reference.

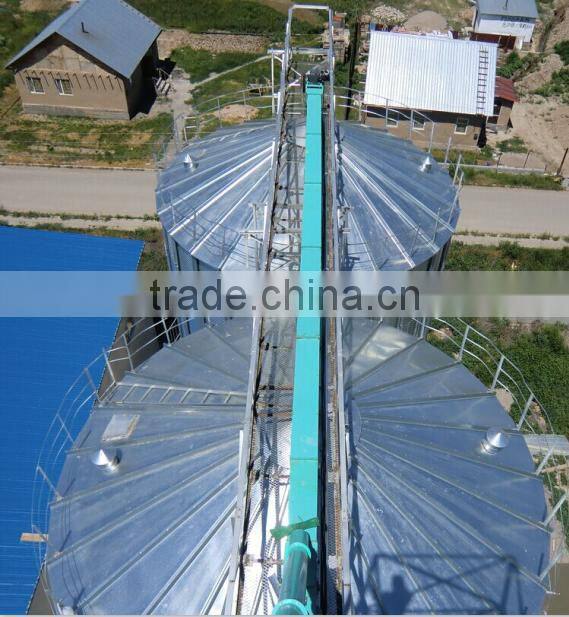

hot dipped galvanized silo  top

The silo top adopts umbrella frame and the frame material is made of C model straight carbon steel.The ceiling is made of galvanized steel tile plates.The silo top served with natural ventilation windows,manhole,ladder,safety guards

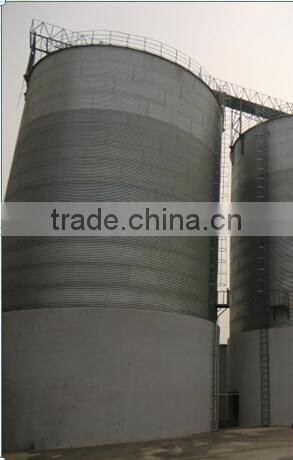

 feed stores body

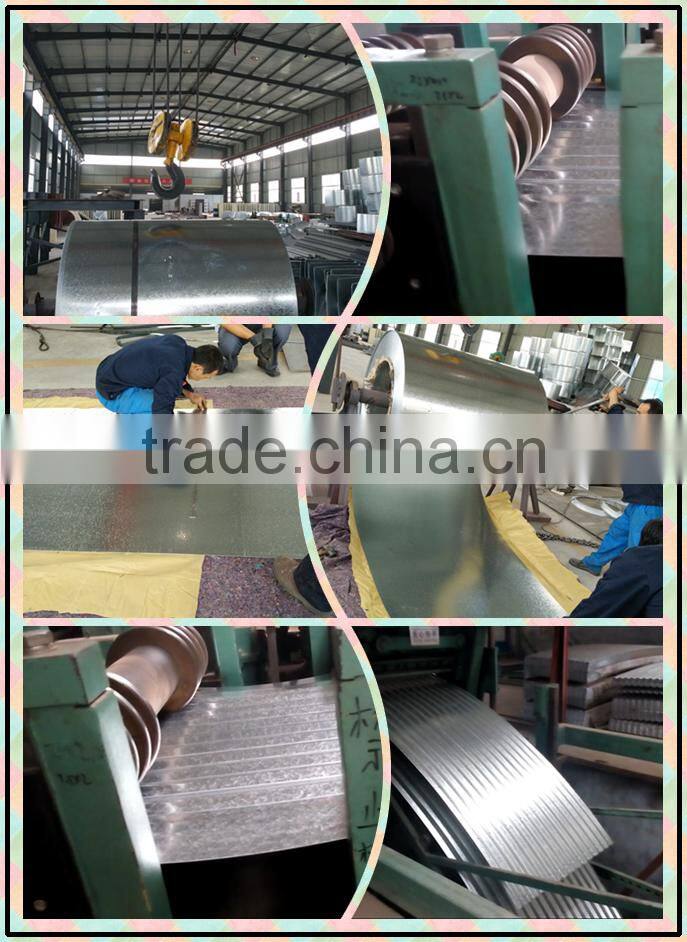

1)made of high quality hot-dip galvanizing steel sheet corrugated by special equipments

2)silo body sheets are connected by high yeild bolts, the thickness of corrugated steel silo  sheet is designed according to the constant strength theory.

3)There are stiffeners fixed on the body ,which is used to bear the vertical friction force and support the storage silo body;The bolts and nuts are fixed with spherical waterproof washers.

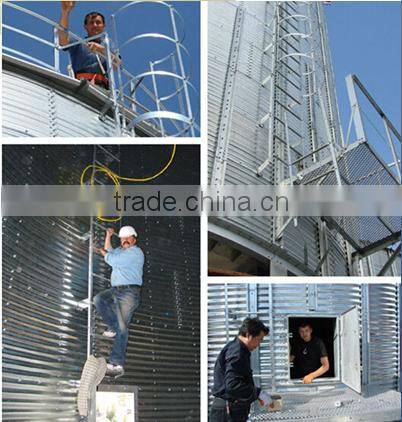

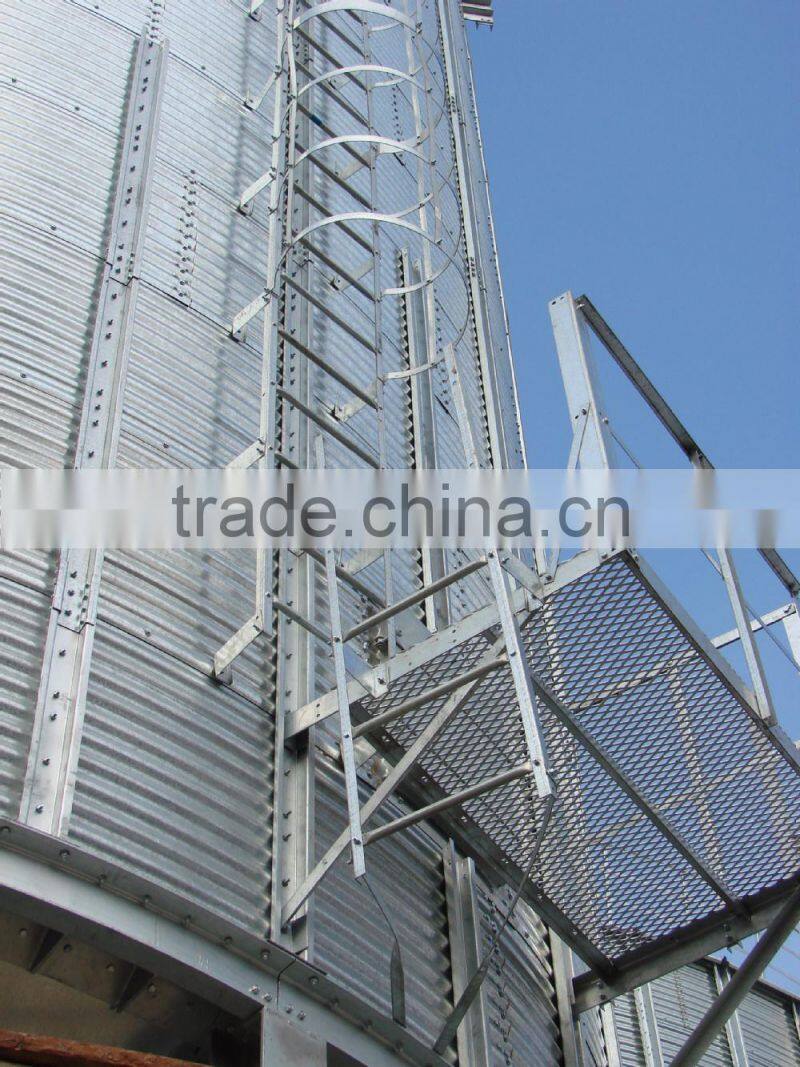

4)There are Aviation special waterproof rubber strip between the storage silo sheets. Galvanized grain silo  is equipped with round door, inside and outside ladder, ladder protecting wire net and ladder platform.

5)Further more , from top to the bottom, thickness of stiffeners shall get thicker and thicker from top to the bottom ,thickness of molded steel sheets on each rings shall also become thicker.

 hot dipped galvanized silo bottom

Steel cone base and cement cone/flat base

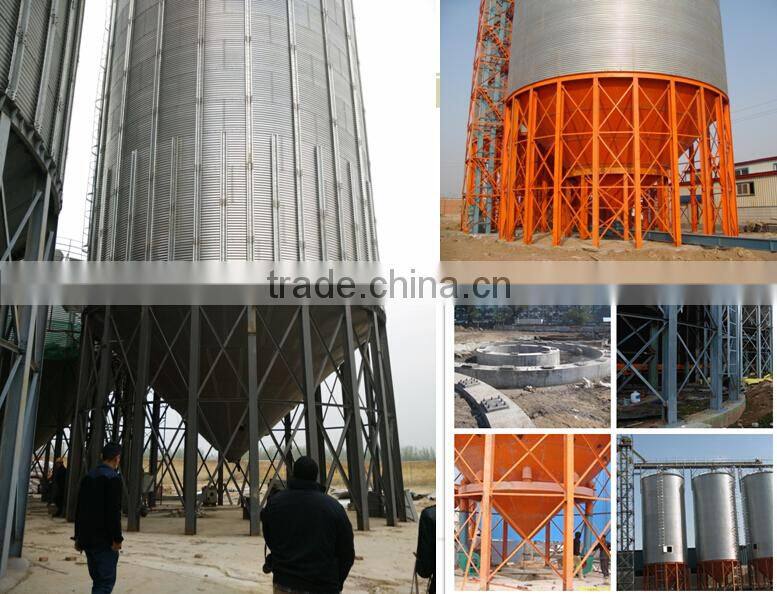

1.Steel cone base:when the silo capacity is below 800t and the diameter is below 8.5m,its base can make into setel cone base.steel cone base is composed of upright columns,annular girder,cone plates,tie pieces etc.the upright columns are made of national standard I-shaped steel and I-shaped steel is cone of the most widely used steel types in steel structure design and manufacturing.It has good structure stability and reliability.Annular girder is shaped by channel steel and it has the function of supporting silo body,connecting columns and base plates.The cone base plates are completely precast.The connection screw blts are GB8.8 grade standard parts.All these make installation easy and convenient,and after installation the base is really good-looking,endurable,and reliable.

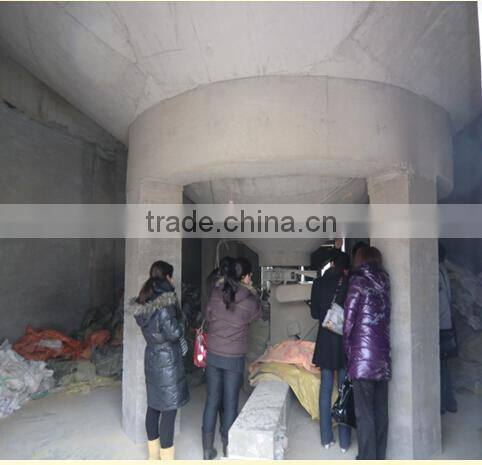

2.Cement cone/flat base:When the silo capacity is compaatively big and its diameter is below 12m.Its base is generally made into cement cone base.Cement cone base is an inverted cone hoppoer cast into frame with cement and concrete.It makes unloading stuff automatically.When the silo diameter is more than 12m,because the cone base height is too big,its base generaly made into half-cone base or plat base.Half-cone base can’t completely unload the stuff.Flat base silo needs to unload stuff at multi-parts or equipped with a spiral silo cleaner.Cement cone base has a mediate construction price,but has a long construction period.

The choise of base type should be accorded to the geological condition.raw material price, construction level ,workers salary etc of the customer’s location and finally choose a base type with reasonable cost performance.

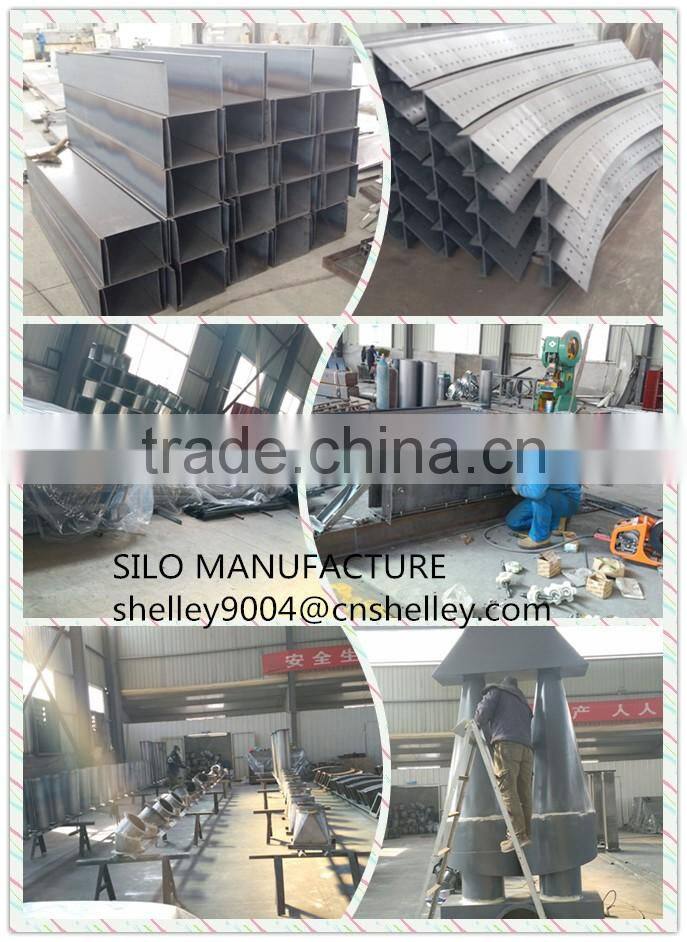

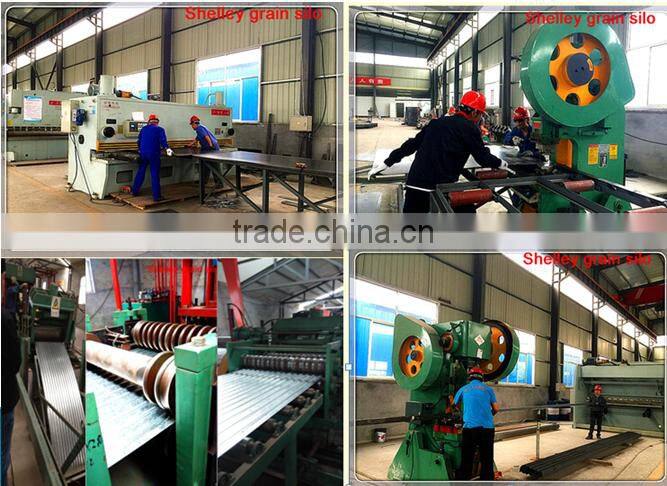

used grain silos for sale  manufacture in our factory.

Taian shelley engineering co.,ltd is a large scale manufacture of grain barley silo system.we have modern production equipments and strict management system.

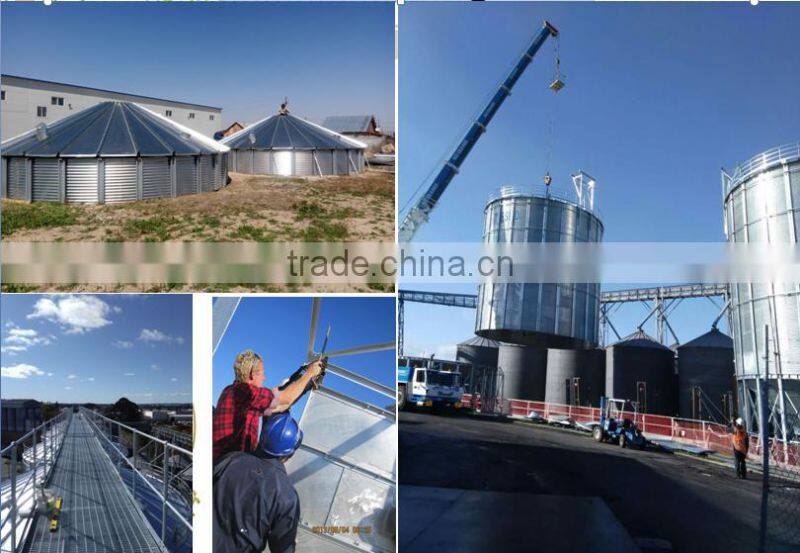

feed stores installation overseas

Welcome you visit us!!
