Home > Products > HZS Series concrete batching plant > HZS25 professional concrete batching plant for sale

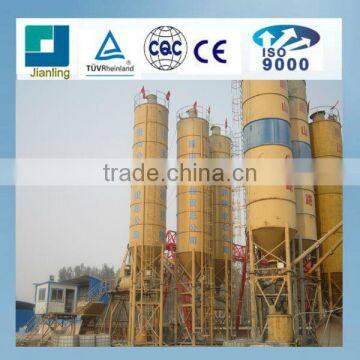

HZS25 professional concrete batching plant for sale
- QINGDAO
- T/T Credit Card
You May Like
-
HZS50 professional architectural concrete batch plant
-
HZS75 concrete batching plant for sale mix concrete
-
concrete mixing station HZS25 for sale
-
HZS25 concrete batching plant concrete mixer plant for sale
-
HZS75 Factory Suppy Cheap Ready-mixed Concrete Batching Plant
-
HZS40 Factory Supply Low Price Cement Batching Plant
Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Shandong, China | Brand Name | JIANLING | |
| Model Number | HZS25 | Power(W) | 18.5kw | |
| Certification | CE TUV | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
HZS50 concrete batching plant
Features of concrete batching plant
1. HZS50 is a large-scale concrete mixing equipment, combining material storage, measurement and mixing, with high output.
Can mix all kinds of concrete, especially hard concrete
2. Applicable for projects of architectures, water and electricity, highways, ports, docks and bridges in medium scale as well as large-and-medium scale preformed unit plants and concrete manufacturing plants.
3. Microcomputer control and electronic scale weighing guarantee high measuring accuracy and small error.
4. Functions include screen display, batching storage, automatic gap compensation and manual system which makes manual and automatic control available in mixing process.
Main Technical Parameters of concrete batching plant
Model | HZS25 | HZS40 | HZS50 | HZS75 | |
Theoretical Output Rate (m3/h) | 25 | 40 | 50 | 75 | |
Mixer | Model | JS500 | JS750 | JS1000 | JS1500 |
Power(kw) | 18.5 | 30 | 18.5×2 | 30×2 | |
Discharging Capacity | 0.5 | 0.75 | 1 | 1.5 | |
Production Cycle(s) | 72 | 72 | 72 | 72 | |
Capacity of Aggregate Storage Bin m3 | 3×4 | 3×4.5 | 3×8 | 3×8 | |
Measuring Accuracy % | Aggregate | ±2 | ±2 | ±2 | ±2 |
Cement | ±1 | ±1 | ±1 | ±1 | |
Water | ±1 | ±1 | ±1 | ±1 | |
Additive | ±1 | ±1 | ±1 | ±1 | |
Coal Ash | ±1 | ±1 | ±1 | ±1 | |
Matching Cement Bin | SNC50 | SNC100 | SNC100 | SNC100 | |
Matching Cement Screw Conveyor | LSJ40 | LSJ40 | LSJ40 | LSJ80 | |
Matching Coal Ash | SNC50 | SNC100 | SNC100 | SNC100 | |
Matching Coal Ash Screw Conveyor | LSJ40 | LSJ40 | LSJ40 | LSJ40 | |
Discharge Height( m) | 3.8 | 3.8 | 3.8 | 3.8 | |
Technical Parameter of Matched Cement Silo/Bin:
Model | Tanker Diameter | Tanker Height | Tanker Total Height | Matched Mixer | Matched Screw Conveyor |
SNC80 | 3m | 9m | 15.6m | JS750 | 219/273 |
SNC100 | 3m | 11.4m | 18m | JS1000/2000 | 219/273 |
SNC150 | 3.3m | 23.5m | 29m | JS1500 | 273/325 |
SNC200 | 4.5m | 18.6m | 25.2m | JS2000/3000 | 325 |
Technical Parameter of Matched Screw Conveyor:
Model | Output Rate | Speed of Screw Shaft | Motor Power | Rotating Speed of Motor | Diameter | Screw Pitch | Conveying Length |
LSJ20 | 20t/h | 204rpm | 2.2-5.5kw | 1440rpm | 168mm | 112-150mm | 3-13m |
LSJ40 | 40t/h | 204rpm | 5.5-11kw | 1440rpm | 219mm | 133-200mm | 4-12m |
LSJ80 | 80t/h | 204rpm | 11-18.5kw | 1440rpm | 273mm | 166-250mm | 4-12m |
LSJ120 | 120t/h | 143rpm | 15-22kw | 1440rpm | 325mm | 200-300mm | 6-11m |
We also supply concrete mixer, concrete batching/mixing plant, Concrete Mixing Station, Concrete batching machine, screw conveyor, cement silo.
if you are interested in our products, welcome to enquire.
