Home > Products > HZS Series concrete batching plant > Good Quality Portable Concrete Batching Plant for SaleHZS75
Good Quality Portable Concrete Batching Plant for SaleHZS75
- Qingdao
- T/T Credit Card
You May Like
-
2015 New Concrete Batching Plant HZS40, Concrete Mixer HZS40
-
2015New Concrete Batching Plant HZS40, Concrete Mixer
-
50m3/h Fixed Skip Type Low Cost Concrete Batching Plant
-
Mini Gasdynamic HZS75 Concrete Batching Plant for Sale
-
New Product,concrete Batching Plant HZS50 for Sale,with Low Cost
-
HZS25 Concrete Batching Plant HZS25 ,Concrete BatchPlant,for Sale,
Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Shandong, China | Brand Name | JIANLING | |
| Model Number | HZS75 | Power(W) | 60kw | |
| Certification | TUV ISO CE | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

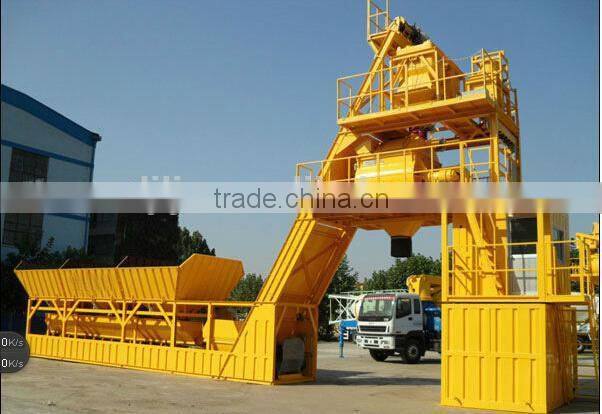

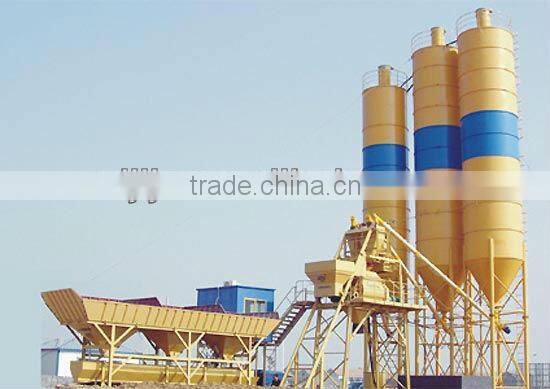

HZS75 mini concrete batching plant
Features of mini concrete batching plant:
1. The concrete batching plant is a large-scale concrete mixing equipment, combining material storage, measurement and mixing, with high output.
The equipment, which adopts forced mixer with double horizontal shafts as its matching principal machine with 3.8m concrete unloading height, can mix all kinds of concrete, especially hard concrete
2. Applicable for projects of architectures, water and electricity, highways, ports, docks and bridges in medium scale as well as large-and-medium scale preformed unit plants and concrete manufacturing plants.
3. Microcomputer control and electronic scale weighing guarantee high measuring accuracy and small error.
4. Functions include screen display, batching storage, automatic gap compensation and manual system which makes manual and automatic control available in mixing process.
In addition, the equipment is equipped with printing system and can be installed with monitoring system according to user demand to realize concentrated control and integral management of the entire equipment.
Main Technical Parameters of mini concrete batching plant:
Model | HZS25 | HZS40 | HZS50 | HZS75 | |
Theoretical Output Rate (m3/h) | 25 | 40 | 50 | 75 | |
Mixer | Model | JS500 | JS750 | JS1000 | JS1500 |
Power(kw) | 18.5 | 30 | 18.5×2 | 30×2 | |
Discharging Capacity | 0.5 | 0.75 | 1 | 1.5 | |
Production Cycle(s) | 72 | 72 | 72 | 72 | |
Capacity of Aggregate Storage Bin (m3 | 3×4 | 3×4.5 | 3×8 | 3×8 | |
Measuring Accuracy % | Aggregate | ±2 | ±2 | ±2 | ±2 |
Cement | ±1 | ±1 | ±1 | ±1 | |
Water | ±1 | ±1 | ±1 | ±1 | |
Additive | ±1 | ±1 | ±1 | ±1 | |
Coal Ash | ±1 | ±1 | ±1 | ±1 | |
Matching Cement Bin | SNC50 | SNC100 | SNC100 | SNC100 | |
Matching Cement Screw Conveyor | LSJ40 | LSJ40 | LSJ40 | LSJ80 | |
Matching Coal Ash | SNC50 | SNC100 | SNC100 | SNC100 | |
Matching Coal Ash Screw Conveyor | LSJ40 | LSJ40 | LSJ40 | LSJ40 | |
Discharge Height( m) | 3.8 | 3.8 | 3.8 | 3.8 | |
*We can customize according to your requirements, welcome to enquire.
Technical Parameter of Matched Cement Silo/Bin:
Model | Tanker Diameter | Tanker Height | Tanker Total Height | Matched Mixer | Matched Screw Conveyor |
SNC30 | 3m | 4.8m | 11.4m |
|
|
SNC50 | 3m | 5.4m | 12m | JS500 | 219 |
SNC80 | 3m | 9m | 15.6m | JS750 | 219/273 |
SNC100 | 3m | 11.4m | 18m | JS1000/2000 | 219/273 |
SNC150 | 3.3m | 23.5m | 29m | JS1500 | 273/325 |
SNC200 | 4.5m | 18.6m | 25.2m | JS2000/3000 | 325 |
Technical Parameter of Matched Screw Conveyor:
Model | Output Rate | Speed of Screw Shaft | Motor Power | Rotating Speed of Motor | Diameter | Screw Pitch | Conveying Length |
LSJ20 | 20t/h | 204rpm | 2.2-5.5kw | 1440rpm | 168mm | 112-150mm | 3-13m |
LSJ40 | 40t/h | 204rpm | 5.5-11kw | 1440rpm | 219mm | 133-200mm | 4-12m |
LSJ80 | 80t/h | 204rpm | 11-18.5kw | 1440rpm | 273mm | 166-250mm | 4-12m |
LSJ120 | 120t/h | 143rpm | 15-22kw | 1440rpm | 325mm | 200-300mm | 6-11m |
Our Advantages:
1. Trade directly with factory who has over 20 years' history.
2. Professional team.
Perfect quality.
Perfect service idea.
3. Competitive price.
4. Best manufacturer in jinan China.
5. We accept all kinds of payment & trade terms.
6. with advanced technology and prompt service, we build long business with world customers, such as Canada,Poland,Russia,Kazakhstan, Azerbaijan ,
Canada,Poland,Russia,Kazakhstan, Azerbaijan, Mongolia, Saudi Arabia, UAE, Yemen, Algeria, Malaysia, Indonesia, Philippines. Etc.we have good experience in servicing customers abroad.
Complete after-sale service system
1.Warranty:1 year.
2.Eengineer is available to service abroad.
2.In the overall process,provide installation instruction and debugging for customers and train operating staff free of charge.
3.Techincal assistance is avaible in 24 hours.
We also supply concrete batching/mixing plant, Concrete Mixing Station, Concrete batching machine, screw conveyor, cement silo, if you are interested in our products, please do not hesitate to contact us, we will offer the best quality and the most competitive price to you, thanks.
_________________________________________________
Shandong Jianling Machinery Co., Ltd.
has more than 25 years of production experience. The Company seeks survival with quality and promotes development with science and technology. The Company has developed successively a wide range of concrete machinery and road construction machinery since it’s establishment and now it is one of the Chinese enterprises with complete types, advanced technology and strong capacity in producing complete sets of concrete batching, mixing and conveying machinery and road construction machinery.

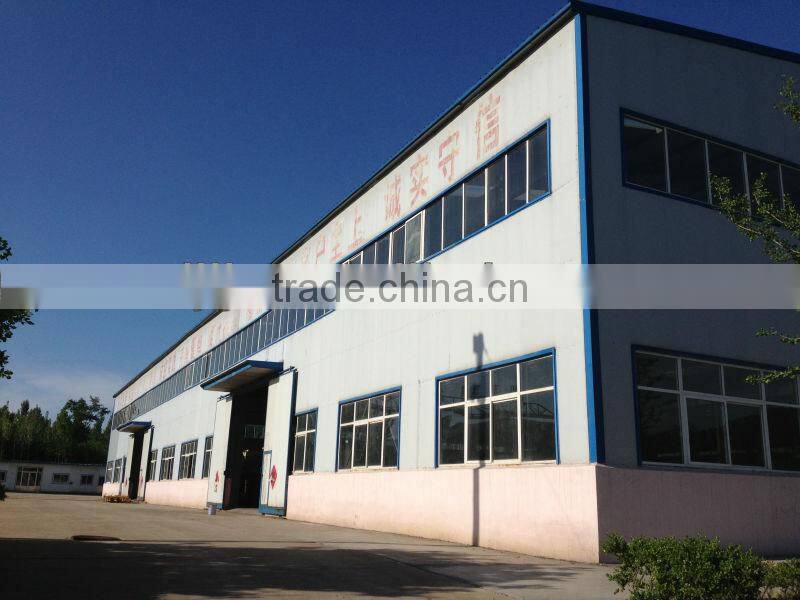

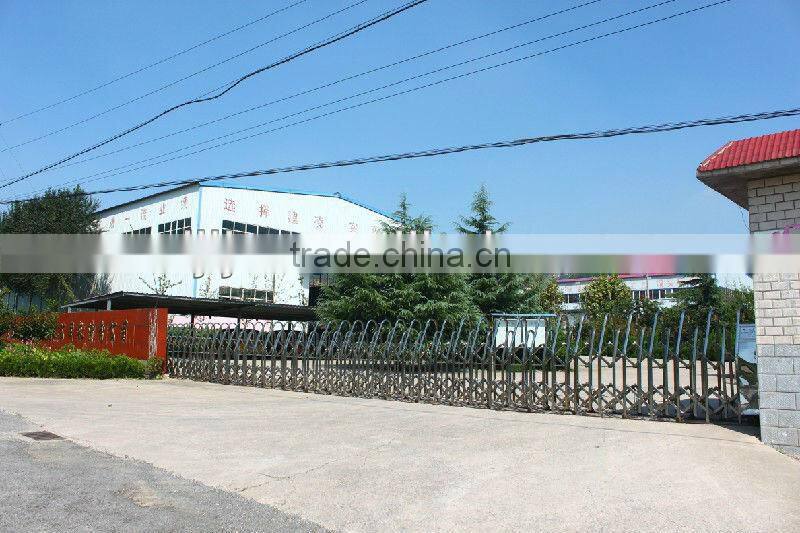

Factory:
