Marine Rubber Fender

Specifications

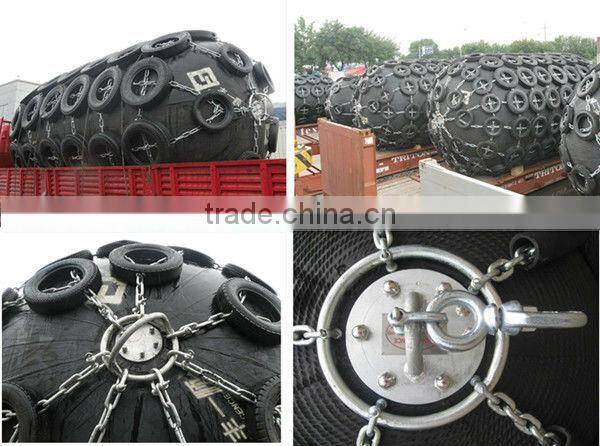

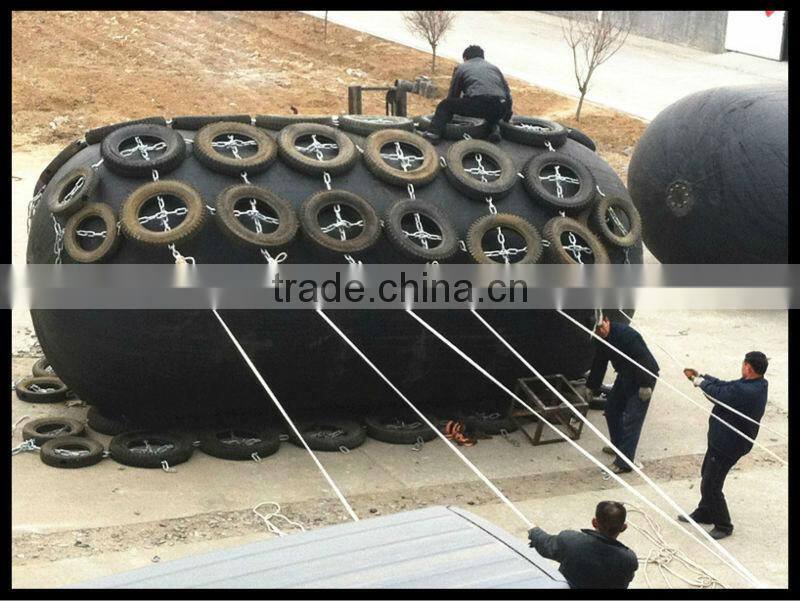

Marine Rubber Fender

1.Made by twining with one thread, it uses compressed air as buffer medium which can absorb the energy of collisions, it has the advantage of absorbing large capacity of impact energy, low pressure in unit area, high impact fatigue performance,easy instanllation and long life.

2.Produce according to:ISO 17357

3.Three type: tyre net type, rubber net type, rope net type,

4.Initial air pressure 0.05 Mpa, reaction load R and energy absorption in 60% ± 5 deflection.

5.inflatable fenders is a leading anticollision device for marine application in the world today. This compressed air rubber fender is used as a protective medium. Therefore, pneumatic rubber fenders serves as a protective medium against collision when ship-to-ship contact (STS) and ship-to-berthing (STB).

6.inflatable fenders has the advantages of massive energy absorption with low unit surface pressure acted upon the ship.

So inflatable fenders has become an ideal ship protection medium used extensively by large tankers, LPG vessels, ocean,platforms, large docks, harbor and wharfs.

Note about applying inflatable rubber fender

1.Frenquently check whether the rubber fender's spheroid is damaged and whether the pressure is normal ,and the valve core must be replaced every six months.

2.The steel wire should wrap the rubber pipe ,when tying steel wire to pneumatic rubber fender in case the the fender is stabbed .

3. The surace or subject next to the pneumatic rubber fender cant be hard and sharp-point in case the fender is stabbed .

4. The accessories and jips nut cant be loose when testing the internal pressure .

5. When applying the pneumatic rubber fender ,the rope net should be reliable ,the steel wire used for hanging metal parts and the hook link cant be tied in disorder .

Storage of Pneumatic rubber fender

1. When not using for a long time ,wash the fender surface ,dry up and fill in sufficient right amount of compressed air to lay in a cool ,dry and well-ventilated place .

2. The storage place of pneumatic rubber fender should be far away from heat source .

3. Try to keep fender away from acid ,alkali,grease and organic solvents.

4. When not applying the fender ,the pneumatic rubber fender cant be piled up and heavy itiems cant be piled on the fender .
