Pneumatic Marine Fenders Used for Ship,dock,boat Marine Spatborden

Specifications

FLORESCENCE PNEUMATIC FENDERS --- On-Time, On-Budget&On-Spec

The Florecence basic body construction of pneumatic fenderconsist of an out rubber, synthetic-tire-

cord layer for reinforcement and an inner rubber. All of these werevulcanized firmly in the mould

in an autoclave.

Our Unique Selling Points:

1) All rubber fenders conform to the ISO 17357-2002 demands .

2) Different sizes of fender stocks available, quick delivery.

3) Good quality control from the source of manufacture ---raw material

(high quality natural rubber imported from Thailand)

4) Door to door install & repair service

5) 20 years' experience in this area.

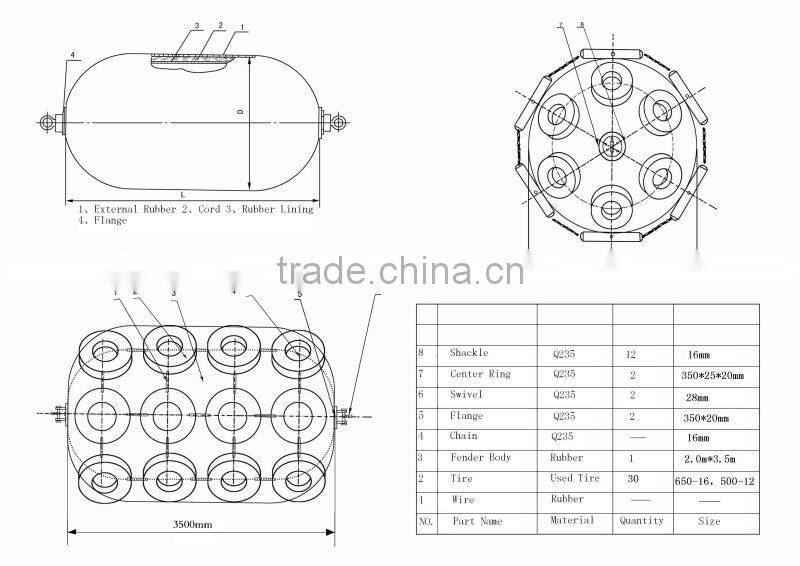

Detailed structure of Florescence pneumatic fenders

(1) Outer rubber

The Out rubber layer that covers the outside of the fender is designed to protect the cord layers andinner

rubber from abrasion and other external forces.

This rubber compound shall have sufficient tensile and tear resistance strength to withstandanticipated

weather conditions and sever usage. This rubber satisfies the values specified in Table 3of ISO-17357:2000.

The color of out rubber is black and thickness is not less than5mm.

(2) Reinforcement synthetic cord layers or Canvas fabric cord layer

The reinforcement synthetic cord layer is designed as per the requirements of Clause A3. of ISO17357-2002.

(3) Inner rubber

This inner rubber layer seals the air inside.

This rubber satisfies the requirements satisfied in Table 3 of ISO 17357:2000

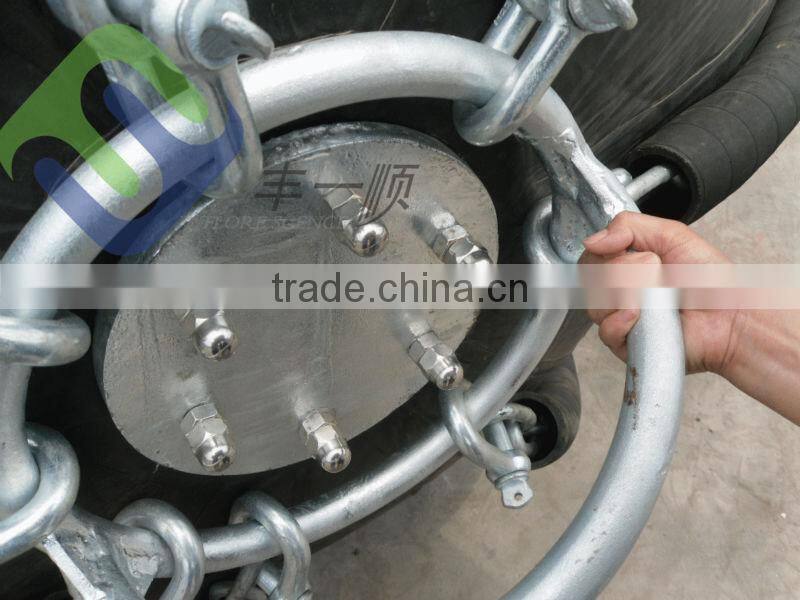

(4) Flanged opening

The flange opening which is mounted on one end of the fender accommodated air valve, air chargevalve, for

convenience of air and water charge and release

(5)Safety valve

Our fender is equipped with tested safety valve for release of excess internal pressure whenaccidentally

compressed. The safety valve is specially designed for high pressure floating pneumaticfender. And set to

release air over 175kPa in side of fender by the accidentally compressed.

(6)Air valve/water valve

Valves for air charge and release, air pressure

Application of Florescencefenders:

Ship to ship transfers atseas.

Double banking operation as well as vessel to berth at dock/jetty.

Oil & gas tankers

Fast ferries & aluminum vessels

Temporary and permanent installations

Rapid response and emergencies

Liquid cargo and naval defense vessels

Specifications of Florescence fenders:

D: 0.5-4.5meters L: 1.0-12meters

Can be supplied customized size upon customers' request.

Any question, please feel free to contact me, we will reply to you within 24 hours.----Michelle
