High efficiency pp raffia rope twisting machine for sale
- 30 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Superfine 3mm-32mm pp rope production line from manufacturer
-
New rope yarn extruding machine for making pp rope
-
Rope Machine Factory Perfect Equipment for the production of ropes
-
2017 Rope Production Project Complete Rope Making Machine Line For Sale
-
China Best quality pp rope extruder machine for sale
-
China pp twist rope production line
Product Details
Condition | New | Product Type | Plastic Rope | |
Place of Origin | Shandong, China | Brand Name | Haidai | |
Model Number | HDTM-M55 | Voltage | 380VAC,3 Phase | |
Power(W) | 11KW | Dimension(L*W*H) | 9.0X2.2X2.3m | |
Weight | 2000kg | Certification | CE | |
Warranty | 1YEAR | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
A professional manufacturer of rope & rope machine for 10 years
We can supply " the Complete Project for the ROPE MAKING UNIT."service.
PP extruder (pp fiber)----Ring twister (strand)---Rope Making Machine (twisted rope, braided
rope)---Packaging spool winder, ball winder, hank machine, coil machine)
Raffia rope twisting machine
1. Usage
All kinds of specification of raffia rope twisting machine for 3 strand or 4 strand can be made by this
machine. It is suitable for rope production of different material, such as HDPE&PP monofilament, danline,
polyester,nylon, cotton and etc. This 4 strand rope making machine is equipped with frequency converter,
meter counter, overtravel- limit switch and auto-stop device.It is easy to adjust the rope tensility and change
the direction of twist and lay length.
2. Technical parameters of raffia rope twisting machine
Item | HDTM-M33 | HDTM-M44 | HDTM-M55 | ||||||
Rope Range | 4-10mm | 6-14mm | 12-20mm | ||||||
Lay Range | 15-38mm | 20-50mm | 32-78mm | ||||||
Power | 5.5kw | 7.5kw | 11kw | ||||||
Take-up capacity | Φ130*Φ350*Φmm | Φ130*Φ600*Φ430mm | Φ130*Φ660*Φ400mm | ||||||
Output kg/12hours | 4 | 6 | 10 | 8 | 10 | 12 | 12 | 14 | 18 |
50 | 200 | 250 | 320 | 550 | 880 | 1600 | 1840 | 3000 | |
Size of pay Off bobbin | 175*430mm(8’’) | 175*430mm(8’’) | 175*430mm(8’’) | ||||||
220*350mm(10”) | 220*350mm(10”) | 220*350mm(10”) | |||||||
Quantity of 8” bobbin | 4'' | 10*4 or 10*3 | 20*4 or 20*3 | ||||||
Machine size | 4.0*1.7*1.85m | 7.7*2.3*2.2m | 9*2.2*2.3m |
PERFORMANCE &ADVANTAGES:
- High Productivity
- Less than Maintenance.
- Rigid Construction
- Power transmission by timing belts.
- Auto Stop after yarn breakage to control wastage.
- Digital length counter meter.
- Door Sensor
- A/C drive
- Direct Coiling Head winding

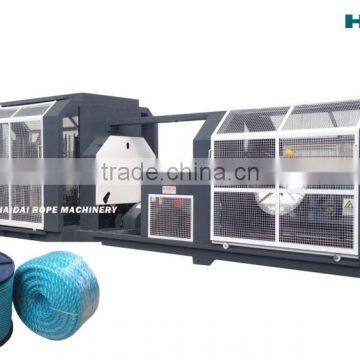

4. Picturer Show of raffia rope twisting machine
5. Our service
- Installation Services
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
- Clients Traning Services
We can train your staff to use your equipment systems properly.It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
- After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide.Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.
6. Our garden--style factory
Taian Haidai Rope Machinery Science Technology Co., Ltd. is located in Shengzhuang Industrial Park, Taian City, Shandong Province. We are a science technology and innovation enterprise.
Our company has achieved industrialization and large-scale production from the research and innovation with 10 years' experience in the rope and net field. Our rope and net machinery mainly includes: extruder, ring twister, twisted rope making machine, braided rope machine, ball winder, spool winder, coiler machine, hank winding machine and package machine and more than 10 kinds series production; Our rope, twine, net and webbing production include: all kinds of twisted rope and braided ropes, nets, twine more than 30 series and 500 kinds of products from the plastic, chemical fiber, natural fiber and high performance fiber. Our product performance has reached international and domestic advanced technology level with unique design concept, advanced manufacturing technology, perfect quality guarantee.
Taian Haidai Rope Machinery Science Technology Co., Lt. will continue adhering to the "best and perfect" service concept, and providing customers with considerate service, excellent products, professional design and first-class quality.
Welcome customers all over the world cooperation.
If you need raffia rope twisting machine, please contact us!:
- Which type of rope you want to produce? Twisted rope or braided rope?
- Which material is required?
- What specification of rope is?
- What requirements you have on output?
- How to pack the ropes?
- What the power requirement is in your location?
- Do you have other requirements?
Please contact me for more information.
