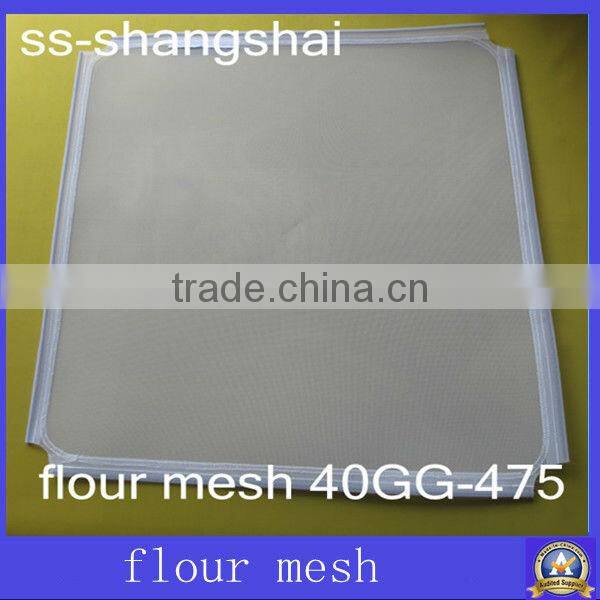

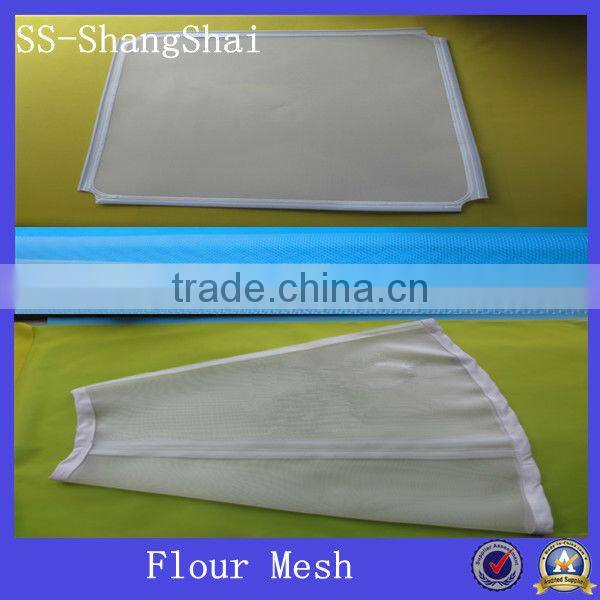

3XXX (GG Available) Wheat Nylon Flour Milling Fabric

FOB Price

US$ 0.9 - 25.3 / Square Meter

150 Square Meters(Min. Order)

Port shanghai/tianjin or send to any port in china as need
Payment TermsT/T L/C Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China	Brand Name	SS-anping shangshai
Model Number	XXX/GG ok	Usage	Solid Filter
Type	Other, nylon flour milling fabric	Material	Nylon
Hole Shape	Square	Filter Rating	80%
Thickness	2mm	Length	30m
Width	130cm

Product Description

Specifications

3XXX (GG ok) Nylon Flour Milling Fabric
XXX/MF For medium to hard wheat
and high capacity sifters
PW mono/double filamen

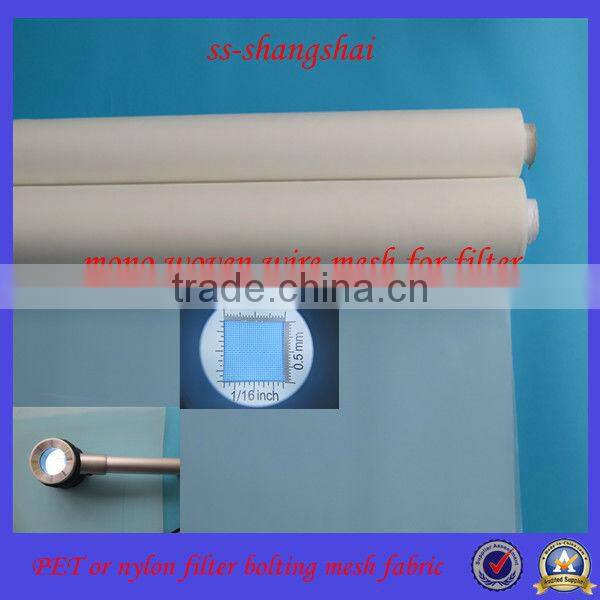

monofilament flour mesh fabric, nylon flour sifter mesh, flour sieve mesh

Nylon Flour Mesh Filtering Supplier/Manufacturer

GG series flour mesh,xx series flour mesh and xxxseries flour mesh.

Features & Applications :

Filtration rates can be from 27% to 78%. Width: 115cm-158cm and length is from 30M/roll to 75meters /roll. Specifications are very exact ,long service life.The fabric has been brushed, so it is more flexible and thicker,the dedusting efficiency can reach 99.99%

General Introduction:
Our XX, XXX and GG Series Flour Mesh are with high extraction, and quality can meet to FDA standard, can be used forUltra fine flour milling. Including nylon and polyester materials, standard width127cm/145cm/165cm, also can be made as Your request.

XX Series: For soft wheat and rye
XXX Series: For medium to hard wheat and high capacity sifters
GG Series: Mainly used for gritting gauze for coarse and scalping sieves.

Specifications & Details :

Flour Mesh Specifications XX Series
Specification	Mesh Opening(um)	Thread Diameter(um)	Tram Silk (um)	Warp/weft (cm)	Open Area(%)
3xx	300	100+2*60	100	24.0/25.0	54
4xx	280	100+2*60	100	25.5/26.5	53
5xx	250	100+2*60	90	27.5/29	51
6xx	214	90+2*60	90	32/34	49
7xx	199	80+2*60	80	33/36	48
8xx	181	80+2*60	70	36/40	46
8.5xx	160	70+2*60	70	40/43.5	44
9xx	146	70+2*60	64	43/48	44
9.5xx	140	60+2*60	60	43.0/50.0	43
10xx	130	60+2*50	64	49/52	44
10.5xx	125	60+2*50	60	48.5/54.0	40
11xx	120	60+2*50	48	53/60	42
12xx	112	60+2*50	48	55/63	40
12.5xx	106	60+2*43	48	56.0/64.0	40
13xx	100	60+2*50	48	58/68	58
14.5xx	90	50+2*43	50	62.5/71.5	37
15xx	88	50+2*43	48	65/74	34
17xx	80	50+2*43	43	68.0/81.0	35
20xx	75	50+2*43	43	70.0/84.7	34
21xx	71	50+2*43	43	74.0/87.7	33
25xx	63	43+2*43	43	78.0/94.0	30
Remark:The above data is theoretical and for your reference only.

Flour Mesh Specifications XXX Series
Specification	Mesh Opening(um)	Thread Diameter (um)	Thickness (cm)	Mesh Count	Open Area(%)
3xxx	301	140	22.7	57.6	47
4xxx	280	140	23.8	60.5	44
5xxx	257	120	26.5	67.3	47
6xxx	213	120	30	76.2	41
7xxx	203	120	31	78.7	39
8xxx	182	100	35.5	90.2	42
8.5xxx	163	100	38	96.5	38
9xxx	154	90	41	104.1	40
9.5xxx	143	90	43	109.2	38
10xxx	133	80	47	119.4	39
10.5xxx	124	80	49	124.5	37
11xxx	120	80	50	127.0	36
12xxx	112	70	55	139.7	38
12.5xxx	105	70	57	144.8	36
13xxx	99	70	59	149.9	34
14xxx	97	70	60	152.4	34
15xxx	92	60	66	167.6	36
15.5xxx	89	60	67	170.2	36
16xxx	95	50	69	175.3	43
17xxx	91	50	71	180.3	42
Remark:The above data is theoretical and for your reference only.

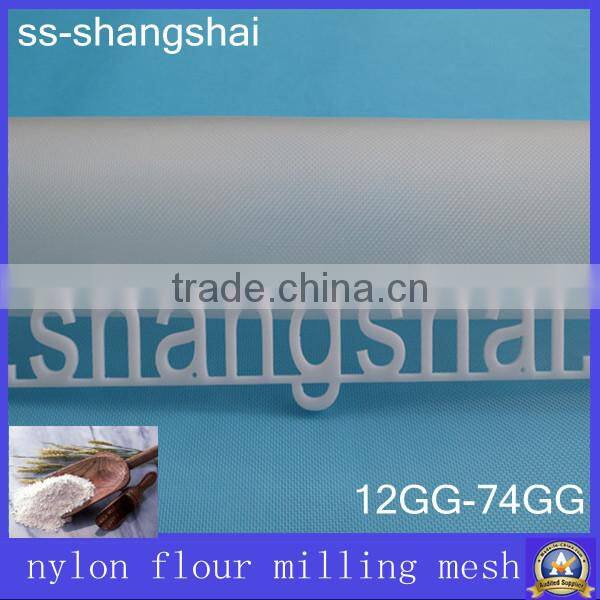

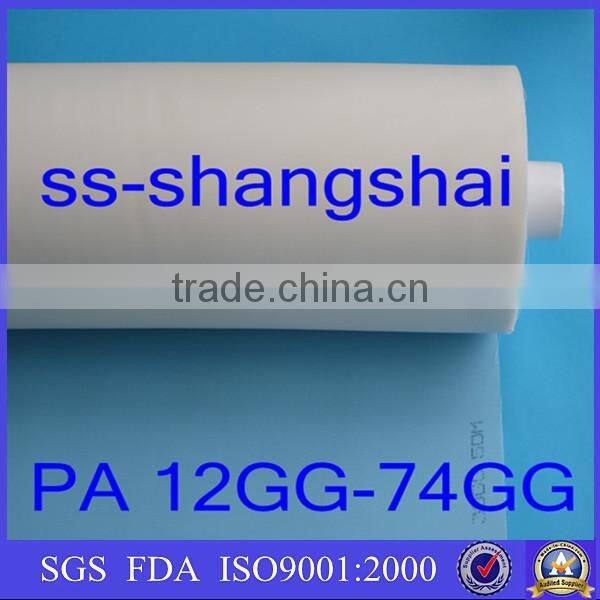

Flour Mesh Specifications GG
Specification	Mesh Opening	Thread Diameter (um)	Base (cm)	Mesh count (/inch)	Open Area(%)	Square Meter /g
10GG	2000	550	3.9	9.9	61.5	237.3
12GG	1800	450	4.4	11.2	64	180
14GG	1600	400	5	12.7	64	177.8
15GG	1400	400	5.6	14.2	60.5	197.5
16GG	1300	350	6.1	15.5	62.1	165
18GG	1188	350	6.5	16.5	59.7	177
19GG	1080	350	7	17.8	57	190.4
20GG	1000	300	7.7	19.6	59.2	153.8
22GG	950	300	8	20.3	57.8	160
24GG	850	300	8.7	22.1	54.6	173.9
26GG	800	300	9.1	23.1	52.9	181.8
27GG	750	250	10	25.4	56.3	138.9
28GG	710	250	10.4	26.4	54.7	144.7
30GG	670	250	10.9	27.7	53	151
31GG	610	250	11.6	29.5	50.3	161.5
32GG	600	250	11.8	30.0	49.8	163.4
34GG	560	220	12.8	32.5	51.5	137.9
36GG	530	220	13.3	33.8	49.9	143.4
38GG	500	220	13.9	35.3	48.2	149.4
40GG	475	200	14.8	37.6	49.5	131.7
42GG	450	200	15.4	39.1	47.9	136.8
44GG	425	200	16	40.6	46.2	142.2
45GG	400	180	17.2	43.7	47.6	124.1
47GG	375	180	18	45.7	45.7	129.7
50GG	355	150	19.8	50.3	49.4	99
52GG	335	150	20.6	52.3	47.7	103.1
54GG	315	150	21.5	54.6	45.9	107.5
56GG	308	150	21.8	55.4	45.2	109.2
58GG	300	150	22.2	56.4	44.4	111.1
60GG	280	150	23.3	59.2	42.4	116.3
62GG	275	150	23.5	59.7	41.9	117.6
64GG	265	150	24.1	61.2	40.8	120.5
66GG	250	120	27	68.6	45.7	86.5
68GG	243	120	27.5	69.9	44.8	88.2
70GG	236	120	28.1	71.4	43.9	89.9
72GG	224	120	29.1	73.9	42.4	93
74GG	212	120	30.1	76.5	40.8	96.4
Remark:The above data is theoretical and for your reference only.

Production Process:

For more specifications kindly please contact us!

Welcome to our Factory!

Shanghai Shangshai Bolting Cloth Manufacturing Co.,Ltd is a professional manufacturer of all kinds of Screen Printing Mesh, Filter Mesh and Flour Mesh, established in 1997.

Our company has 2 factories, the bigger one is located in ANPING, HEBEI, is a recommended enterprise of the HEBEI Government. The factory in Hebei covers 119 ACRES (79,373 square meters), the other factories are located in Shanghai.

Mainly Products: Polyester Mesh, Terylene Mesh, Nylon Mesh, Polyamide Mesh, Flour Mesh, Stainless Steel Mesh, Iron Wire Mesh, Filter Mesh, etc. screen printing and filtration related products.

Equipments: 300 SWISS SULZER RUTI weaving machines, 5 Benninger high speed warping machines, 2 water washing heat setting machines. The width of weaving machines: 280cm, 330cm, 360cm, 390cm.Exported Countries: America, Germany, Japan, Britain, Italy, Russia, Brazil, Turkey, Argentina, Pakistan, Thailand, Singapore, Korea, Mexico, etc all over the world.
