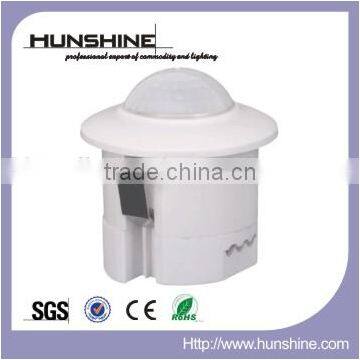

pir motion sensor switch

Specifications

 Pir motion sensor switch

1.general:

Power source: 220 to 240V AC

Power frequency: 50Hz

Rated load:

300W Max. tungsten (220 to 240V AC)
1100W Max. tungsten (100 to 130V AC)

Time setting: 8±2sec ~6±2min (Adjustable)

Detection range: 8m Max. (dia)  (Adjustable)

Detection angle: 360°

Light-control: <10LUX~2000lux (adjustable)

Installation height: 2.5m to 3.5m

Detection motion speed: 0.6 ~1.5m/s

Working temperature:  -10 to 40°C

Working humidity: < 93%RH

the product is an energy-saving automatic switch,it adopts integrated circuit and precise detacing components.it can be on when one comes and will off automatically after one leaves.it can identify day and night automatically.its performance is very stable.the light will turn on automatically when one enters the detection field;the light will turn off after one leaves the detaction field.

can identify day and night automatically.ambient-light can be it will work at night and stop in the daytime.the consumer can adjust it freely.

detection distance can be adjustable according to the local place.

2.specifications:

1.detection distance: 12m (24°C)(adjustable)

2.detection range: 180º /  140°

3.power source: 100-130v/ac 220-240v/ac

4.power frequency: 50/60hz

5.power Load: 800w max.tungsten lamp (100-130v/ac)

                        150w max.fluorescent lamp(100-130v/ac)

                       1200w max.tungsten lamp(220-240v/ac)

                        200w max.fluorescent lamp(220-240v/ac)

5.working temperature: -10°C~+40°c

ing humidity:<93%rh

7.time-delay:5sec~7min±2min (adjustable)

8.ambient-light:<10~2000lux(adjustable)

9.installation height:1m~3m

 3.packing details

we usually use color box.if you have special packing requirements,pls inform us in advance.
