The Green Shade Net Making Machine for Agricultural Use

Purpose & Feature:

This double Raschel machine is apt for the production of  many kinds of many kinds of shading nets such as for planting vegetables, flowers or/and trees.

Technical Data:

1 Machine type:Double needle-bar warp knitting machine

2 Working needles: Latch needles

3 Machine gauge: E2,E3,E6

4  Nominal width:  4318mm(195''), 5334mm(210'')

5 Number of guide bars:  4 ground guide bars and 5 pattern guide bars

6 Yarn let-off device:  positive 3 roller system ( 4 sets )

7 Range of yarn run-in:6.25 45.6mm/course

8 Yarn creel:2 blocks of creel with 1064 ends each block 4 bIocks of creel with 644 ends each block
9 Modified loop density range of fabric take-up:2.0…14.5 courses/cm
10 Maximal diameters of fabric batching:φ1270mm
11 Machine speed:max. 600 rpm(the speed can be adjusted stepless)
12 Drive:Main motor:3-phase asynchronous inotor.5.5kw,with frequency convertor                                          controlled
                 Fabric batching motor:Motor with worm gearing,0.75kw
13 Machine size:7200/8220×6460×2480 mm(L×W×H)
14 Machine weight:approx.9000 Kg

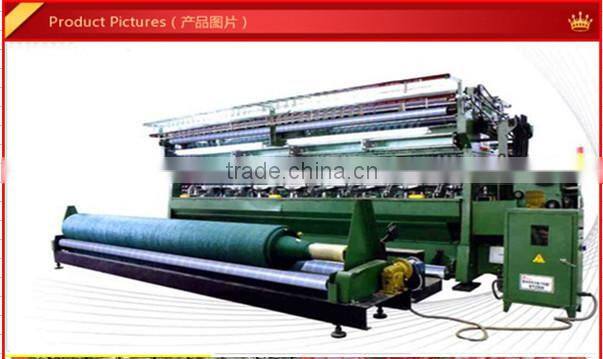

 Machine picture:

  Out-put production picture:

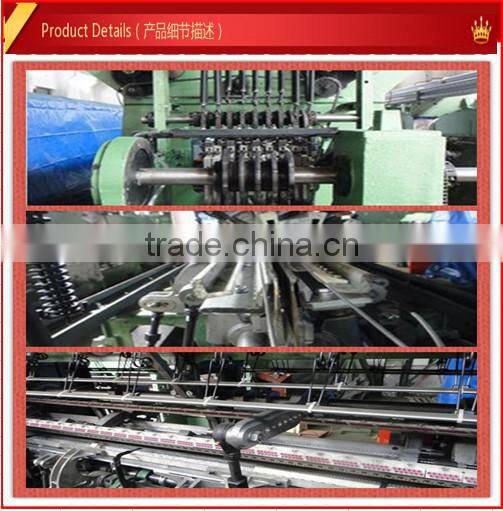

Machine Details

Machine installation & commissioning:

Business negotation:

Exhibition booth

Working meeting:

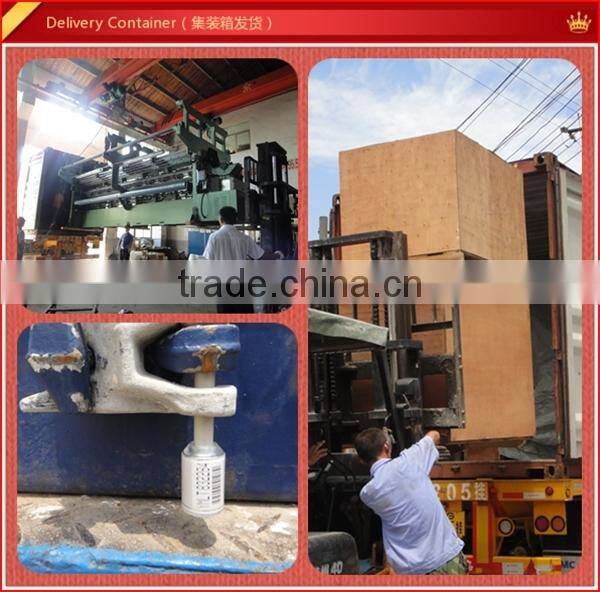

  Machine delivery:

Reputation:

Our Factory:

Our advantage:

(1): Many years experience.

(2): We are not only manufacturer but also expert in knitting net fabric.

(3): Solve full planning solution

(4): Taking a training skill on maintenance & knitting.

(5): One step after-sales service.

  Factory Location:

Company profile:

  Changzhou LongLongSheng Warp Knitting Machinery Co.,Ltd mainly handles in the research and manufacture of Raschel warp knitting machine.

  Our products belong to the single needle-bar warp knitting machine and double needle-bar warp knitting machine series. It can manufactory fishing net, shading net, protective net, mosquito net, physical training net and 3D cushion etc.

Should you have any questions, please do not hesitate to

contact us and welcome to visit our factory!

Our service:
We can dispatch our engineer to debug machine in buyer's factory.
