Bridge Type Plastic Cable Carrier for Cnc Machine
- TIANJIN
- Credit Card
You May Like
Product Details
| Material | nylon66 | Brand | LC-LIDA | |
| Model | HY |
Product Description
Characteristics and Applications cable chain
1) The cablechain can be used for such locations where repciprocating motions are required so that internally installed cables,oil pipes,gas tubes and water tubes can be draged and protected.
2) Each joint of cable chain can be opened up so as to facilitate repairs and maintenance. It gives low noises and is of anti-wearing while running.It can also be operated under high speed.
3)The cable chain have already extensively used in digital-controlled machine tools,electronic epuipement,machinery for stone industry,moulding injectors,manipulators,lifting and transport equipment and automatic warehouses,etc.
Data parameter
| Type | Inside Diameter | Outside Diameter | Bending radius | Non-support |
| LX35.1 | 35*50 | 56*79 | 75.100.125.150 | 3.8 |
| LX35.2 | 35*60 | 56*89 | 75.100.125.150 | 3.8 |
| LX35.3 | 35*75 | 56*104 | 75.100.125.150 | 3.8 |
| LX35.4 | 35*100 | 56*129 | 75.100.125.150 | 3.8 |
| LX35.5 | 35*125 | 56*154 | 75.100.125.150 | 3.8 |
| LX35.6 | 35*150 | 56*179 | 75.100.125.150 | 3.8 |
| LX35.7 | 35*175 | 56*204 | 75.100.125.150 | 3.8 |
| LX35.8 | 35*200 | 56*229 | 75.100.125.150 | 3.8 |

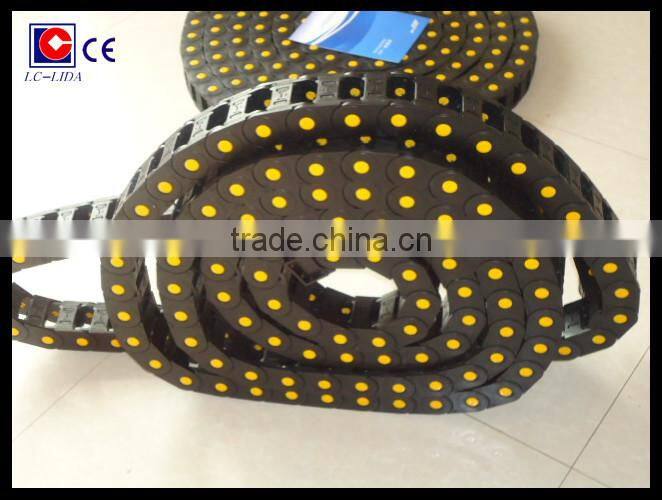

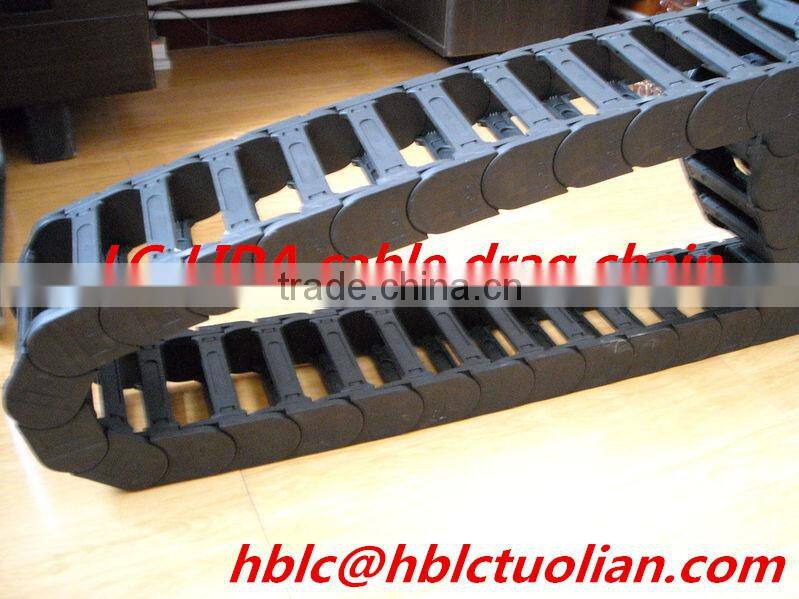

bridge type plastic cable carrier for cnc machine show
CE&ISO9001
Application
Packing and shipping
Contact Us
- Hebei Liancheng Machine Tools Accessories Co., Ltd.
- Contact nameJianxin Yang Chat Now
- Phone86-0317-7880388
- AddressNo.49 East Yongji Road, Cangzhou, Hebei
