Linear Slide Machine Bellow Cover
- tianjin
- Credit Card
You May Like
Product Details
| Material | PVC cloth | Brand | LC-LIDA | |
| Model | according to customer need |
Product Description
machine accordion bellow covers
- This type of bellow cover feature a strong tread-resistance,easy to be operated,long lifetime,good tightness and non-deformation upon impact by hard objects.
- These bellow cover have a long travel range, which has very little compression. The length ratio is 1:10.
- This folding bellow cover is the most advanced one, which can solve all the difficulties that the others can not and is now in a leading position in the world.
- cutting material
- frames
- thermal bonding (glue)
- finalize the design
- test
Feature
- Resists to coolants as it doesn’t have sticked parts
- It presents a very reauced compressed size
- It can reach speed up to 200 mt./min.
- It has no intermal metal parts which falling onto slideways may cause serious damage to machines

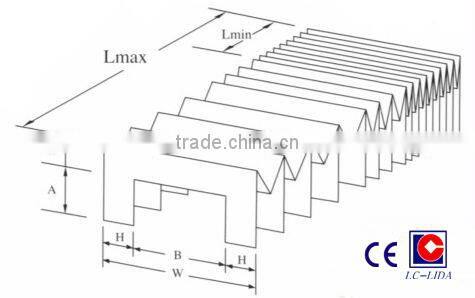

Code | Description | Data | Remarks | Shield coustrustion materials | |
L | Lengh after stretch |
|
| plus material | Nylon cloth or protective cloth |
L1 | Length after compression |
|
| support | PVC sheet |
L2 | Travel |
|
| connecting plate | Resin plate ,iron plate |
B | Total width of the shield |
|
| pulley | Copper or nylon bearing |
B1 | Guide width |
|
|
|
|
B2 | Interior width of the shield |
|
| machine tool model number |
|
H | Total height of the shield |
|
| by pur chase order |
|
H1 | Guide height of the guide |
|
| contact person |
|
H2 | Interior width of the shield |
|
| contact tel |
|

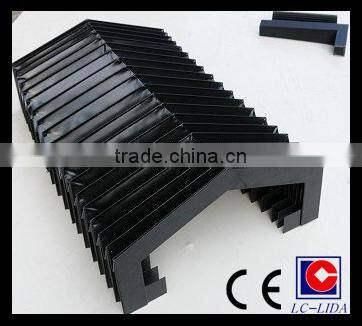

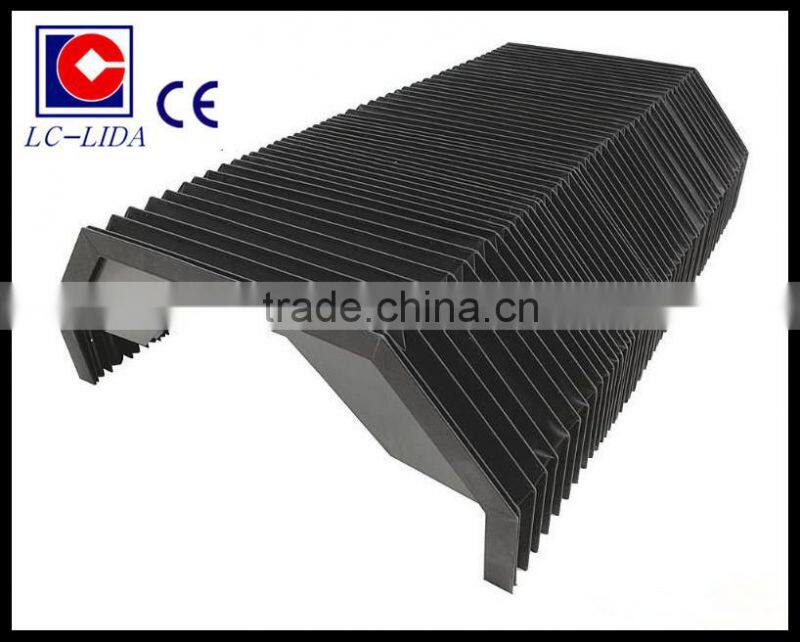

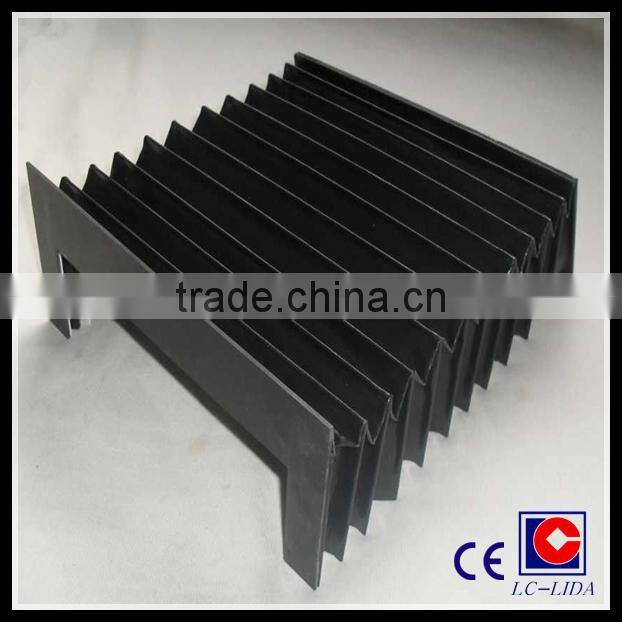

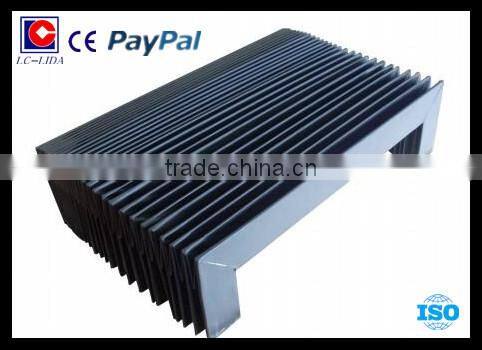

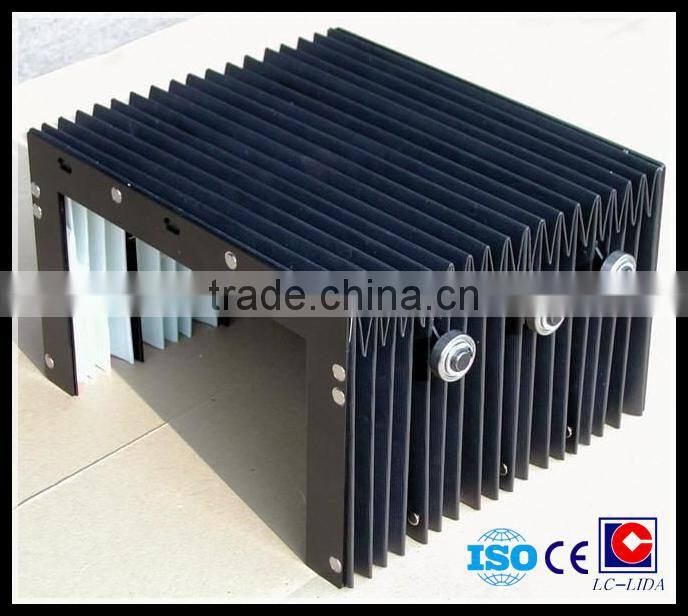

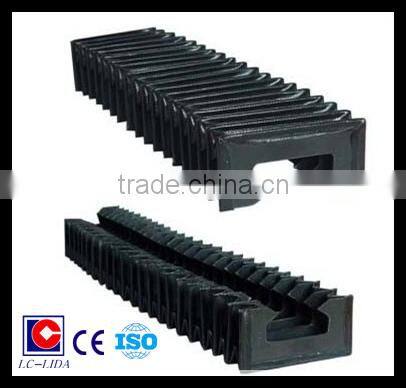

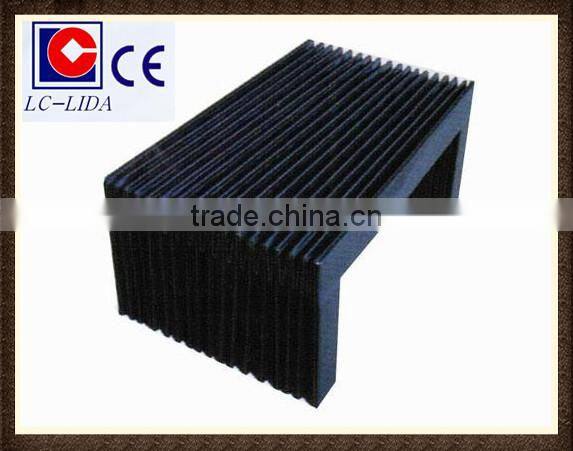

linear slide machine bellow cover show

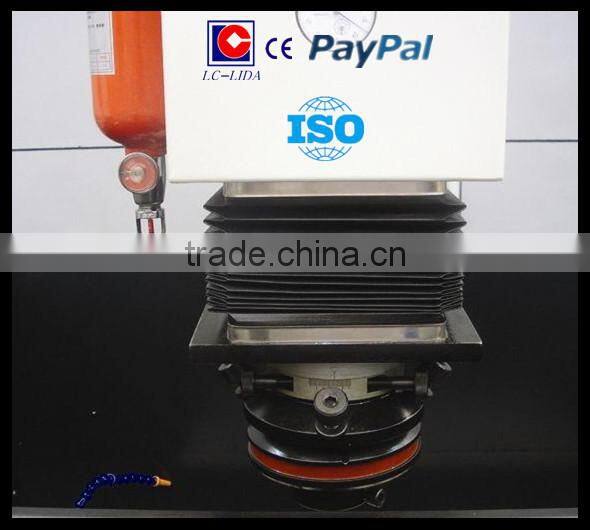

Application
- cnc machine
- electronic equipment
- stone machinery
- glass machinery
- door machinery
- injection molding machine
- manipulator

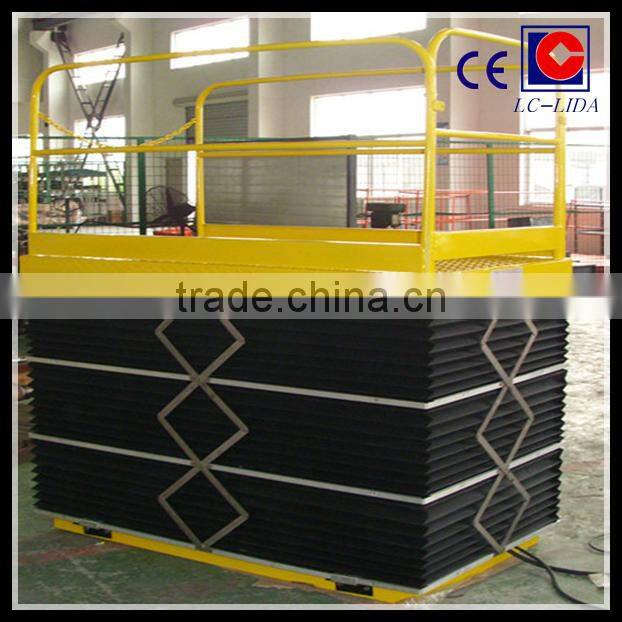

- lifting transport equipment
- automatic warehouse
Packing and shipping
