welded wire mesh panels(factory)

PVC Coated Welded Mesh

Opening

Wire Diameter

In inch

In metric unit(mm)

1/2" x 1/2"

12.7mm x 12.7mm

16, 17, 18, 19, 20, 21

3/4" x 3/4"

19mm x 19mm

16, 17, 18, 19, 20, 21

1" x 1"

25.4mm x 25.4mm

15, 16, 17, 18, 19, 20

Technical Note:
1, Standard roll length: 30m;width: 0.5m to 1.2m.
2, Special sizes available at request.

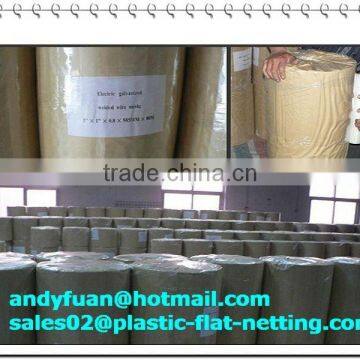

3, Packing: in waterproof paper in rolls. Custom packing available at request.

Specification List of Hexagonal Wire Mesh

Specification in Metric Unit

Specification in Inch

Wire Diameter in BWG

Technical Note

1.5cm

1/2"

22

Max. roll width:
2m,single or double edge

24

2cm

3/4"

20

Max. roll width: 2m,single, double edge,or reinforced

22

24

1.8cm

5/8"

21

Max. roll width: 4', single or double edge

23

25

2.5cm

1"

19

Max. roll width: 2m, straight or reverse twist

21

23

3cm

1.25"

19

Max. roll width: 2m, straight or reverse twist

21

4cm

1.5"

18

Max. roll width: 2m

Galvanized Fencing Mesh

Opening

Wire Diameter<BWG>

In inch

In metric unit(mm)

2" x 3"

50mm x 75mm

2.0mm,2.5mm,1.65mm

3" x 3"

75mm x 756mm

2.67mm,2.41mm,2.11mm,1.83mm,1.65mm

2" x 4"

50mm x 100mm

2.11mm,2.5mm

4" x 4"

100mm x 100mm

2.0mm,2.5mm

Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.

Opening

Wire Diameter<BWG>

In inch

In metric unit(mm)

1/4" x 1/4"

6.4mm x 6.4mm

22,23,24

3/8" x 3/8"

10.6mm x 10.6mm

19,20,21,22

1/2" x 1/2"

12.7mm x 12.7mm

16,17,18,19,20,21,22,23

5/8" x 5/8"

16mm x 16mm

18,19,20,21,

3/4" x 3/4"

19.1mm x 19.1mm

16,17,18,19,20,21

1" x 1/2"

25.4mm x 12.7mm

16,17,18,19,20,21

1-1/2" x 1-1/2"

38mm x 38mm

14,15,16,17,18,19

1" x 2"

25.4mm x 50.8mm

14,15,16

2" x 2"

50.8mm x 50.8mm

12,13,14,15,16

Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.
