PEH Type Professional Automatic Filter Press for Sludge Dewatering
- Qingdao port
- T/T
You May Like
-
Best Pulp and Paper Mill Sludge Treatment Equipment Plate and Frame Filter Press Machine
-
XMYZ Automatic Hydraulic Box Pressure Filter
-
XMYZ Automatic Hydraulic Plate and Frame Filter Press
-
New Technology Plate and Frame Press Filter Sludge Dewatering Equipment
-
NP Sludge Dewatering Belt Type Pressure Filter
-
NP Belt Type Sludge Filter Press
Product Details
| Place of Origin | Shandong, China | Brand Name | Jinhaosanyang | |
| Model Number | PEH |
automatic filter press

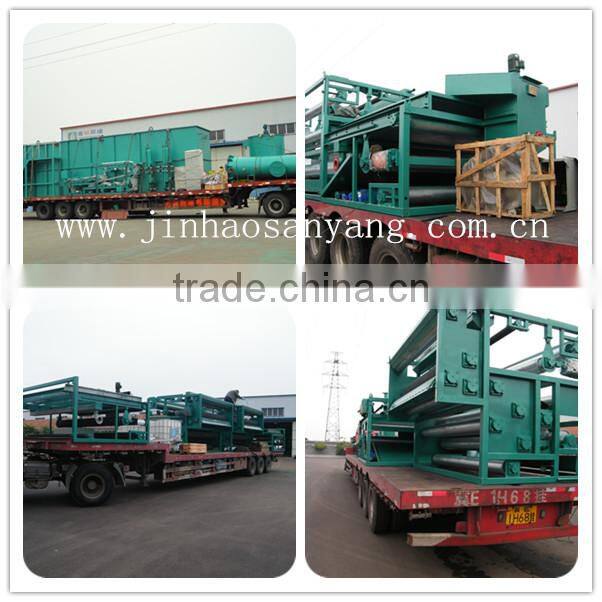

1. standard export seaworthy package
2. as customers' requirement
3. delivery: container
Product Description

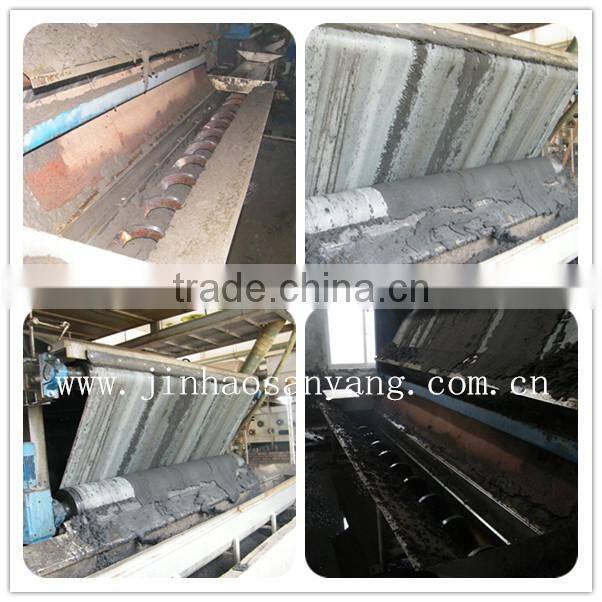

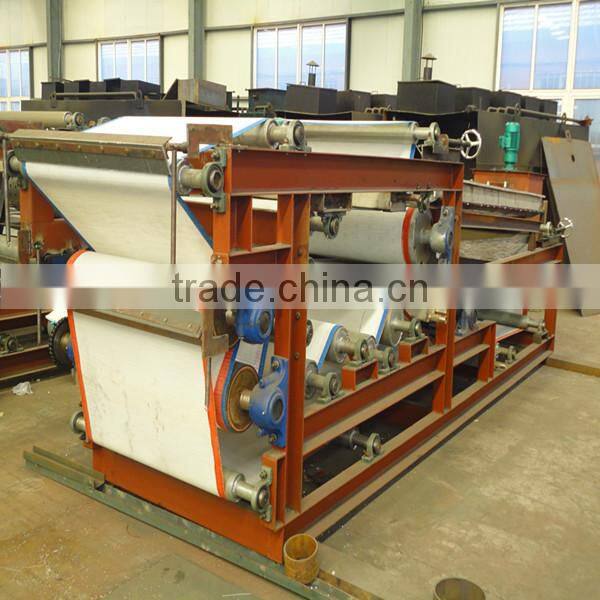

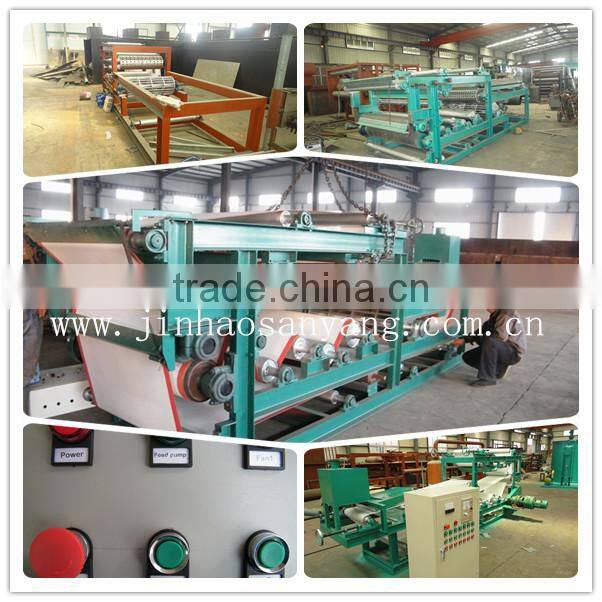

PEH type professional automatic filter press for sludge dewatering

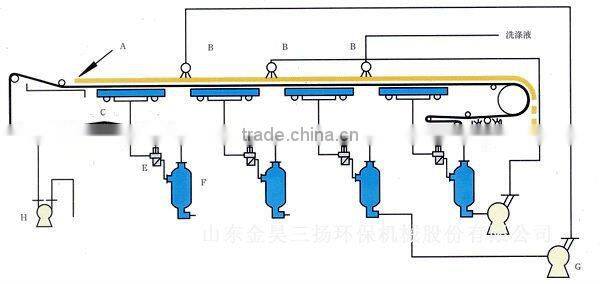

Working principle of the dehydrator
1. Gravity dewatering area
After the sewage mixes with the polymeric flocculant by sending it to the sludge stirring tank, the tiny suspended matters in the sludge has formed the relatively big adhesive feather type particles by means of the polymeric flocculant and then flows to the sludge arrangement device of the press filter with the direction of the gravity flow to make the sludge in adhesive feature type distribute on the filter cloth on an even basis.
2. Pressure dewatering area
The upper and lower filter cloth will be closed gradually in this area. The sludge will be pressed and its concentration will be enhanced gradually.
3. Compression dewatering area
Performance parameter
Name | Width of the filter belt | Speed of the filter belt | Feeding concentration | Discharging concentration | Working pressure | Washing pressure | Driving power | Treatment quantity |
| Mm | m/min | % | % | Mpa | Mpa | KW | T/D |
PEH-500 | 500 | 0.8-4 | ≥3 | 25-45 | ≥0.4 | ≥0.5 | 1.1 | 5-10 |
PEH-1000 | 1000 | 0.8-4 | ≥3 | 25-45 | ≥0.4 | ≥0.5 | 2.2 | 10-20 |
PEH-1500 | 1500 | 0.8-4 | ≥3 | 25-45 | ≥0.4 | ≥0.5 | 2.2 | 20-30 |
PEH-2000 | 200 | 1.0-5 | ≥3 | 25-45 | ≥0.4 | ≥0.5 | 3.0 | 30-40 |
PEH-2500 | 2500 | 1.0-5 | ≥3 | 25-45 | ≥0.4 | ≥0.5 | 3.0 | 40-50 |
PEH-3000 | 3000 | 1.0-5 | ≥3 | 25-45 | ≥0.4 | ≥0.5 | 3.0 | 50-60 |
|
|
|
|
|
|
|
|
|

Our certification
We are professional manufacturer of various bar screen machine, wastewater treatment equipment, filter press, belt filter press, and vacuum filter, dissolved air floatation etc, and can supply you the most cost-effective products with best price!
Welcome to contact us in any time, and welcome to visit our company!

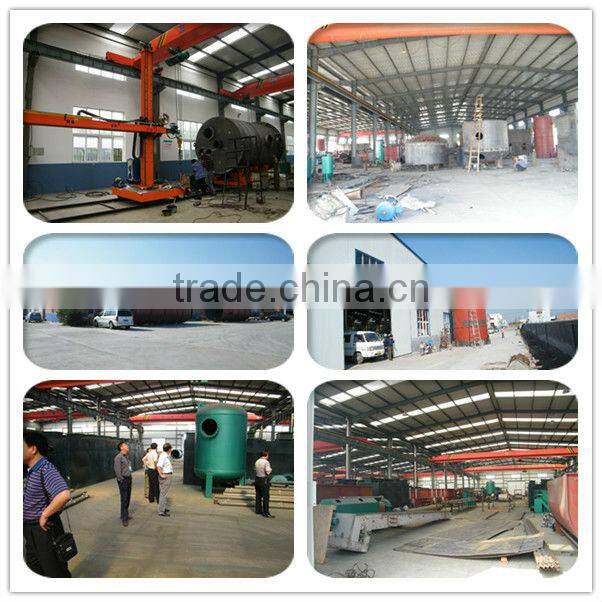

Company Profile
Shandong Jinhaosanyang Environmental Protection Equipment Co., Ltd. is a new high-tech company. Our company is a prestigious, formal, large-scale and environmental protection machinery manufacturer in China, and has an absolute competitive strength in the field. Our company has 300 employees, including technical and management staff members of more than 50. Our company has the advantages of processing technology, large-scale equipment, specialized personnel, design experience, and advanced technology force. We have cooperated with environmental experts and design professors in famous universities and institutions, independently developing production sewage treatment equipment, filtration equipment, pulping equipment and boiler dedusting equipment. We are a comprehensive mechanical equipment development enterprise. Relying on existing conditions, we research and develop the internationally advanced technology. Our company has developed a variety of highly automated and reliable sewage treatment equipment. Products are sold throughout the world, such as Egypt, Vietnam, New Zealand, Finland, the Netherlands, Australia and other countries and regions. Our company has implemented a science-oriented view of development, and consistently pursuing the tenet of "credibility first, quality first, being proactive, innovative and pioneering". We have made brilliant achievement in various industrial fields. We always adhere to the principle of "equality and mutual benefit, Quality First and Reliable Reputation". By joint efforts, we hope to promote both trade and friendship to our mutual advantage. Zhucheng Jinhaosanyang Environmental Protection Equipment Co., Ltd. sincerely welcomes your visit. We hope to cooperate with international guests and friends to create the resplendence together!
Contact Us
- Shandong Jinhaosanyang Environmental Protection Machine Co., Ltd.
- Contact nameHao Huang Chat Now
- Phone86-536-5838610
- AddressNo.106 Shungeng Road,Economic Development Area of Zhucheng City,China, Weifang, Shandong
