Wheel Drive Skid Loader, Small Loader For Construction

FOB Price

US$ 6,000 - 20,000 / Set

1 Set(Min. Order)

Port Qingdao Port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	SHILIYUAN
Model Number	ZLY928D	Place of Origin	Shandong, China
Type	Front Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	578020002900mm	Rated Load	2600KGS
Certification	ISO9001:2008, CE	Warranty	1 YEAR
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Shiliyuan Wheel Drive Skid Loader, Small Loader For Construction detailed description:

1.) Charateristics:

Model	ZLY928D
Bucket capacity(m^3)	1.0
Rated load mass(kg)	2600
Operation mass(kg)	5800
Engine model	4105
Rated power/speed(kw)	55
Max climbing degree(°)	30°
Drive type	4WD
Braketype	Hydraulic disc brake
Max. Dumping height (mm)	3200
Uninstall instance (mm)	1050
Wheel base (mm)	2250±10
Wheel tread (mm)	1540±10
Boom rise time (s)	4.5
Dump time	3.5
Boom fall times(s)	3
Overall dimension (mm)	578020002900mm
Tyre type	16/70-20
Drive axle brand	QIAOWEI

2.) Articulated mini wheel loader Specification:

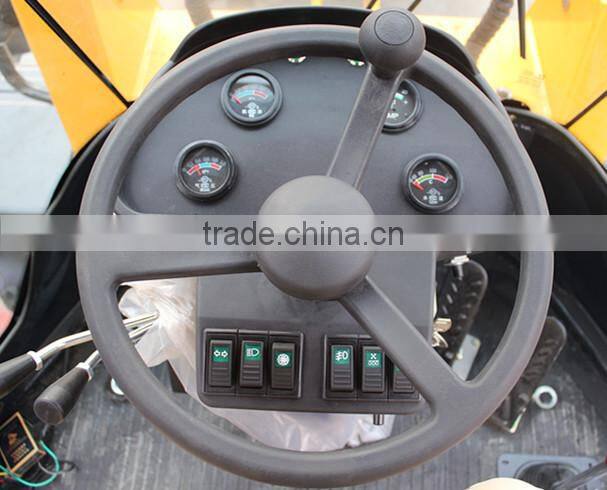

	Cabin: Closed cab. Roomy, quiet cab with readable instrumentation and equipment control console and shock-absorbing seat provides the best possible working environment for the operator

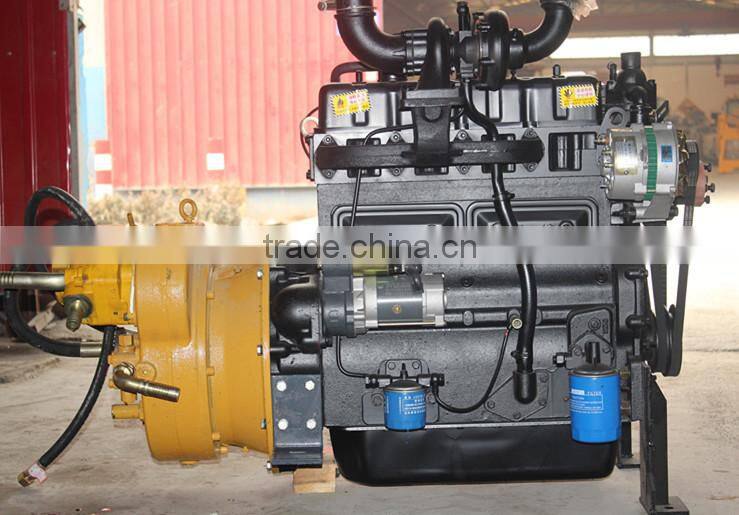

	Engine: Weichai Huafeng 4105 55KW. Speed: 2400rpm. Vertical, in-line, water cooled, 4-stroke diesel engine. 4 Cylinders
	Brake system:air assist disc brake on 4 wheels

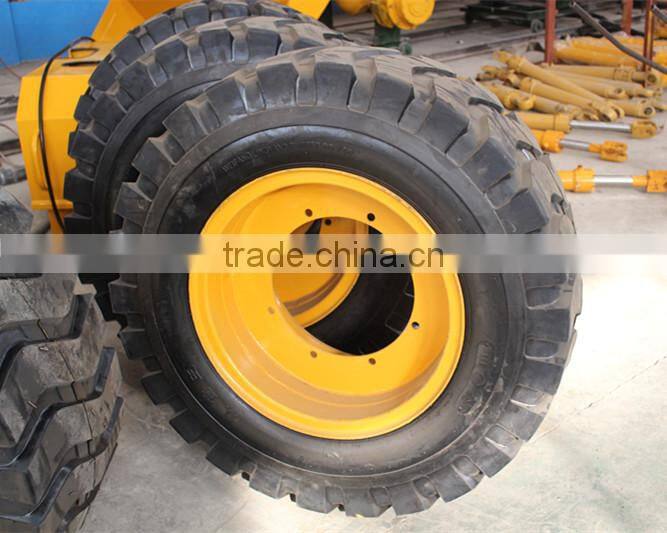

	Tyre: Bias tyre 16/70-20.

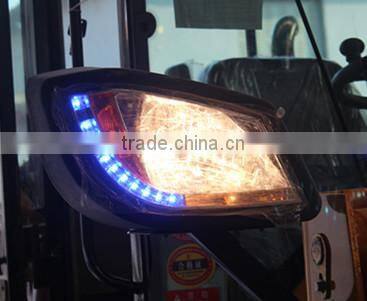

	Lamp: Adopt LED light. Beautiful appearance. Long life span.

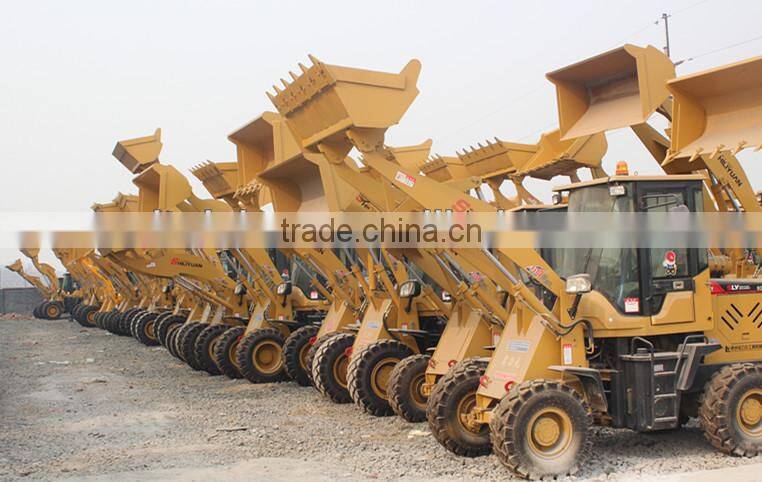

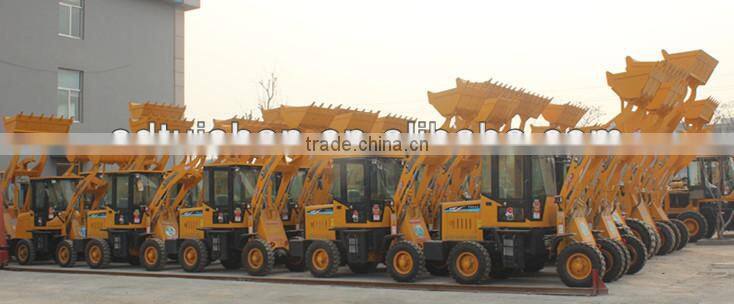

3.) Product picture: Differnt size of wheel loader available. Large quantity in stock.

4.) Articulated mini wheel loader Application:

Widely applying to the construction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc

5.) Articulated mini wheel loader Advantage:

Adopt famouse brand engine which can gurantee the good performance

Baking finish craft. It can not only improve the surface finish, but also avoid the problem of peeling off, crack, bubble of paint. It can be more suitable to the high

and low termperature environment.

We own professional design team. So we can accept customized order as per your request.

6.) Packing and shipping:

As usuall, it is nude package. Shipping method by sea loaded with container. Loading picture for yor reference as follows.
