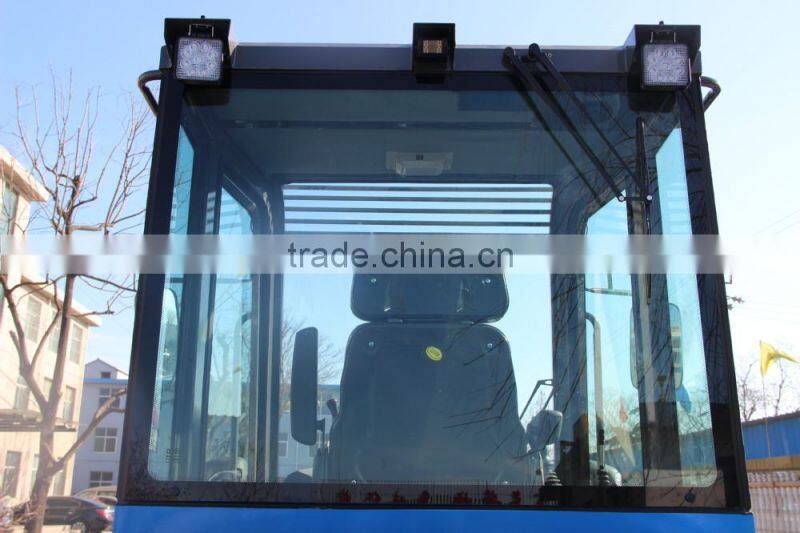

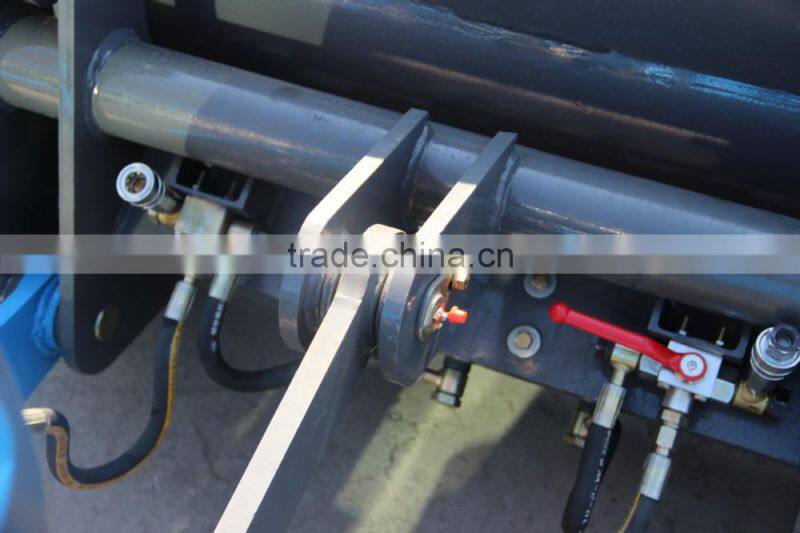

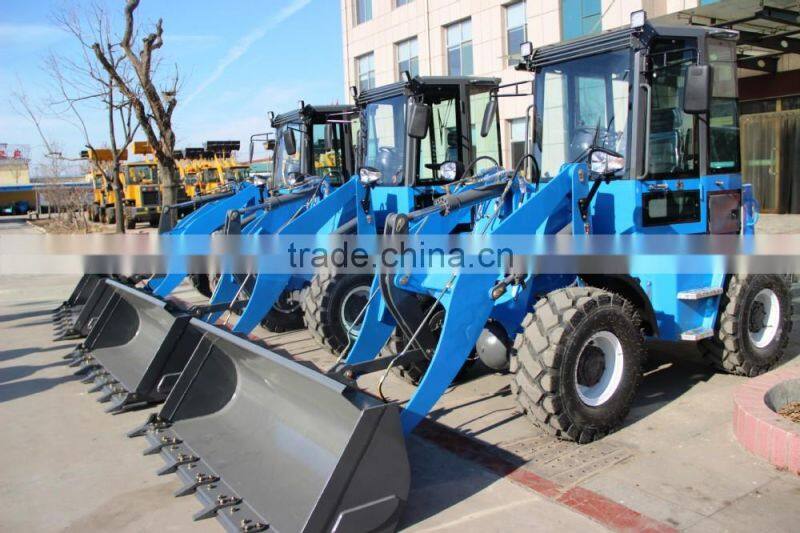

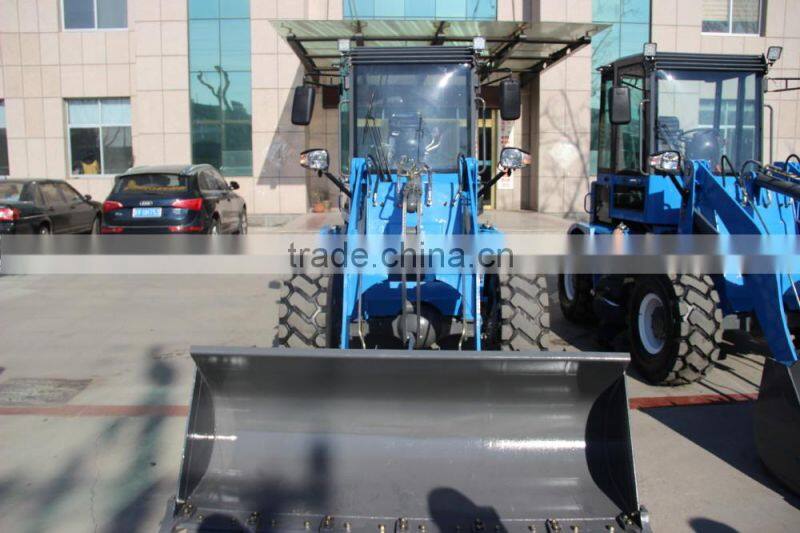

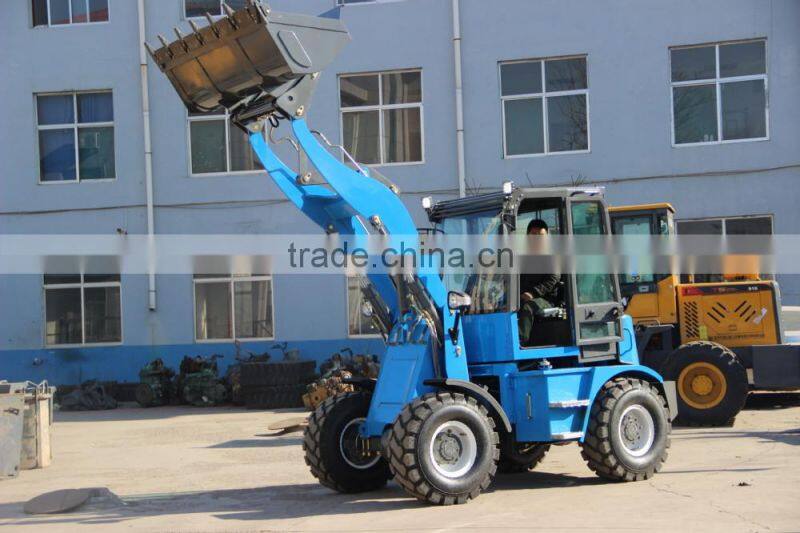

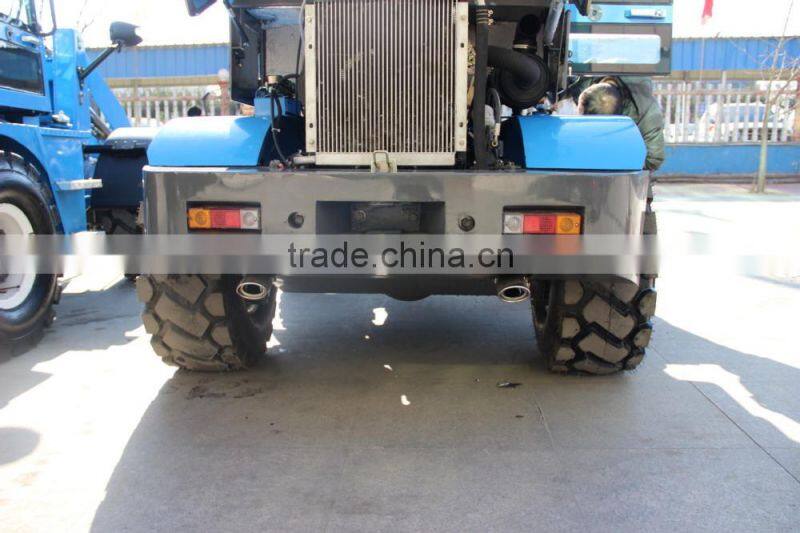

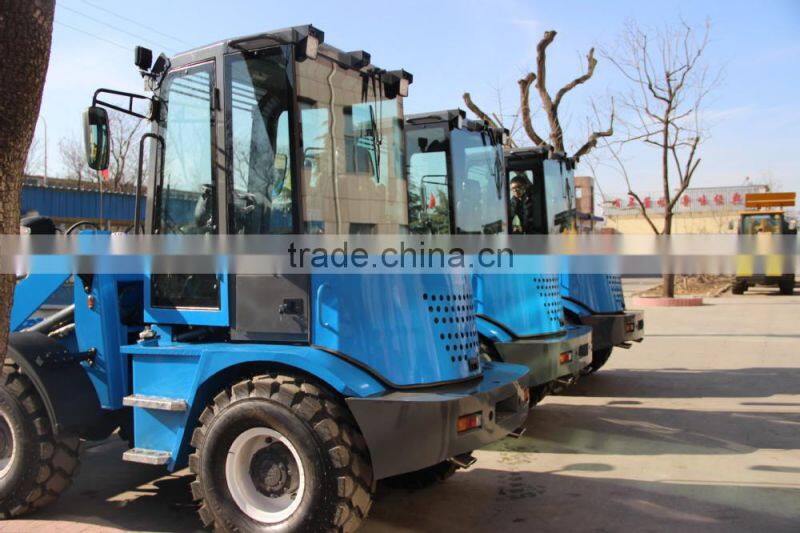

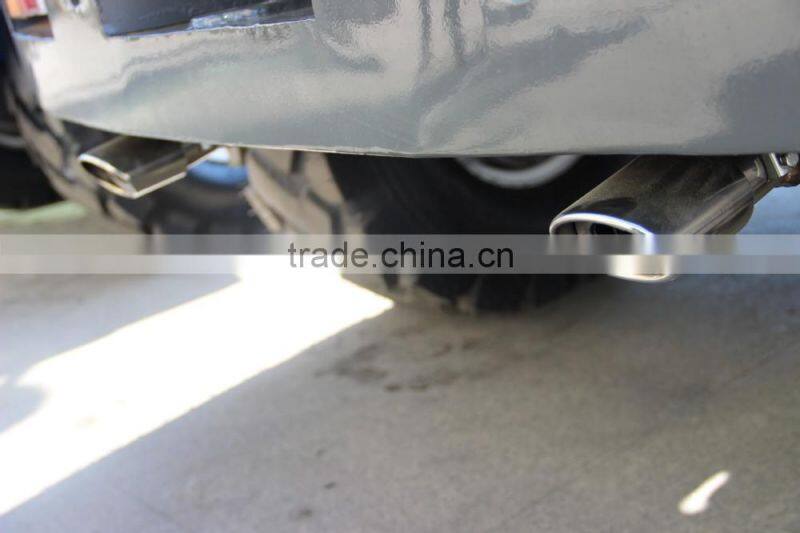

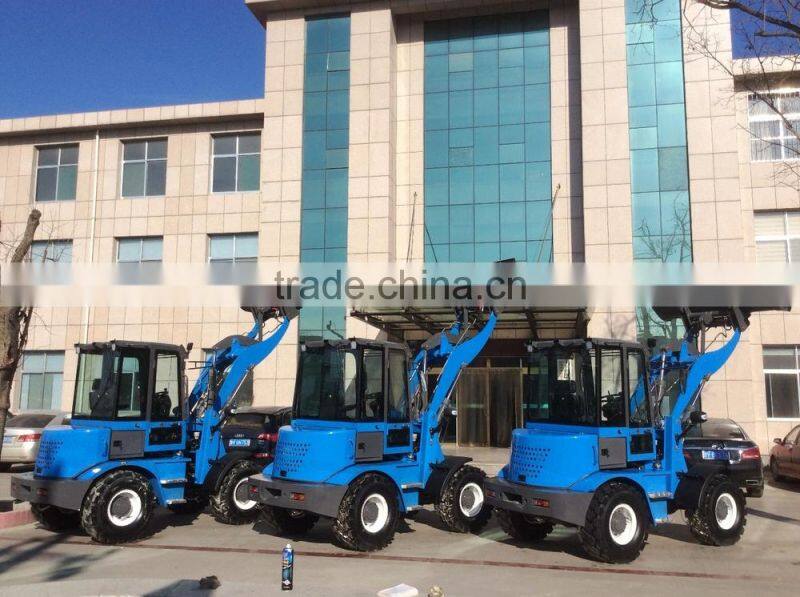

1.5 Ton New Design Wheel Loader With Xinchai Eurp 3 Engine
US$ 5,000 - 10,000
/ Set
1 Set(Min. Order)
- Qingdao port
- T/T Credit Card
You May Like
-
Mini Backhoe Type Front End Wheel Loader Good for Your Farm and Garden
-
JN915 ER15 Small Mini Wheel Loader For Sale With CE ,Weichai Engine Quick Hitch
-
Weifang Loader ZL15 New Design With Low Price and Europe Design ISUZU Axle
-
ZL915 1500kg Ton Small Mini Wheel Loader For Sale With CE
-
ZL15 China Cheap Farm Loader Low Noise Engine Better Water Cooling
-
1.5-2.8Tons Mini Wheel Loader for Sale ZLY---918DH(38kw) China Famous Boot Loader
Product Details
| Condition | New | Brand Name | Tuishan | |
| Model Number | ZLY916A | Place of Origin | Shandong, China | |
| Type | Backhoe Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 4600*1700*2500 | Rated Load | 1.5 ton | |
| Certification | CE ISO | Warranty | 12 months | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
916A new design wheel loader with xinchai engine
Model of wheel loader 916A
| ||
| Performance | Overall weight kg | 3800 |
| LxWxH mm | 4600x1700x2500 | |
| Rated bucket capacity mc | 0.7 | |
| Bucket indicator | YES | |
| Rated load kg | 1500 | |
| Dump distance | 1100 | |
| Max break out force kn | 43 kn | |
| Max grade ability | 35 degree | |
| Dumping height | 2650 | |
| Dumping reach | 1100mm | |
| Raising time | 4.5 | |
| Total cicle time | 11 | |
| Min turning radius | 3900mm | |
| Engine | Brand | Weichai EURO 2 |
| Model | 490 | |
| Optional | Xinchai 490 498 EURO3 | |
| Type | XINCHAIA4988T1 | |
| Rated power kw/cv | 36.8 | |
| Rated speed rpm | 2400 | |
| Min fuel consumption ratio | 9.98L /100km | |
| Fuel tank capacity | 40L | |
| Cylinder | 4 cylinder EURO 3 | |
| Transmission system | Model of torque converter | YJ 240 |
| Type | Hydraulic transmission | |
| Gearbox type | Fixed spindle power shift | |
| Gear shift | 41672 | |
| Max speed | 35km/h | |
| Hydraulic system | Working pump mpa | CBGj1045,CBGq1018 |
| System working pressure | ZL20B | |
| Oil tank capacity | 39L | |
| Steering system | Type | Articulated Hydraulic steering |
| Max turning angle | 27±1° | |
| Min turning radius mm | 3900mm | |
| Brake system | Brake service | Disc brake |
| Brake parking | Soft axle control ,outside | |
| Tire | Standard tire | 20.5/70-16 |
| Front tire pressure | 260KPA | |
| Rear tire pressure | 265KPA | |
| Drive axle | Axle model | Hub Axle |
| Wheel tread | 1360 | |
| Wheel base | 1900 | |
| Anti skid front axle | yes | |
| Anti skid rear axle | yes | |
| Drive | Model | 4x4 |
