Large Capacity Pellet Grain Screw Conveyor

large capacity pellet grain Screw Conveyor

Product Description

 General description

We have successfully develop and put into batch production for Non-Greasy lubricate screw conveyor.
1.Adopt non-greasy bearing , reliable in using and we guarantee 1.5 years
2.Adopt trouble of oil injecting and save grease
3.Simple in structure and easy for maintenance

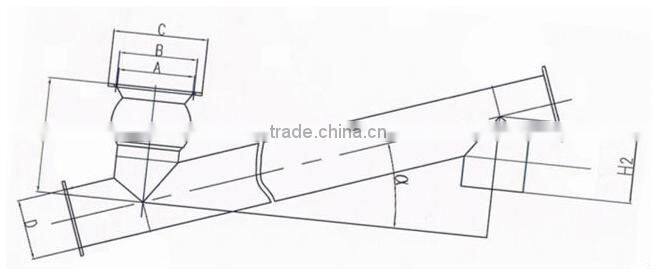

 Work Functional Picture

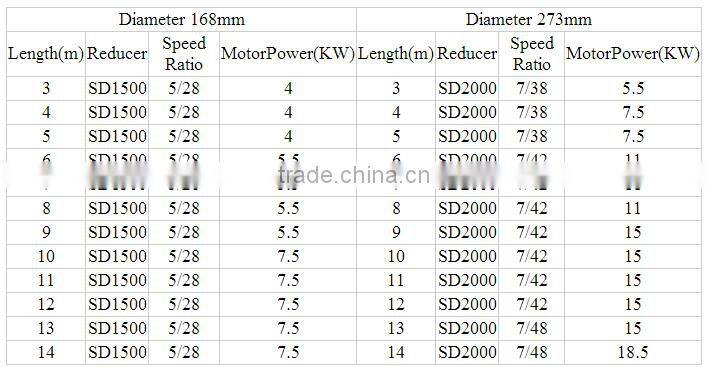

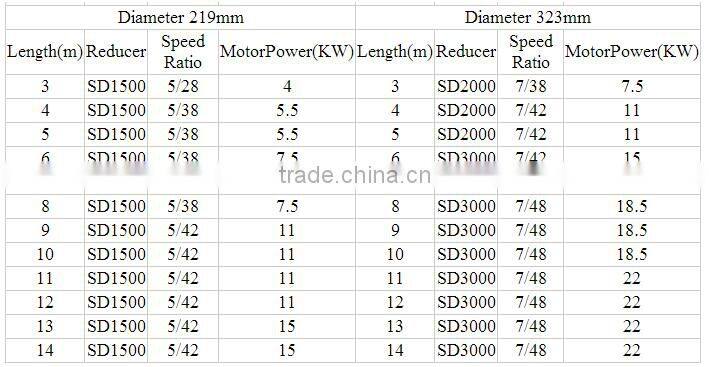

Specification

Dimension&angle can be customized according to your requirement

Characteristics

1. Adopt high-quality steel pipe with good integral rigidity.
2. Adopt double-pitch paddles, which decrease the compression degree of material when being transported, and avoid blocking.
3. Adopt high-quality reducer with heavy-duty design, large torque and low noise.
4. Adopt optional universal ball joint, which facilitates installation, adjustment and steering.
5. Inlet equipped with high quality middle-hoisting bearing and tail bearing.
6. Sufficient spare parts with complete specification.
7. Large stock for common diameter of 165,219,273, 323 and 407, and dimension & angle can be customized according to your requirement.
8. Assembled by standard parts and components, which makes it convenient for transportation.
9. Adopt once-forming spiral double pitch paddles

Packaging & Shipping

Our Services

1. Technical support online service provided.

2. Technical files service provided.

3. On-site training service provided.

4. Spare parts replacement and repair service provided

5. Our Products can be customized according to clients' different requirement.

Company Information

Taian Shizhe Trading Company, combined with the manufacture(Shandong DOM Machinery Equipment Co., Ltd) and trading company, mainly produce and export Concrete Batching/mixing Plant, Asphalt Mixing Plant, Stabilized Soil Mixing Plant and related equipments, including cement silo, concrete mixer, batching machine, screw conveyor and so on. Besides, small road machine, tower crane and other construction machinery are also an area for research and development.

Our customers are from 43 countries all over the world. We provide customize service for our customers.

We are a young company with rapid developing speed, energetic and professional research and develop team, young and responsible sales managers. We want positive assessment from our customers and provide best quality and service.

FAQ

1. Q: Where are your customers from?

A: Our Company is extending the trade scale at present. We have clients all over the world, such as Russia, Australia, Singapore, New Zealand, Canada, Malta, Turkey, Ukraine, Mongolia, Belarus, Qatar, Bangladesh, Mozambique, Brazil, Peru etc, and won the trust of the customers with good reputation. We make active effort to promoting the modernization construction of our country, encouraging the economic and technical communication with the world, and enhance the friendship with people all over the world.

2. Do you provide customize service?

Yes, we do. We can customize different products according to our customers' requirement.

3. Do you provide sample?

Yes, for most of our products, we provide sample for customers' reference. But, for the whole plant, we cannot provide. We welcome our customers to visit us very much.

4. Q: What is your MOQ?

A: Our MOQ is one set.

Thanks for your patience.If you have any further questions,please do feel free to contact me.
