With Vibrating Hopper Inclined Screw Conveyor/Auger Feeding Machine Screw Conveyor
- QingDao
You May Like
-
Concrete Equipment Machine the General Usage Screed Conveyor
-
Vibrating Hopper Inclined Screw Conveyor the Good Blade With Them
-
Shandong Dom Common Flexible Screw Conveyor for the Cement Powder
-
The Traditional General Common Use Screw Conveyor With Open Price
-
Screw Conveyor for Powder,small Screw Conveyor,plastic Screw Conveyor for Sale
-
Cement Silo Spare Parts Screw Conveyor for Powder,small Screw Conveyor,plastic Screw Conveyor for Sale
Product Details
| Condition | New | Type | Screw Conveyor | |
| Material | Stainless Steel | Material Feature | Oil Resistant | |
| Structure | Conveyor System | Place of Origin | Shandong, China | |
| Brand Name | Dom | Voltage | 220V | |
| Power(W) | 11.75 Kw | Dimension(L*W*H) | 111m | |
| Certification | ISO CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Screw Conveyor
Features
1. Adopt high-quality steel pipe with good integral rigidity.
2. Adopt double-pitch paddles, which decrease the compression degree of material when being transported, and avoid blocking.
3. Adopt high-quality reducer with heavy-duty design, large torque and low noise.
4. Adopt optional universal ball joint, which facilitates installation, adjustment and steering.
5. Inlet equipped with high quality middle-hoisting bearing and tail bearing.
6. Sufficient spare parts with complete specification.
7. Large stock for common diameter of 165,219,273, 323 and 407, and dimension & angle can be customized according to your requirement.
8. Assembled by standard parts and components, which makes it convenient for transportation.

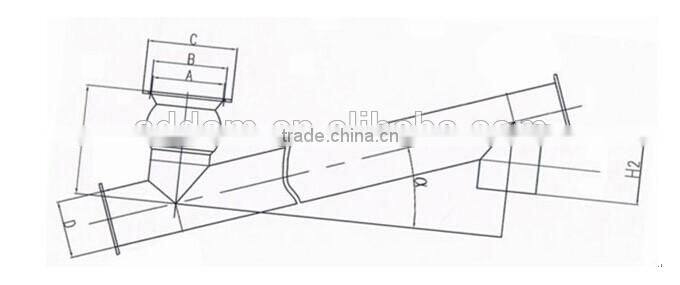

Dimension
Outer pipe Diameter D | Diameter of Inlet flange | Height of Inlet | Height of outlet | ||||||
A | B | C | 0-20° | >20-40° | >40-50° | 0-20° | >20-40° | >40-50° | |
H1 | H1 | H1 | H2 | H2 | H2 | ||||
140 | 200 | 250 | 280 | 400 | 450 | 500 | 250 | 300 | 350 |
168 | 200 | 250 | 280 | 400 | 450 | 500 | 250 | 300 | 350 |
219 | 300 | 350 | 380 | 500 | 550 | 600 | 300 | 400 | 450 |
273 | 300 | 350 | 380 | 500 | 600 | 700 | 350 | 450 | 500 |
323 | 300 | 350 | 380 | 550 | 700 | 800 | 400 | 500 | 600 |
407 | 470 | 470 | 530 | 750 | 900 | 1000 | 450 | 600 | 700 |

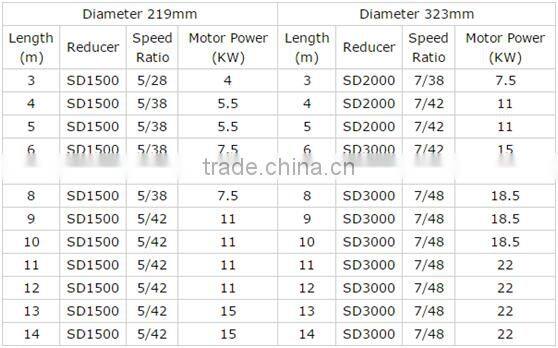

Technical date

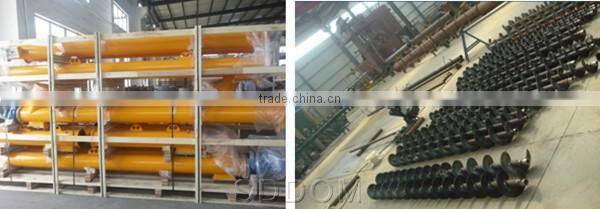

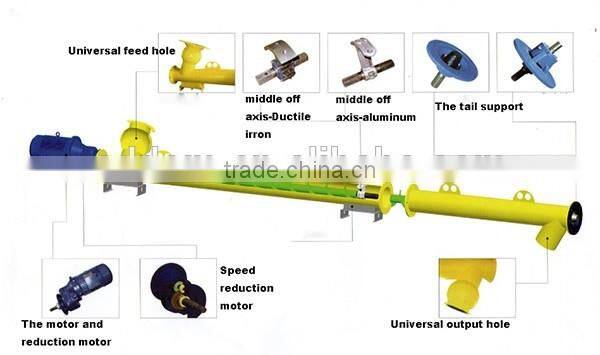

Details Parts

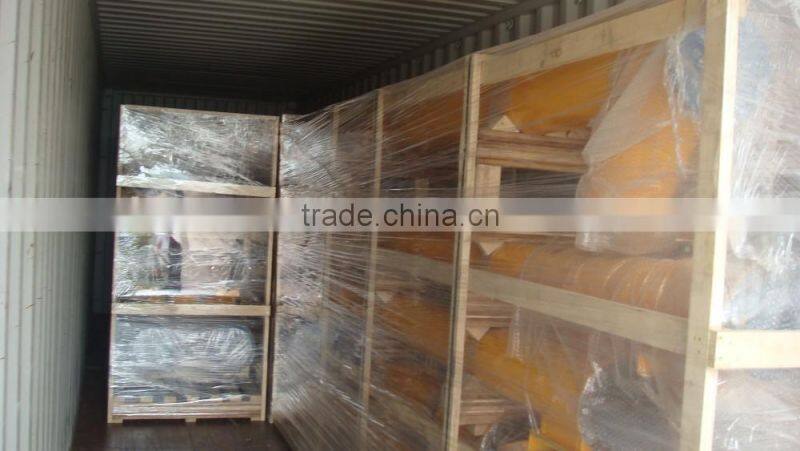

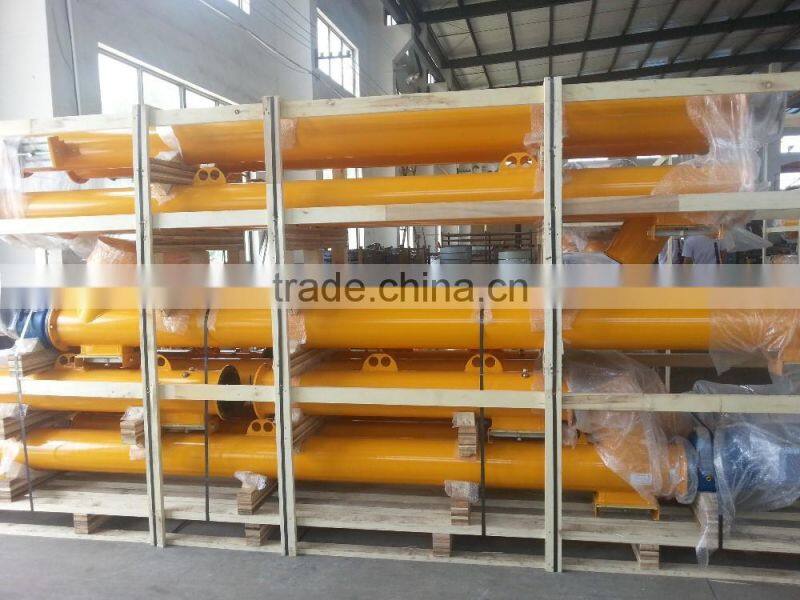

Packaging and Shipping
If you have any questions, just leave a message below.
You can also contact us by email or skype.
Skype:claire950119
Whatsapp:+86-13176839311
Mob:+86-13176839311
