219*8 Portable Conveyor for Truck Unloading and Silo Loading
- Qingdao
- T/T
You May Like
-
219*8 Screw Conveyor for Silo Cement and Concrete Batching Plant
-
Powder Filling Machine for Mobile Cement Tank
-
Bulk Loading Machine With Dust Collector
-
Dry Powder Filling Machine With Hopper
-
Small Powder Filling Machine for Bulk Cement Feeding
-
273mm Spiral Auger for Sale, Cement Convey Auger With Auger Drive
Product Details
| Place of Origin | Shandong, China | Brand Name | DOM | |
| Model Number | 219*8 |
Product Description
219*8 portable conveyor for truck unloading and silo loading
| Features |
1. Adopt high-quality steel pipe with good integral rigidity.
2. Adopt double-pitch paddles, which decrease the compression degree of material when being transported, and avoid blocking.
3. Adopt high-quality reducer with heavy-duty design, large torque and low noise.
4. Adopt optional universal ball joint, which facilitates installation, adjustment and steering.
5. Inlet equipped with high quality middle-hoisting bearing and tail bearing.
6. Sufficient spare parts with complete specification.
7. Large stock for common diameter of 165,219,273, 323 and 407, and dimension & angle can be customized according to your requirement.
8. Assembled by standard parts and components, which makes it convenient for transportation.
| Dimension |
Outer pipe Diameter D | Diameter of Inlet flange | Height of Inlet | Height of outlet | ||||||
A | B | C | 0-20° | >20-40° | >40-50° | 0-20° | >20-40° | >40-50° | |
H1 | H1 | H1 | H2 | H2 | H2 | ||||
140 | 200 | 250 | 280 | 400 | 450 | 500 | 250 | 300 | 350 |
168 | 200 | 250 | 280 | 400 | 450 | 500 | 250 | 300 | 350 |
219 | 300 | 350 | 380 | 500 | 550 | 600 | 300 | 400 | 450 |
273 | 300 | 350 | 380 | 500 | 600 | 700 | 350 | 450 | 500 |
323 | 300 | 350 | 380 | 550 | 700 | 800 | 400 | 500 | 600 |
407 | 470 | 470 | 530 | 750 | 900 | 1000 | 450 | 600 | 700 |
| Technical data |
Diameter 168mm | Diameter 273mm | ||||||
Length (m) | Reducer | Speed Ratio | Motor Power (KW) | Length (m) | Reducer | Speed Ratio | Motor Power (KW) |
3 | SD1500 | 5/28 | 4 | 3 | SD2000 | 7/38 | 5.5 |
4 | SD1500 | 5/28 | 4 | 4 | SD2000 | 7/38 | 7.5 |
5 | SD1500 | 5/28 | 4 | 5 | SD2000 | 7/38 | 7.5 |
6 | SD1500 | 5/28 | 5.5 | 6 | SD2000 | 7/42 | 11 |
7 | SD1500 | 5/28 | 5.5 | 7 | SD2000 | 7/42 | 11 |
8 | SD1500 | 5/28 | 5.5 | 8 | SD2000 | 7/42 | 11 |
9 | SD1500 | 5/28 | 5.5 | 9 | SD2000 | 7/42 | 15 |
10 | SD1500 | 5/28 | 7.5 | 10 | SD2000 | 7/42 | 15 |
11 | SD1500 | 5/28 | 7.5 | 11 | SD2000 | 7/42 | 15 |
12 | SD1500 | 5/28 | 7.5 | 12 | SD2000 | 7/42 | 15 |
13 | SD1500 | 5/28 | 7.5 | 13 | SD2000 | 7/48 | 15 |
14 | SD1500 | 5/28 | 7.5 | 14 | SD2000 | 7/48 | 18.5 |
Diameter 219mm | Diameter 323mm | ||||||
Length (m) | Reducer | Speed Ratio | Motor Power (KW) | Length (m) | Reducer | Speed Ratio | Motor Power (KW) |
3 | SD1500 | 5/28 | 4 | 3 | SD2000 | 7/38 | 7.5 |
4 | SD1500 | 5/38 | 5.5 | 4 | SD2000 | 7/42 | 11 |
5 | SD1500 | 5/38 | 5.5 | 5 | SD2000 | 7/42 | 11 |
6 | SD1500 | 5/38 | 7.5 | 6 | SD3000 | 7/42 | 15 |
7 | SD1500 | 5/38 | 7.5 | 7 | SD3000 | 7/42 | 15 |
8 | SD1500 | 5/38 | 7.5 | 8 | SD3000 | 7/48 | 18.5 |
9 | SD1500 | 5/42 | 11 | 9 | SD3000 | 7/48 | 18.5 |
10 | SD1500 | 5/42 | 11 | 10 | SD3000 | 7/48 | 18.5 |
11 | SD1500 | 5/42 | 11 | 11 | SD3000 | 7/48 | 22 |
12 | SD1500 | 5/42 | 11 | 12 | SD3000 | 7/48 | 22 |
13 | SD1500 | 5/42 | 15 | 13 | SD3000 | 7/48 | 22 |
14 | SD1500 | 5/42 | 15 | 14 | SD3000 | 7/48 | 22 |

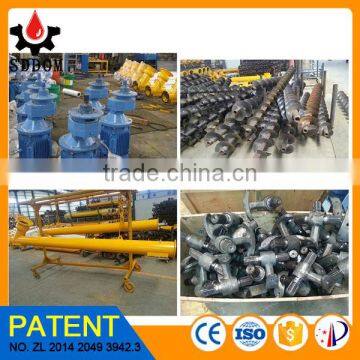

Details parts |
| Our service |
| Trading Process |
| About US |
SDDOM Our company is developing rapidly now. We have made CE certification qualification. We have clients all over the world, such as Lithuania, Russia, Australia, Singapore, Belarus, Mozambique, Philippines etc, and won the trust of the customers with high quality and good reputation.
