Home > Products > MB Wheels Mobile Concrete Batching Plant > CE standard high configuration mobile concrete plant,mobile concrete batching machine
CE standard high configuration mobile concrete plant,mobile concrete batching machine
- Any Port of China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Ready mix concrete plant for sale
-
MB1500 portable concrete mixing plant with CE
-
Professional construction companies mobile concrete batching plant,MB1500
-
Self loading concrete batch plant,25m3/h concrete batch plant
-
MB1200 Mobile concrete batching plant with screw conveyor, big bag cement silo and belt conveyor
-
MB1500 concrete batch plant mobile concrete batching plant
Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Shandong, China | Brand Name | DOM | |
| Model Number | MB1500 | Power(W) | 37KW | |
| Dimension(L*W*H) | 2500*2400*5700 | Weight | 10 Tons | |
| Certification | CE ISO | Warranty | One Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

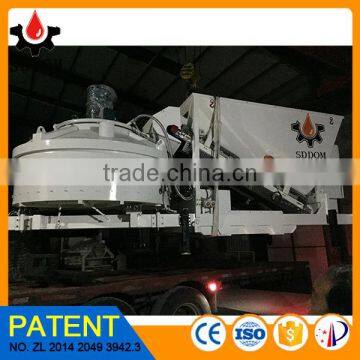

Mobile concrete batching plant
Patent No. ZL201420493942.3
CE Certificate No. EC.1282.0E140523.SDMQS69
| Brief Introduction |
The mobile concrete batching plant is designed according to Europe CE Standard. It solves the problems of installation, transport and limited working space of traditional concrete batching plant.
| Technical Parameters |
| No. | Name | Item | |
| 1 | MB1800 | Capacity | 17-25m3/h |
| Transport | one 40 feet container | ||
| 2 | Aggregate batcher | Volume | 7CBM for two units |
| 3 | Aggregate belt | Five layers of nylon | |
| 4 | Cement Weighing | USA Toledo Weighing sensor | |
| 5 | Concrete mixer | Filling volume | 750L / 1200kg |
| 6 | Water/Additive | Europe Grundfos water pump | Stainless pump |
| 7 | Cleaning | High pressure cleaning | |
| 8 | Control cabinet | SIEMENS | |
| Features |
Container transport, No need of foundation, Changing working site anytime, Working on site, Fully Automatic, Saving cost and protecting the environment.
| SIEMENS CONTROL CABINET |
1. SIEMENS Touch
2. Selection button of Automatic / Manual
3. Manual control area. There is no need to control them under “Automatic”.
4. Indicator & Alarm Light
5. Emergency stop
6. Power Switch
7. Printer
Different formulas can be save / set up according to requirements.
| USE of concrete batching plant |
| All types of mobile concrete batching plant |
The mobile concrete batching plant is designed according to Europe Standard, certificated by CE. More models attached in the following form.
| Model | CBM per hour | Model | CBM per hour | Model | CBM per hour |
| MB1200 | 10-17 | MC1200 | 10-17m3/h | MD1200 | |
| MB1500 | 17-25 | MC1500 | 17-25 | MD1500 | |
| MB1800 | 28-32 | MC1800 | 28-32 | MD1800 | |
| MD2200 |
| Complete mobile concrete batching plant |
Complete mobile concrete batching plant is combined by Cement silo, concrete batching plant and Belt conveyor. There are six types of cement silo waiting for your choice. Customization is acceptable in our factory.
| Our service |
| Trading Process |
| About US |
SDDOM Our company is developing rapidly now. We have made CE certification qualification. We have clients all over the world, such as Lithuania, Russia, Australia, Singapore, Belarus, Mozambique, Philippines etc, and won the trust of the customers with high quality and good reputation.
| CUSTOMER VISITING |
| Welcome to Visit our facotry |
Q: How many types of mobile concrete batching plant you have?
A: Four types, MB/MC/MD/YHZS. YHZS is traditional one, the others are our patent products. We also have stationary concrete batching plant.
Q: Is the belt conveyor necessary?
A: No. The discharging height of concrete batching plant is 1m. If your discharging height is higher, the belt conveyor is necessary. It can reach 3.5/3.8/4.0 meters.
Q: Can I move the complete concrete batching plant?
A: Yes, MB is wheels type concrete plant, wheels type cement silo, wheels type belt conveyor are all provided.
Q: How can I supply water / additive?
A: There is water tank on MB1200/MC1200. The water source / water tank is necessary on working site for other models.
Q: Can all the equipments be put in container? How many days does it need to install?
A: Yes, my friend, it's one advantage of our mobile concrete batching plant, 120/1500/1800 all can be put in container. 1 day is enough for installation.
Q: Do you have CE certificate for your concrete batching plant / cement silo?
A: Yes, we have. Both are our patent products, certificated by CE.
| CONTACT US |
