Cost of Cement Silo , Vertical Cement Silo for Sale
- any port of china
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Precast Cement Silo ,bolted Cement Silo ,vertical Cement Silo for Sale
-
2016 New Design Vertical Silo ,cement Silo,steel Silo for Sale
-
2016 Steel Silo Cost ,vertical Bolted Cement Silo for Sale
-
New Design Cement Silo ,mini Hot Sale Cement Silo for Sale
-
50t Bolted Vertical Cement Silo for Sale
-
New Design Vertical 100t Bolted Cement Silo for Sale
Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Shandong, China | Brand Name | DOM | |
| Model Number | 50t | Power(W) | customized | |
| Dimension(L*W*H) | 43538*24000*18704mm | Weight | 3.7t | |
| Certification | CE ISO | Warranty | One Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
cost of cement silo , vertical cement silo for sale
product introduce
The silo is combined by four main parts: the cover, wall sections, cones and supporting legs. All parts are pressed by special machine and mould, especially the wall sections which can be changed every place on the wall.The silo can be dismantled into many parts when transport, and can be installed with bolts easily, a 100T capacity silo can be assembled by 3 men in 3 days, so it is easy to transport and convenient to use.It is equipped with automatic dust collector, butterfly valve, automatic broken arch and the upper and lower level indicators and other facilities. |
detail of bolted cement silo

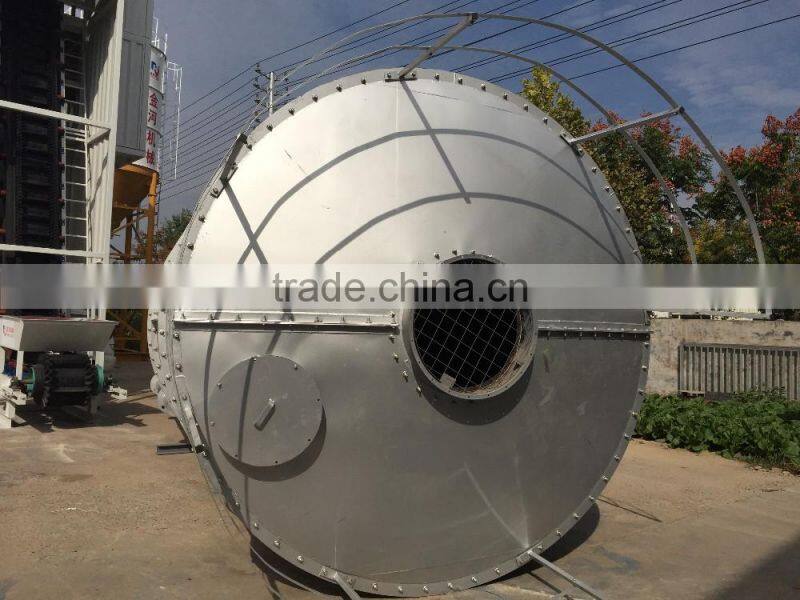

the cover of the vertebral body

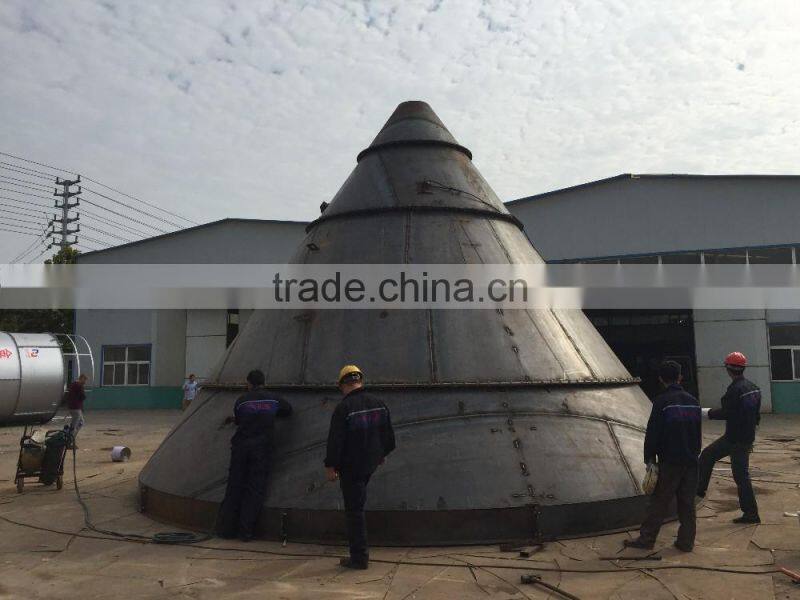

cones of bolted cement silo
wall sections of bolted cement silo

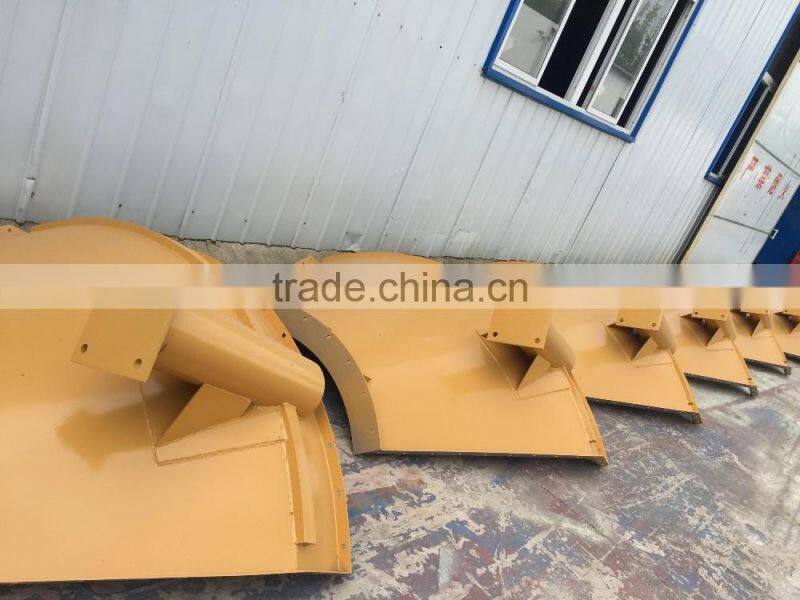

support leg of the bolted cement silo
50t bolted cement silo without spray paint
technical parameter
| capacity | Diameter | Height | Supporting legs | Thickness of plate | weight |
| 50t | 3160mm | 6.5m | 219mm*5 units | 4mm | 3.7t |
| 100t | 3160mm | 10.7m | 219mm*5 units | 4mm | 5.5t |
| 150t | 3160mm | 15m | 219mm*6 units | 4mm cone 5mm | 8t |
| 200t | 4500mm | 11.5m | 273mm*58units | 5mm cone 6mm | 12t |
| 300t | 5300mm | 12.7m | 325mm*8 units | 6mm cone 8 mm | 17t |
| 400t | 6800mm | 11.7m | 325mm*8 units | 6mm cone 8 mm | 21t |
| 500t | 6800mm | 13.5m | 325mm*10units | 6mm cone 8 mm | 28t |
parts of bolted cement silo

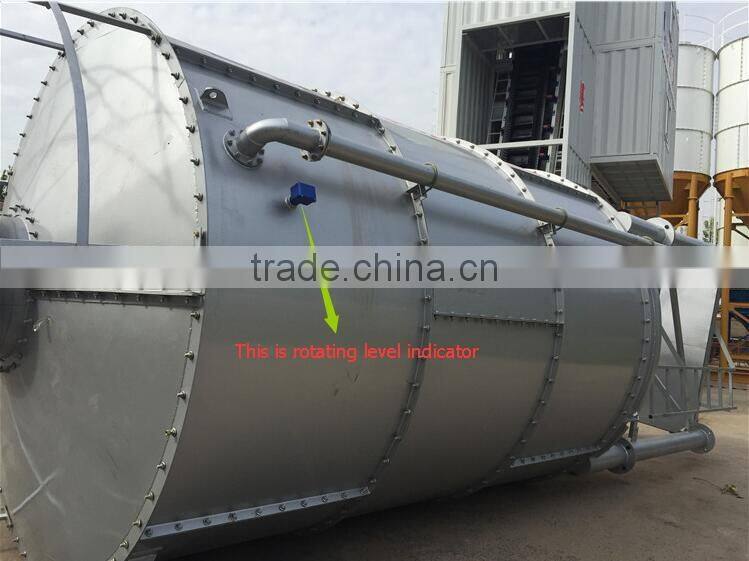

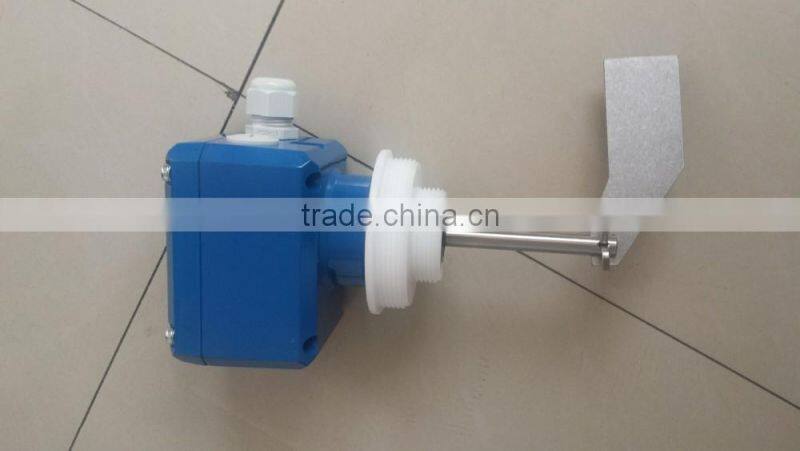

rotating level indicator
pressure relief valve and dust collector

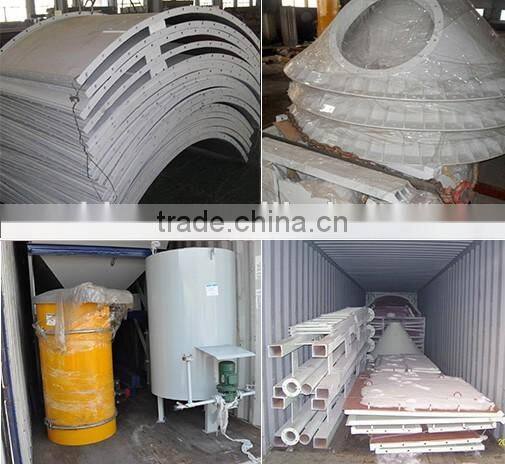

Paking &shipping
about us
SDDOM Machinery is the most innovative concrete machinery company. Mobile and Stationary Concrete batching plant, Bolted and Horizontal Silo, Planetary and Twin Shafts mixer and other more than 10 kinds of products are certificated by CE or get patent. Every step of Every equipment will be signed and checked from design, drawing, production, test to delivery. All the processing steps are meeting the requirements of Europe CE. More and more clients around the world come to visit our factory every month. Australia, Sweden, Denmark, France, Saudi Arabia, Kuwait, Indonesia, South Africa, USA, Brazil. Welcome friends from all over the world to visit us! Powerful Overseas Engineers Service team will provide you with professional technical support.
|
