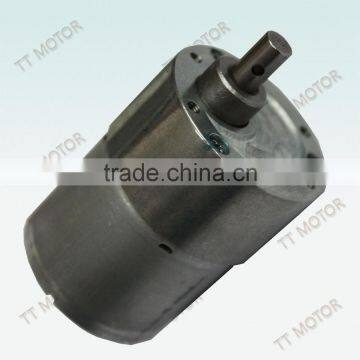

37mm dc geared reduction motor

FOB Price

Negotiable / Piece

100 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	TT MOTOTR
Model Number	GM37-3530	Usage	Boat, Car, Electric Bicycle, Home Appliance, Other, Boat, Car, Electric Bicycle, Home Appliance, lock,Robot
Certification	ROHS, Other, ROHS, QS9000,TS16949	Type	Gear Motor
Torque	Max 10kg.cm	Construction	Permanent Magnet
Commutation	Brush	Protect Feature	Drip-proof
Speed(RPM)	4-880rpm	Continuous Current(A)	0.18-0.25A
Output Power	1.4-3.1W	Voltage(V)	12v 24v
Efficiency	Other, 75%

37mm dc geared reduction motor
1.Voltage: 12V 24V
2.size:37.0*54.8mm
3.Torque:10kg.cm max
4.RHOS

37mm dc geared reduction motor

Application

Characters

Parameters and dimensions of 37mm dc geared reduction motor

Gearbox with motor:GM37-3530-1240-XXX-12v

Reduction ratio	6	10	30	44	56	90	169	270	506	810
Length mm	19	19	21.5	24	24	24	26.5	26.5	29	29
No-load speed rpm	600	360	120	85	65	45	24	15	8	5
Rated speed rpm	550	330	110	75	59	36	19	12	6	4
Rated torque kg.cm	0.2	0.3	0.8	1.1	1.3	2.2	3.7	5.4	10	10
entary tolerance torque kg.cm	1.1	1.8	4.6	5.8	7.4	10	15	15	15	15

Gearbox with motor:GM37-3530-1250-XXX-12v

Reduction ratio	6	10	30	44	56	90	169	270	506	810
Length mm	19	19	21.5	24	24	24	26.5	26.5	29	29
No-load speed rpm	800	490	165	110	88	55	30	18	10	6
Rated speed rpm	670	420	140	95	75	46	25	16	8	5
Rated torque kg.cm	0.2	0.3	0.8	1.1	1.3	2.2	3.7	5.4	10	10
entary tolerance torque kg.cm	1.2	2.0	5.2	6.6	8.4	13.5	15	15	15	15

Gearbox with motor:GM37-3530-2460-XXX-24v

Reduction ratio	6	10	30	44	56	90	169	270	506	810
Length mm	19	19	21.5	24	24	24	26.5	26.5	29	29
No-load speed rpm	950	570	190	130	100	65	35	22	12	7
Rated speed rpm	880	530	175	120	95	59	31	20	10	7
Rated torque kg.cm	0.24	0.4	1.1	1.3	1.7	2.7	4.6	6.7	10	10
entary tolerance torque kg.cm	1.9	3.2	8.4	10.6	13.4	15	15	15	15	15
