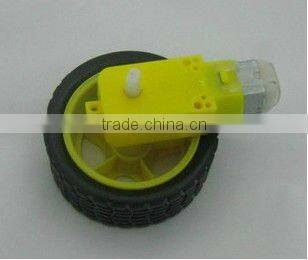

Plastic Gear Motor With Rubber Wheel 3v
Negotiable
/ Piece
500 Pieces(Min. Order)
- HK
- Credit Card
You May Like
Product Details
| Type | Other, dc gear motor | Place of Origin | Guangdong, China | |
| Brand Name | TT Motor | Model Number | TGP02D-A130 |
Product Description
Specifications

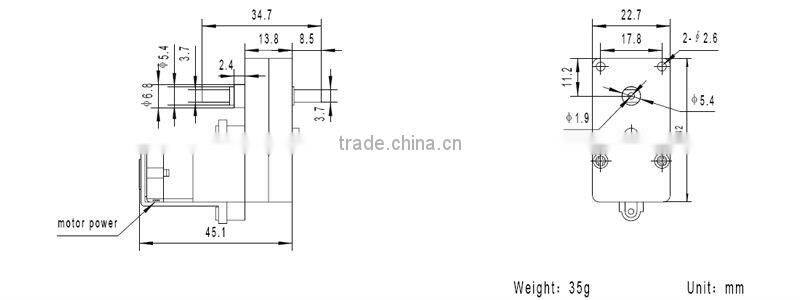

plastic gear motor with rubber wheel 3v1.size:22.7 X 42 X 45.1mm,mini motor
2.Ratio: 1/48,1/120,1/180,1/220,1/256
3.Rohs
plastic gear motor with rubber wheel 3v
1.Applications:Motorized Toy,Ride-on Toy
2.allowable max torque:500g.cm
3.high performance,low noise
4.We can send you samples for your reference first,
and you can also have the samples made as your detailed specifications.
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| V | r/min | A | r/min | A | N.m | Kg.cm | w | N.m | Kg.cm | A | |||
TGP02D-A130 | 18100-220 | 3.0-12.0 | 3.0 | 50 | 0.20 | 40 | 0.60 | 0.120 | 1.233 | 0.60 | 0.393 | 4.003 | 2.15 |
| 14150-120 | 3.0-12.0 | 3.0 | 65 | 0.16 | 52 | 0.30 | 0.035 | 0.362 | 0.29 | 0.200 | 2.055 | 0.87 | |
