dc Motor 36 Volt
- Hong Kong
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | TT MOTOTR | |
| Model Number | GMP36-TEC3650 | Usage | Boat, Car, Electric Bicycle, Home Appliance, Other, Boat, Car, Electric Bicycle, Home Appliance, lock,Robot | |
| Certification | ROHS, Other, ROHS, QS9000,TS16949 | Type | Other, brushless planetary motor | |
| Torque | Max 60kg.cm | Construction | Permanent Magnet | |
| Commutation | Brush | Protect Feature | Drip-proof | |
| Speed(RPM) | customized motor speed | Continuous Current(A) | 1A | |
| Output Power | 20 | Voltage(V) | 12v 24v | |
| Efficiency | Other, 75% |
Product Description
Specifications

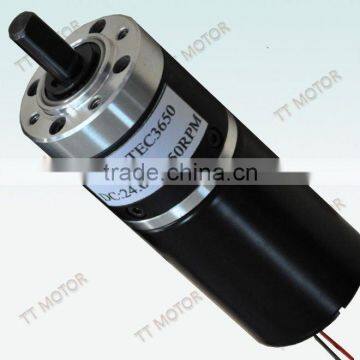

36mm dc brushless planetary gear motor1.Voltage: 12V
2.customized motor speed
3.Stall Torque: 60kg.cm
4.dc motor 36 volt
dc motor 36 volt36mm dc brushless planetary gear motor2.customized motor speed
3.Stall Torque: 60kg.cm
4.Reduction Ratio: 14,19,51,71,100,139,189,264,369,516,720
5.easy to operate
Built in driver
PWM Pulse wide speed range
Clockwise.Counterclockwise rotation
FGSpeed feedback signal
Over current protection
Overvoltage protection
Under voltage protection
5000H life time
Number of motor phase: 3
Gear motor Technical Data
Gearbox with motor:GMP36-TEC3650-2465-XXX
Reduction ratio | 4 | 19 | 51 | 100 | 139 | 189 | 264 | 369 | 516 | 720 |
Length mm | 31.5 | 38.5 | 48.5 | 48.5 | 48.5 | 55.5 | 55.5 | 55.5 | 55.5 | 55.5 |
No-load speed rpm | 1600 | 340 | 125 | 65 | 45 | 33 | 23 | 17 | 12 | 9 |
Rated speed rpm | 1300 | 280 | 100 | 53 | 38 | 28 | 20 | 14.5 | 10 | 7.5 |
Rated torque kg.cm | 0.5 | 2.2 | 6.0 | 12 | 16.6 | 22.5 | 30 | 30 | 30 | 30 |
entary tolerance torque kg.cm | 2 | 15 | 25 | 50 | 60 | 70 | 70 | 70 | 70 | 70 |
Gearbox with motor:GMP36-TEC3650-2440-XXX
Reduction ratio | 4 | 19 | 51 | 100 | 139 | 189 | 264 | 369 | 516 | 720 |
Length mm | 31.5 | 38.5 | 48.5 | 48.5 | 48.5 | 55.5 | 55.5 | 55.5 | 55.5 | 55.5 |
No-load speed rpm | 950 | 200 | 75 | 40 | 210 | 20 | 15 | 10 | 7.5 | 5.5 |
Rated speed rpm | 750 | 160 | 60 | 30 | 22 | 16 | 12 | 8 | 6 | 4.5 |
Rated torque kg.cm | 0.5 | 2.2 | 6.0 | 12 | 16.6 | 22.5 | 30 | 30 | 30 | 30 |
entary tolerance torque kg.cm | 2 | 15 | 25 | 50 | 60 | 70 | 70 | 70 | 70 | 70 |
