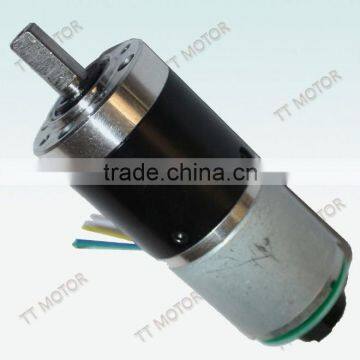

10rpm 36mm dc gear motor 12V

FOB Price

Negotiable / Piece

100 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	TT Motor
Model Number	GMP36-3530	Usage	Boat, Other, Boat, medical machine
Certification	ROHS	Type	Gear Motor
Torque	70kg.cm max	Construction	Permanent Magnet
Commutation	Brush	Protect Feature	Waterproof
Speed(RPM)	4.5-850rpm	Continuous Current(A)	0.17-0.25A
Output Power	1.3-3.1w	Voltage(V)	12V 24 V

10rpm 36mm dc gear motor 12V

Application

Characters

Parameter and dimensions of 10rpm 36mm dc gear motor 12V susan

Gearbox with motor:GMP36-3530-1240-XXX-12v

Reduction ratio	4	19	51	100	139	189	264	369	516	720
Length mm	31.5	38.5	48.5	48.5	48.5	55.5	55.5	55.5	55.5	55.5
No-load speed rpm	980	210	78	40	28	20	15	10	7.5	5.5
Rated speed rpm	850	175	65	34	24	17	12.5	9	6.5	4.5
Rated torque kg.cm	0.1	0.35	1.0	2.1	2.7	3.3	4.6	7.5	10	15
entary tolerance torque kg.cm	0.7	2.9	6.7	13	17	21	29	40	57	70

Gearbox with motor:GMP36-3530-1250-XXX-12v

Reduction ratio	4	19	51	100	139	189	264	369	516	720
Length mm	31.5	38.5	48.5	48.5	48.5	55.5	55.5	55.5	55.5	55.5
No-load speed rpm	1200	260	95	50	35	25	18	13	9.5	6.5
Rated speed rpm	1000	220	80	41	28	22	15.5	11	8	5.5
Rated torque kg.cm	0.1	0.4	1.2	2.4	3.0	3.8	5.3	7.4	10	14
entary tolerance torque kg.cm	0.8	3.3	7.6	15	19	24	33	46	65	70

Gearbox with motor:GMP36-3530-2460-XXX-24v

Reduction ratio	4	19	51	100	139	189	264	369	516	720
Length mm	31.5	38.5	48.5	48.5	48.5	55.5	55.5	55.5	55.5	55.5
No-load speed rpm	1450	310	115	60	43	31	22.5	16	11.5	8
Rated speed rpm	1300	275	100	53	38	28	20	14	10	7
Rated torque kg.cm	0.12	0.5	1.5	3.0	3.8	4.7	6.6	9	13	18
entary tolerance torque kg.cm	1.3	5.3	12	24	30	38	53	70	70	70
