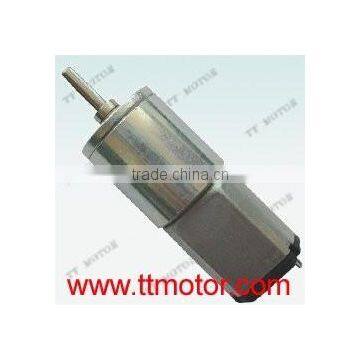

6v dc micro motor with planetary gearbox

FOB Price

Negotiable / Piece

100 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

6v dc micro motor with planetary gearbox

Application

Characters

Voltage:5V 6V 12V
Speed:6-2300RPM
torque:0.016-3kg.cm
Low noise,low current no spark
Motor with encoder,16 pulse signal
Reduction Ratio:3-1000
size:16*50 mm,just 50.0 mm length mini motor
We can offer the samples first ,the MOQ is 100 pieces ,the delivery time is 15-20 days.

Typical Applications

Copy Machine
Medical equipment
MD Player & Recorder
ATM DEVICES
Intelligent windows and doors

Paper feeder
Bank equipment
AD equipment

Description

Reduction Ratio:

1/4,1/16,1/19,1/29,1/62,1/84,1/104,

1/231,1/316,1/370,1/455

Parameter and dimension of 6v dc micro motor with planetary gearbox

Gearbox with motor:GMP16-030PA-09220-XXX-6V

Reduction ratio	4	16	29	62	104	198	231	370	850	1996
Length mm	15.5	18.7	18.7	22.4	22.4	26	26	26	26	29.7
No-load speed rpm	2750	690	380	180	110	56	48	30	13	5.8
Rated speed rpm	2300	575	317	148	88	46	40	25	10	5.6
Rated torque kg.cm	0.016	0.06	0.1	0.2	0.3	0.5	0.6	0.9	2	3
entary tolerance torque kg.cm	0.07	0.25	0.45	0.8	1.4	2.3	2.8	4.1	9	9

Gearbox with motor:GMP16-030PA-10180-XXX-5V

Reduction ratio	4	16	29	62	104	198	231	370	850	1996
Length mm	15.5	18.7	18.7	22.4	22.4	26	26	26	26	29.7
No-load speed rpm	2750	690	380	180	110	56	48	30	13	5.8
Rated speed rpm	2300	575	317	148	88	46	40	25	10	5.6
Rated torque kg.cm	0.016	0.06	0.1	0.2	0.3	0.5	0.6	0.9	2	3
entary tolerance torque kg.cm	0.07	0.25	0.45	0.8	1.4	2.3	2.8	4.1	9	9

Gearbox with motor:GMP16-030PA-06400-XXX-12V

Reduction ratio	4	16	29	62	104	198	231	370	850	1996
Length mm	15.5	18.7	18.7	22.4	22.4	26	26	26	26	29.7
No-load speed rpm	3000	750	425	195	115	63	54	34	15	6.2
Rated speed rpm	2440	610	335	155	94	49	42	26	11	6.0
Rated torque kg.cm	0.016	0.06	0.1	0.2	0.3	0.5	0.6	0.9	2	3
entary tolerance torque kg.cm	0.07	0.25	0.45	0.8	1.4	2.3	2.8	4.1	9	9
