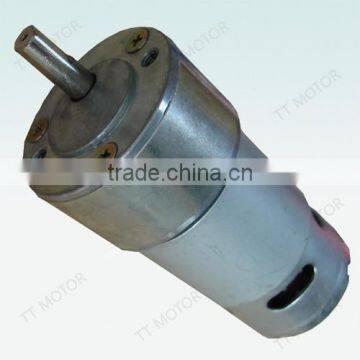

51mm off-centered shaft gear motor for heavy duty

FOB Price

Negotiable / Piece

1000 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	TT MOTOR
Model Number	GM51-775pm	Usage	Home Appliance, Other, Home Appliance, LIGHT BOX,
Certification	ROHS, Other, ROHS, TS16949	Type	Gear Motor
Torque	3.6-100kg.cm	Construction	Permanent Magnet
Commutation	Brush	Protect Feature	Drip-proof
Speed(RPM)	1.8-900(RPM)	Continuous Current(A)	2.3-8.6A
Output Power	80w Max	Voltage(V)	12V 24V 6V
Efficiency	IE 1

51mm off-centered shaft gear motor for heavy duty

Application

Characters

Voltage:6-24V
Speed:2.4-900RPM
size:51*110 mm,just 110 mm length mini motor
Low noise,low current no spark
Motor with encoder,12 pulse signal
Reduction Ratio: 5.2,10,20,38,83,153,333,613,1333,2453
We can offer the samples first ,the MOQ is 100 pieces ,the delivery time is 15-20 days.

Parameters and dimensions of 51mm off-centered shaft gear motor for heavy duty

Gearbox with motor:GM51-775PM-2460-XXX-24v

Reduction ratio	5	10	20	38	83	153	333	613	1333	2453
Length mm	24.1	24.1	28.3	28.3	32.5	32.5	36.8	36.8	41.1	41.1
No-load speed rpm	1100	550	280	150	70	38	18	10	4.5	2.5
Rated speed rpm	900	450	225	120	54	30	15	9	4.4	2.4
Rated torque kg.cm	3.6	7.2	12.6	24	45	82	100	100	100	100
entary tolerance torque kg.cm	14	28	50	96	180	300	300	300	300	300

Gearbox with motor:GM51-775PM-0648-XXX-6V

Reduction ratio	5	10	20	38	83	153	333	613	1333	2453
Length mm	24.1	24.1	28.3	28.3	32.5	32.5	36.8	36.8	41.1	41.1
No-load speed rpm	890	450	230	120	55	30	14	8	3.5	2
Rated speed rpm	730	365	180	96	44	24	12	7	3.4	1.9
Rated torque kg.cm	3.4	6.9	12	23	43	72	100	100	100	100
entary tolerance torque kg.cm	14	28	50	96	180	300	300	300	300	300

Gearbox with motor:GM51-775PM-1246-XXX-12V

Reduction ratio	5	10	20	38	83	153	333	613	1333	2453
Length mm	24.1	24.1	28.3	28.3	32.5	32.5	36.8	36.8	41.1	41.1
No-load speed rpm	850	430	210	110	52	29	14	7.5	3.5	1.9
Rated speed rpm	700	350	175	90	42	23	11.5	6.3	3.2	1.8
Rated torque kg.cm	3.4	6.9	12	23	43	72	100	100	100	100
entary tolerance torque kg.cm	14	28	50	96	180	300	300	300	300	300
