Home > Products > biogas compressor > biogas compressor biogas booster
biogas compressor biogas booster
- 5000 Set / Sets per Month
- QINGDAO
- T/T Credit Card
You May Like
Product Details
| Brand Name | Oasis | Model Number | LZSR100 | |
| Place of Origin | Shandong, China | Application | Cooking Fuel |
Product Description
Specifications
roots blower1.high effiency
2.energy saving & low noise
roots blower manufacturer; blower standard accessories;blower maintenance;after sale service;OEM
PD blowers used for waste water treatment, aquaculture,biogas conveying,grain transportation, hatchery plant, paper industry
Oasis is professional for three lobes roots blower; the blowers are used for water treatment; aquaculture;cement industry;
WELCOME TO OASIS THREE LOBES ROOTS BLOWER
APPLICATION SCOPE:
Our blowers are widely used in many fields, especially in waste water treatment, fishery ,aquaculture,hatchery plant, paper industry,biogas industry, sewage water treatment,
gas transportation, Pneumatic transport, grains conveying,sawdust transport,vacuum packing, aquaculture , oxygen generation , fertilizer plants etc.
SPECIFIC ADVANTAGES:
- Stable air flow and less pressure variation.
- Clean air with NO oil moist.
- Simple construction with easy maintenance.
- All bearings are lubricated by oil moist.
- Lower noise
- Three lobes design can efficiently reduce noise by approximately 5dB
- Three lobes design controls any backflow pressure towards rotor.
- Longer bearing life
- Less vibration transmitted through the lobes results in approximately 20% longer bearing life
- Lower energy consumption
- All our products can be used for OEM
PARAMETER TABLE:
Bore:50-350mm
Air capacity:0.44-180m3/min
Discharge pressure:9.8-98kpa
Motor power:0.55-315kw
Standard accessories:
Suction Silencer ;Discharge silencer;Anchor Bolt;Reverse Valve;Flexible Joint;Safety Valve;Pressure Gauge;Common Base;Blower Pulley;Motor Pulley;V-belt Cover;V-belt;First fill of lubricating oil
EXPORT AREA:
Our blowers are exported to Italy,Pakistan, Egypt, Romania,Libya,Singapore,Vietnam,Russia,Indoenesia,Bangladesh,Thailand, South Africa etc.

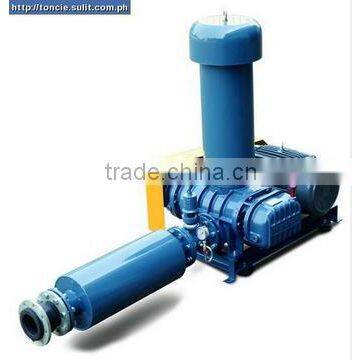

THREE LOBES ROOTS BLOWER PHOTOS:
OUR FACTORY
ROOTS BLOWER SHOWROOM
CUSTOMERS VISIT OUR FACTORY
ROOTS BLOWER APPLICATION
contact info:
Specification data:
1) three lobes roots blower:Rotary type
Our company, Oasis Blower, produces high quality roots blowers that are made of the most durable of materials, perform above and beyond their specifications, and at the same time are extremely affordable.
Any of our extensive range of three lobe roots blowers are exceptionally equipped to take water through an exhaustive and thorough desulphurization process. For an electric power plant or water treatment facility our product will consistently perform to a very high standard.
Ranging from the compact yet effective LZSR50 to the large scale, powerful LZSR350 we can cater to any level of requirement. The 50 mm (2") bore will couple with a wide variety of inputs and outputs. This allows for an easy installation process free from headaches and irritation. The impressive air capacity of the LZSR50 of 1.22~1.96m³/min is dwarfed by the LZSR350's astonishing 140~188m³/min. This range demonstrates the flexibility of our impressive range of equipment.
2)High presuure roots blower
Our LZSR50H high pressure roots blower performs to the high standards that our customers have come to expected from Oasis Blower. The LZSR50H has a 50 mm (2") bore, an impressive air capacity of 0.61~2.31m³/min and can maintain a pressure of between 63.7kpa~98.0kpa. This is a product that is very durable and is guaranteed to perform as promised.
The high performance electric motor ensures that the air flow remains at a stable, controlled level whilst keeping the pressure variation to a minimum. As with all of Oasis Blower's machinery, the construction of the LZSR50H is simple and functional. This allows for easy maintenance and repair. All of the bearings are lubricated to offer less resistance to the mechanical motion and to keep the operational noise to a minimum. In fact, the three lobe design reduces the noise of the machine by around 5dB in addition to preventing any backflow through the device. The limited vibration from the device will extend the longevity of the bearings by up to 20%. The added bonus of all of these features is that the energy consumed by the device is consistently less than other more rudimentary models. As with all of our products, our high pressure roots blower can be used for OEM.
The high pressure roots blower applications such as pneumatic conveying, waste water treatment plants, and electroplating tanks to more common environments such as dentistry and hospital use.
3)Roots vacuum pump (three lobes)
Roots vacuum pump (three lobes) is a vacuum pump that compresses and exhausts by rotating a helical rotor. It belongs to the category of technically dry-running rotary displacement vacuum pumps.It is also termed Roots pumps or Roots blowers.
The vacuum pumps can get steady pressure. The rotor/housing design drastically reduces pulsations and sound pressure levels. Assembled using state of the art CNC machinery enabling precise measurements and needed for more efficient pumping.Three-lobe design controls any backflow pressure towards rotor.
Our large roots vacuum pump in beltdriven type is suitable for applications requiring heavy exhaust volumes such as for over sized chambers
used for aerospace testing.For the vacuum pump application ,it is widely used for biogas conveying system,drying systems,filters ,pressurization of high altitude chambers,
dust collecting and vacuum Packing for food Industry applications.if your application is unique, we'll custom design a system to meet your particular needs.
roots vacuum pump exhaust systems can be fitted with a relief valve to automatically adjust the pressure if it exceeds the allowable range. This enables the pump to perform at maximum exhaust capacity even in high inlet pressure ranges.The biggest pressure can be -500mmHg.
