Home > Products > New Products > HSS Linear Electronic Ruler

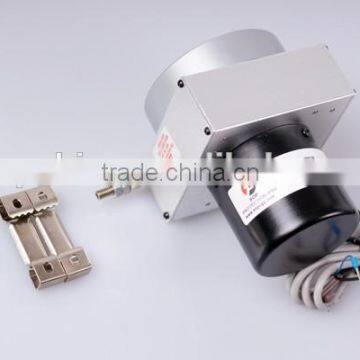

HSS Linear Electronic Ruler
- Shenzhen
- T/T Credit Card
You May Like
-
2LG110 Single-Phase High Pressure Air Blower
-
2LG310 Single-Phase High Pressure Air Blower
-
2LG410 Single-Phase High Pressure Air Blower
-
Superior Centrifugal Exhaust Three Lobes Roots Blower
-
Liongoal Vacuum New Type Roots Blower for Sale .ADC12 Die Casting Aluminum Material
-
High Quality Liongoal Air Conditioning Blower Fan and Aeration Roots Blower and Air Conditioner Blower
Product Details
| Place of Origin | Guangdong, China | Brand Name | HSIE | |
| Model Number | WYS-S12-12 | Usage | Position Sensor | |
| Theory | Resistance Sensor | Output | Digital Sensor |
Product Description
Specifications
linear displacement sensor1.High quality,competitive price
2.Fast delivery,excellent service
3.electronic ruler
We offer one of the largest variety of Linear Draw Wire Sensors in measuring ranges from 100mm up to 100000mm. A variety of configurations are available, providing alternative features. A number of outputs are available, including Poteniometer, Voltage, Current,and Quadrature Encoder.
Sensitive potentiometer rope Linear Displacement Sensor
Pictures for your reference:
1. Principle
Draw-wire displacement sensor measures linear movements using a highly flexible steel cable. The cable drum is attached to a sensor element which provides a proportional output signal.
2. Features
1. rugged construction, compact size, easy to install
2. economic cost, and cost savings for customers
3. cylinders, testing machines and other industry has achieved large-scale applicatIons, reliability
3. Displacement sensor Advantage
* Multi-strand soft stainless steel rope, corrosion-resistant type.
* Economic and practical.
4. Technical parameter
WYS-S type parameter:
Output type: | Digital |
Effective stroke: | 0-2500mm |
Sensor element: | Encoder |
Translation circuit: | No |
Output zero and output full: | No |
Linear accuracy: | 0.05%-0.08%FS |
Repeatability resolution: | 0.01%-0.005%FS |
Max. Velocity: | 1000mm/S |
Working voltage: | 24 VDC (pulse type power supply voltage: 5 ~ 24 VDC) |
Product style: | current mode (20 ~ 4 ~ 20 ma, or 4 ma); |
Resistance type | 0 ~ 5 k Ω; or 0 ~ 10 k Ω |
Voltage type | 0-10 VDC; or 10-0VDC |
Puse type | generally 3600-5000 PPR, incremental |
Useful life: | 5 million reciprocating stroke |
Protection Class | IP67 |
Key Features
- 0 to 5000mm measuring range
- Rugged, compact design
- Profiled enclosure
- Analog wire sensor
- Protected to IP67
- CE Approved
Note:
Wrong wiring may damage the sensor
Make sure wire in the power off state
Do not let go after wire is pulled out, otherwise the sensor could be easily damaged
Do not exceed the total length of the wire
Please ensure the cleanness of the equipment and wire line to prolong the service life
Avoid external force
