Volume Measuring Voltage Output China Ip65 Sensor

Beginning in 2002,focusing on industrial machinery precise measurement,SOP company is just for you!

In 2002,

Dongguan SOP Mechanical&Electric Co.,Ltd was established.

In 2004

SOP international group purchased the German,SOP sensor brand and all technical and move the production base to the china.

Founded the SOP brand , also applied to registered the China’s trademark and German trademark.

SOP sensor products start to the Chinese market.

In 2005

SOP launched high precision sensor .the Max precision can arrived:0.01mm

In 2006

SOP launched big working stroke line sensor.The Max working stroke can be 100m.

SOP launched cold-resistant ,High temperature resistance sensor.The The lowest temperature is 40 degrees below zero.Maximum temperature 100 degrees

SOP Pass the Trademark registration

SOP sensor was choosed to use for Three Gorges Dam, became the only one line sensor which Three gorges Dam was using now.

At the same time, SOP sensor was choosed for use by Sany Heavy industry,Xugong Group,Guangdong Water resources research institute.

In2007

Company through the ISO9001:2000 international quality management system

The company was named "Dongguan city environmental protection and energy conservation association unit"

SOP round tube type electronic ruler, China's first round tube electronic ruler

SOP sensor through the EU ROHS environmental certification

SOP sensor for China Air Force University

South China University of Technology, China Shipbuilding Industry Group Co., Ltd.

In 2008

The company was named "Dongguan private technology enterprise"

In 2009

SOP full range of sensor products enter the market, range: 5mm-100m

Current signal range: 4-2MA, voltage range: 0-5V,0-10V

Resistance range: 1kΩ-10Ω a few trips in the world, output signal of one of the manufacturer of the widest range of transducers

SOP sensor gas tank-specific product development success

SOP sensor products used for medical research and development success

SOP sensor m-theater-specific product development success

SOP type sensor corrosion product development success

SOP sensor type explosion-proof product development success

SOP sign sensors, Nanjing University of technology, Tianjin University, China Academy of machinery science

In 2010

The company was named "private high-tech enterprises in Guangdong Province"

The company was named: "Dongguan city, Member of the e-commerce Expo"

The company was named: "Dongguan Electronics Industries Association unit"

SOP Set up the first international group in Shanghai Office.

In 2011

Company has 28 patents for sensor core technology

SOP sensors signed with Henan University of science and technology ,and also Shenzhen Foxconn

Gree group, Chinese Academy of geological sciences and other companies and institutions

In 2013

Set up the first international group Fujian Office

SOP sign sensors

Shenyang scientific instrument Development Center

Why choose us?

*SOP company never stop purchasing the quality

*13 years sensing technology crystallization ,Focus on precise measurements of machinery industry,SOP company is just for you!

*Poor selection of industry’s first high-profile,focus on quality,did not compete.

Industry Application for china ip65 sensor

1.KTC is a versatile, suitable for various types of equipment to detect the position, such as: injection molding machines, die-casting machines, rubber injection machines, shoes, EVA injection machine, woodworking machine, hydraulic machine

2.KFT is a versatile slider linear displacement-free design, particularly adapted to reduce mechanical installation dimensions of length, suitable for application of larger stroke

3.KPZ is a mini Rod series, especially for the hole for space-constrained applications, and tie rod end with a 0.5mm of automatic features.

4.KPM is a mini articulated structure, suitable for small installations, an ontology cannot be fixed, moving swing position detection, neutral without any requirements for installation. Such as: Android, fetching machine, brick, ceramic machine, sluice

5.KTM is a mini Rod series, particularly suitable for space-constrained applications, such as: aircraft steering, steering, shoe machinery (the first machine after machine) thimbles position control of the injection molding machine, printing machinery, paper products and packaging machinery.

6.KTR is a self-recovery, is the minimum size of the miniaturization of structures, particularly suitable for small occasions, top putters do not need to install without having to

7.KPS is a miniature lever-style French installation structure, suitable for equipment and car applications within the cavity. Such as: coal, machinery, hydraulic machinery, and cavity detection

8.pulled rope displacement sensor application Yu warehouse location positioning, reservoir dam protection, gate open degrees control, pressure mechanical, paper mechanical, textile mechanical, metal plate mechanical, packaging mechanical, printing mechanical, level control instrument, building mechanical, industrial robot, shot out machine, woodworking mechanical, Elevator, empty pressure compressor/hydraulic machine, height machine, X-Y axis and the other length displacement, liquid bit, related size measurement and location control.

Common Problems and solutions for china ip65 sensor:

1. insufficient power supply capacity Zhao-----electronic ruler shows fluctuations to provide a stable power supply capacity

2. FM interference and electrostatic disturbance----electronic device displays the number fluctuation signal lines and electric lines to separate on-line slot

3. display data regularly beat, or fail to display data----check that the line is broken or shorted

4. caused by poor installation will display digital watches----install need for neutral linear displacement sensor is very good, but parallelism can allow +-0.5MM errors, point can allow +-12 of error

5. sensor wiring error----correctly connect the power cord and output lines.

Classification of products for china ip65 sensor

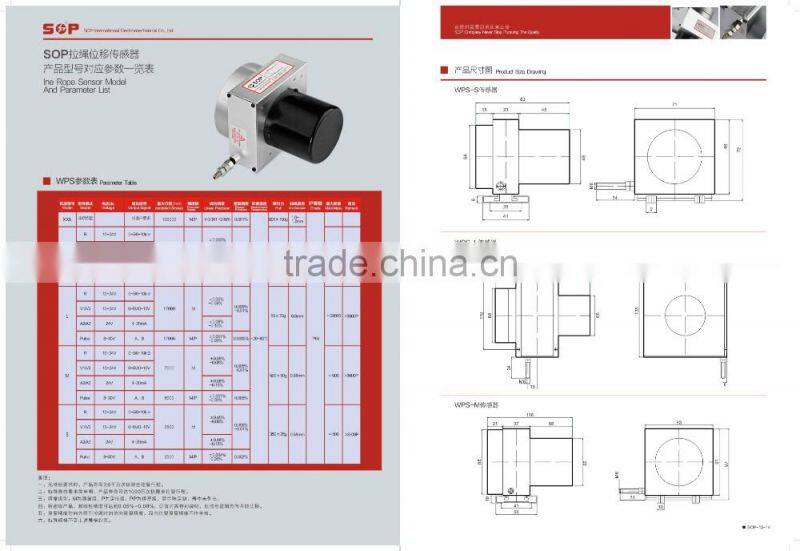

1.WPS rope sensor

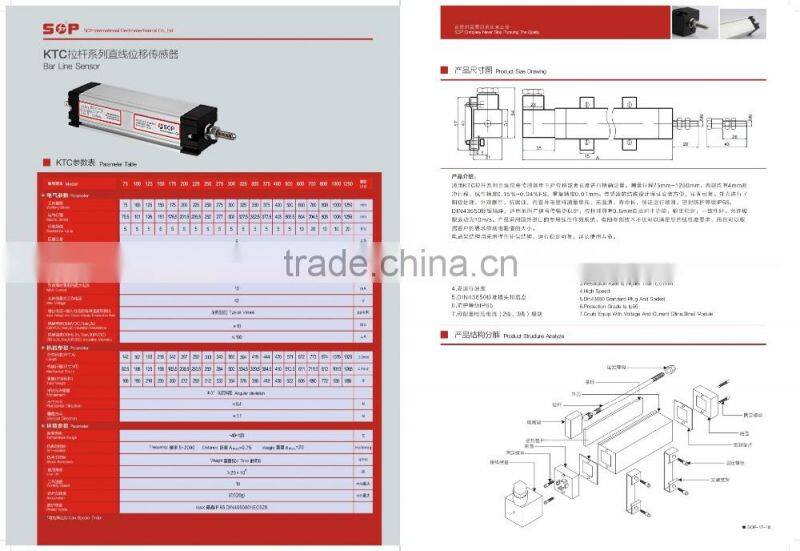

2.KTC Bar line sensor

3.LWH bar line sensor

4.KTF slide electric conduction plastic film

5.KTM mini bar type line sensor

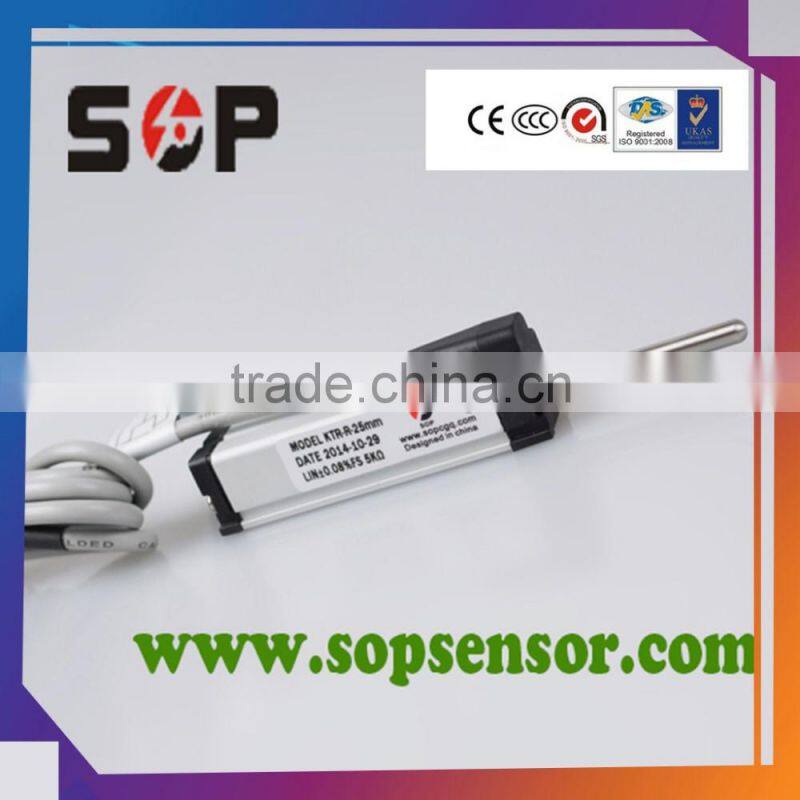

6.KTR mini recover type line sensor

7.KPM mini hinge joint electric conduction plastic film line sensor

8.KPZ mini bar type line sensor

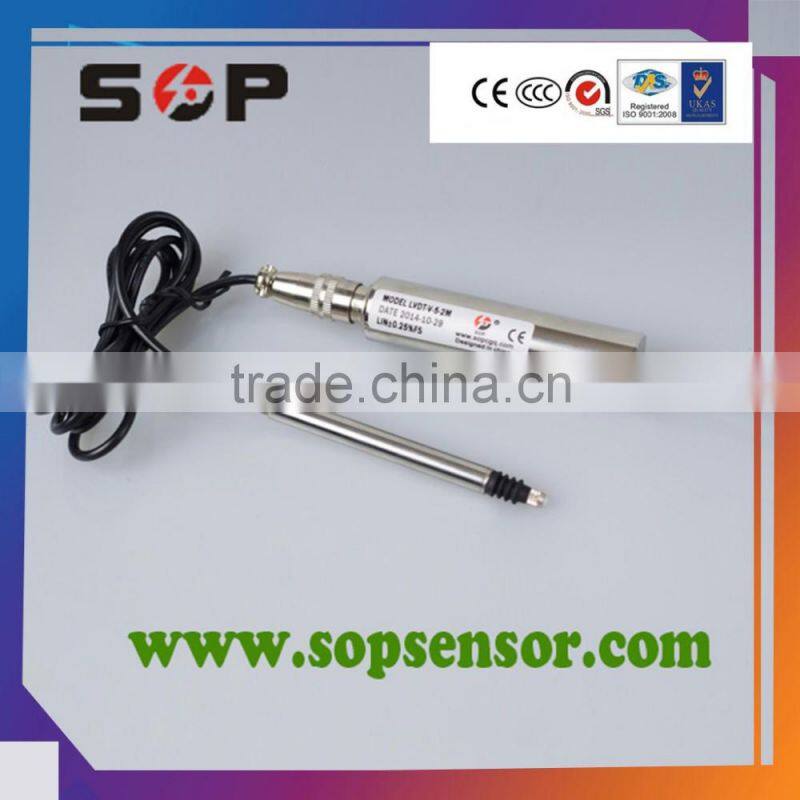

9.LVDTS pen-displacement sensor

10.LVDT Dc rebound displacement sensor

Products Overviews

Technical Parameters for china ip65 sensor

Technical knowledge for china ip65 sensor

Electrical factors that affect the accuracy:

1. two-wire current output A2, maximum load, linear precision lower than minimum load 0.02%FS

2. three-wire current output type A3, maximum load, linear precision lower than minimum load 0.04%FS

3. voltage-output V1,V2 for empty, you need to load, load resistance cannot be less than 500kΩand precision than when you unloaded decreased 0.25%FS

4. resistance output type R-load type, you need to load, load resistance cannot be less than 500kΩ and accuracy than when you unloaded decreased 0.25%FS.

Precision Note:

1. when the callout parameter is a charged load test values, minimum load linear precision will raise about 0.02%FS

2. excessive load will cause the product does not work properly, or damage the product features

External mechanical bias effect on accuracy:

1. traction when the misalignment error S2=10002+102.S=1000.05mm. real traction lines with errors of the trip will be S=0.05mm

2. horizontal traction dangling error is: S2=1002+102,S=1000.05mm, the actual string error and trips will be 2S=0.1mm

3. traction side-wind effects error is S2=1002+202,S=1000.20mm, the actual string and trip error is 2S=0.40mm

Error rate: 0.02%FS

the corded foot is one of the biggest advantages of the installation of demand is not high, the linear precision less affected by external bias.

The advantages of two-wire current output type:

1. at present internationally as the standard displacement of the current remote sensing for analog signals.

2. susceptible to parasitic capacitance, resistance effect of pressure drop and temperature drift along, the transmission line is available very cheap and fine twisted-pair cable

3. the accuracy of the output signals are less prone to influence of load, the maximum and minimum load only linear precision 0.02%FS

4. output range, theoretically the transmission distance can be reached 1000m

5. transport terminal variable voltage signal into standard, versatility and applicability are well.

Q: Are you manufacturer for china ip65 sensor?

A: Yes, we are manufacture.

Q: Do I get guarantee of products?

A: Yes, every product is 1 year quality warranty under customer correct using the products.

Q: How to buy 1 pcs to test quality?

A: Please contact us, we have our express agent can choosing the cheapest and fastest way to delivery.

Q: I only want to buy 10pcs, but express is too high cost, what can I do?

A: Please contact us and provide destination port details. We have own forwarder. Working term is very fexible in our company, FOB or C&F are no problem for us

Q: How can I pay to you?

A: We accept , T/T,L/C or you any other payment terms for your convenience.
