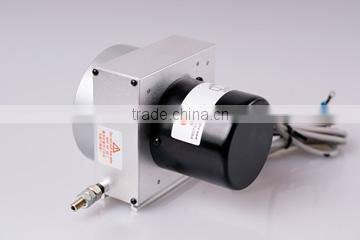

WPS Line Rope Sensor/High Precision Displacement Sensor
- any port in China
- T/T Credit Card
You May Like
-
High Resolution WPS-800mm Pressure Sensor and Analog Sensor and Position Sensor and Transducer
-
New Design Intelligent Linear Displacement Rope Sensor
-
Digital Rope Encoder Optical String High Speed Sensor
-
New Design Intelligent Wire Rope Oil Level Sensor
-
SOP LWH 1000mm Linear Potentiometer Position Sensor
-
SOP LWH 1000mm Weight Sensor and Electronic Weight Sensor
Product Details
| Place of Origin | Guangdong, China | Brand Name | sop | |
| Model Number | WPS | Usage | Position Sensor | |
| Theory | Resistance Sensor | Output | Analog Sensor |
Product Description
We offer one of the largest variety of Linear Draw Wire Sensors in measuring ranges from 100mm up to 100000mm. A variety of configurations are available, providing alternative features. A number of outputs are available, including Poteniometer, Voltage, Current,and Quadrature Encoder.
1. Principle
Draw-wire displacement sensor measures linear movements using a highly flexible steel cable. The cable drum is attached to a sensor element which provides a proportional output signal.
2. Features
1. rugged construction, compact size, easy to install
2. economic cost, and cost savings for customers
3. cylinders, testing machines and other industry has achieved large-scale applicatIons, reliability
3. Displacement sensor Advantage
* Multi-strand soft stainless steel rope, corrosion-resistant type.
* Economic and practical.
Key Features
- 0 to 5000mm measuring range
- Rugged, compact design
- Profiled enclosure
- Analog wire sensor
- Protected to IP67
- CE Approved
Note:
Wrong wiring may damage the sensor
Make sure wire in the power off state
Do not let go after wire is pulled out, otherwise the sensor could be easily damaged
Do not exceed the total length of the wire
Please ensure the cleanness of the equipment and wire line to prolong the service life
Avoid external force
welcome your inquiry ! glad to serve you and provide rope displacement sensors or
linear displacement transducers for you !!
