Product Details
| Place of Origin | Shandong, China | Brand Name | BPM | |
| Model Number | BPMTG102 | Material | HDPE |
Product Description
perforated plastic panels ground stabilizer driveway paver geocell

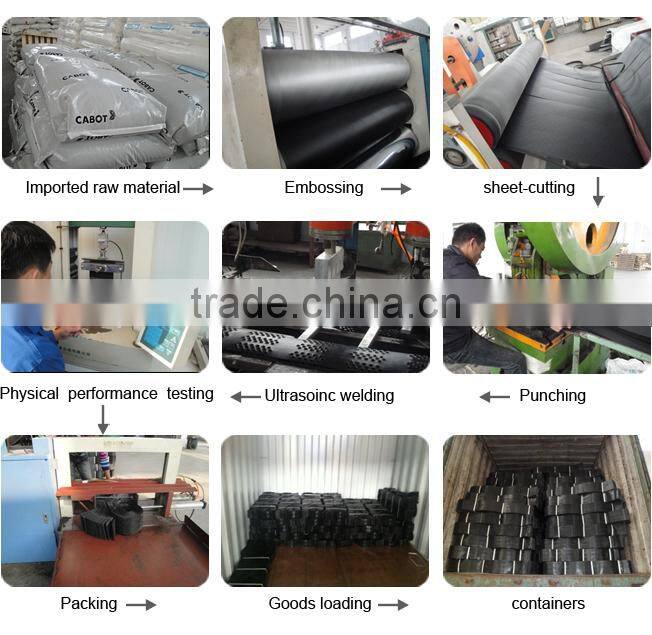

BPM HDPE geocell is three dimensional, honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technics .
It is flexible to fold during the transport and installation on construction site.
The geocell nets will be filled with soils,granular, cements or other on-site infill materials when stretched into web structures, which has powerful and rigid confinement in the lateral and vertical sides.
Notes:When you are ready to inquire,pls specify your requirements as follows.
1.Geocell Height:50mm to 200mm.
2.Welding Distance(330mm to 1000mm).
3.Seam Peel Strength(100N/cm,110N/cm,120N/cm,142N/cm)
4.HDPE Sheet Thickness(1.1mm,1.2mm,1.5mm,1.75mm).

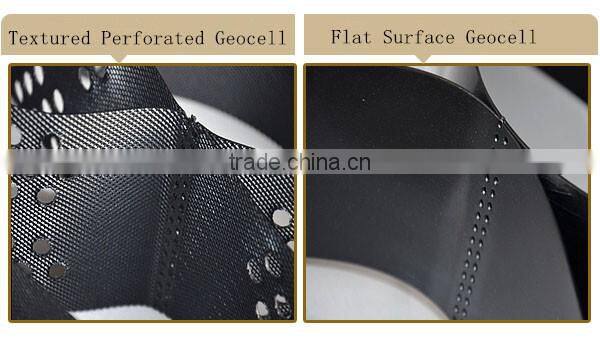

Enlarged Geocell Image
Product Type | Height(mm) | Welding Distance(mm) | Thickness (mm) | Tensile Strength of Welding Points(N/cm) | Tensile Strength of Connection of Cells(N/cm) | Tensile Strength at Yield of Each Sheet(Mpa) |
Smooth and Not Perforated | 50≤H≤250 | 330≤A≤1000 | 1.0~1.4 | ≥100 | ≥120 | ≥20 |
Smooth and Perforated | 50≤H≤250 | 330≤A≤1000 | 1.0~1.4 | ≥100 | ≥120 | ≥20 |
Textured and Not Perforated | 50≤H≤250 | 330≤A≤1000 | 1.5~1.7 | ≥100 | ≥120 | ≥20 |
Textured and Perforated | 50≤H≤250 | 330≤A≤1000 | 1.5~1.7 | ≥100 | ≥120 | ≥20 |
Remarks: 1. This is a basic technical specification. 2. All of the technical indexes can be reached according to the customers' demand, and the other special standards will be carried out by agreement or contact.
| ||||||

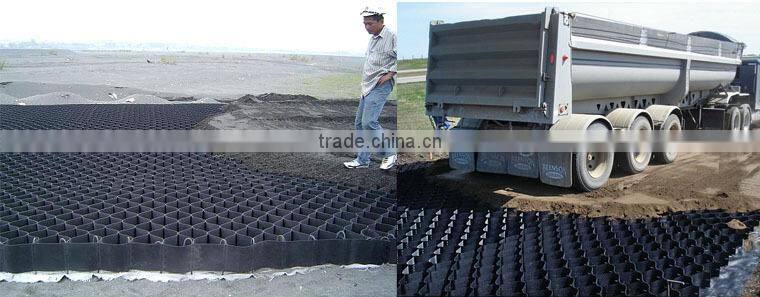

Application

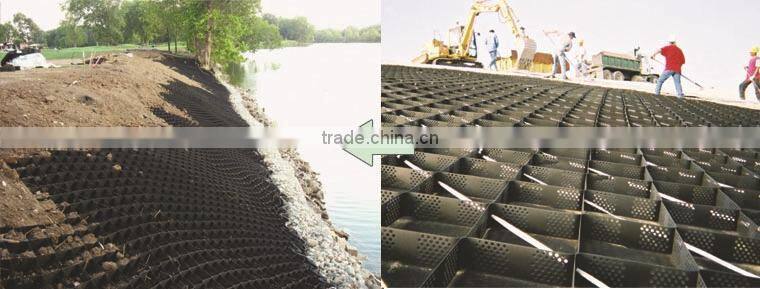

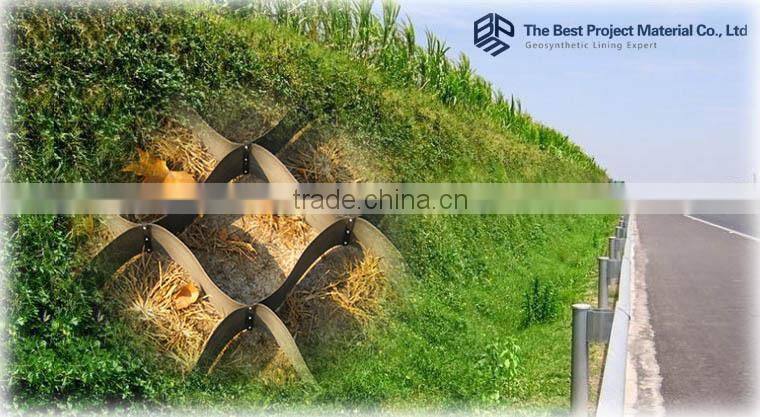

Slope protection

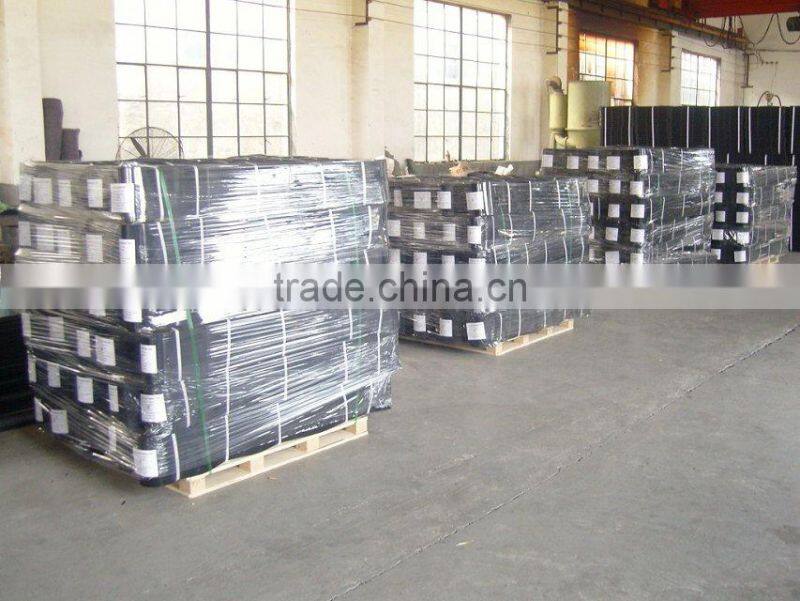

Storage and Shipping
