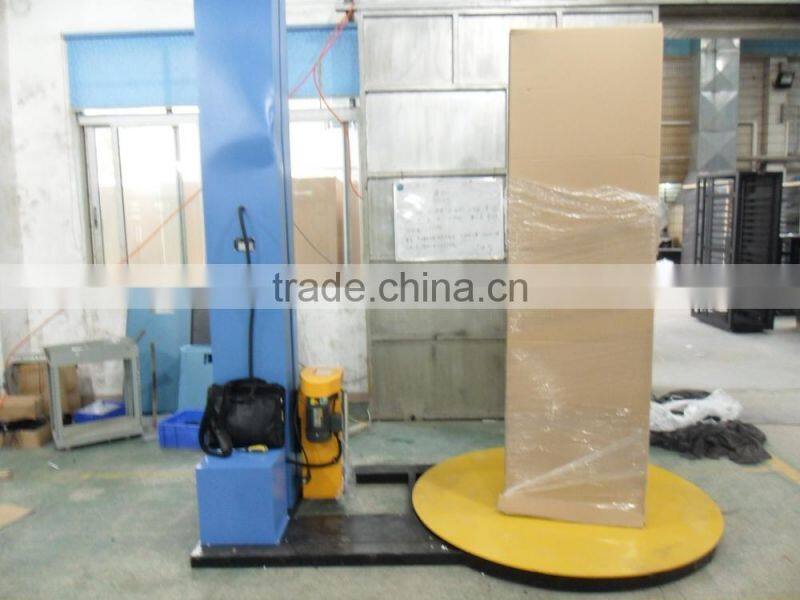

Pallet Stretch Wrap Machine With Weight and Print Function

1high efficiency low consumption and easy operation .

2can design winding way and times according to detail demand

3automatic measure cargo height

4turntable automatic reset

5film pre-stretching rate is 50-250%(adjustable)

Machine introduction

1. Stretch wrappers are machines that used to wrap LLDPE stretching film (a plastic film) around a loaded pallet. The stretch film provides extra support while the products being transported or stocked so that they do not tip, spill, or otherwise damage.

2. Additional, the packing cost will be reduced, a more convenient storage and transportation will be achieved and an easier recycle of the packing materials will be conducted with the application of stretch wrapping machines, thus ensuring a less polluted environment. This is currently one of the popular environmental-friendly packing methods.

3. The application of this kind of packing method has extensively covered chemical industry,electronic industry, building materials, home appliances, papermaking, foodstuff & drink etc, especially the container goods transportation in foreign trade.

Automatic pre-stretch and touch screen pallet packaging machine/machinery.

Main performance

Film carriage systerm: fram of pre-streching film, achieve 250%, automatic send film, adjusted speed systerm control the tension of film

Tower of up-down: double chain,speed of up-down can be adjusted

Control systerm: PLC control, winding layer and winding number can be adjusted, speed of up-down is frequncy adjustable.

Operation function: autorun, auto-complete the function of machine setting,

Automaticlly sense the high of goods, turntable self-returning, winding layer and winding number of up and bottom can be adjusted.

Technical parameter

1.Packing Standard:

Standard: 500-1200mm(L) ×500-1200mm(W)×2000mm(H)

2.Turntable Capacity:≤2000 kg

3. Turntable diameter: 1650mm

4.Packing Materials:

Materials:LLDPE stretch film

Width:500mm

Thickness:17-35μm

Inner Core of the Film Scroll:76.2mm

Outer-Diameter:≤280 mm

5.Power Supply:AC220V 50/60HZ 10A –1P

6.Power: 1.5KW

7.Machine Weight:700Kg

8.Packaging efficiency:2~4min/pallet

9.Turntable speed:6~14rpm

 • 3 years warranty for whole machine(except for the mould and rollers)

 • 24 hours techinical support online

 • Calling or door-to-door service

Our company has not only researched three series of pellet mill, briquette press, crushers, hammer mill, mixer, cooler and pasture machinery but also the complete sets of feed, forest, fertilize, energy machinery equipments with more than ten kinds of high-quality products. They have been exported to Southeast Asian, Europe, Africa, and America, and so on.

Yinhao machinery equipment is always improving his design to confirm to the world market. High quality, creativeness, reliability are our strong points.

Old and new friends, welcome to our factory!

 Your satisfaction is our permanent pursue!

1.Q:Are you a factory or trading company?

A:We are the professional manufacturing factory and we have exported our products to many foreign countries.

2.Q:Where is your factory located? How can I visit there?

A:Our factory is located in Zhengzhou City( Henan Province, China, ).You can fly to Zhengzhou Xinzheng International Airport and we can go to airport to pick you up directly.All our clients from home or abroad are warmly welcome to visit our factory and inspect our products!

3.Q:How does your factory do regarding quality control?

 A:"Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained CE, SGS authentication.
