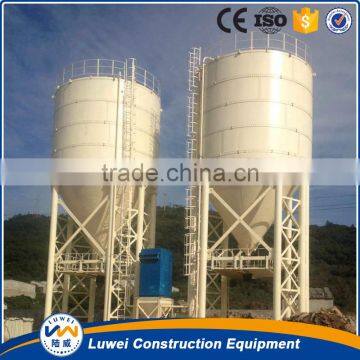

Silos for farm/poultry feeding farm silos for sale

Features of  animal feed silo

1.There is buffer design inside the silo hooper bottom, so the cement in the silo will discharge automatically due to the gravity.

2.The supporting legs are made of seamless tube, which has good bearing, can withstand 8degree earthquake, typhoon 35meters per second.

3.2 kinds of angles-45 degree and 60 degree, among which the 60 degree conical-bottom is usually used to store larger pellet and powder materials which must be dry.

4.The coating is expoxy paint, which is of Strong adhesion of inorganic materials such as cement, metal; Very corrosion resistant coating itself; Good mechanical properties and wear resistance, impact resistance; Can be made without solvent or high solid coatings; Organic solvent resistance, heat resistance, water resistance; Coating non-toxic. Also it could be galvanized.

5.It is conected with bolts and screws and nuts, assembled and easy maintenance.

The advantages of animal feed silo

1. Good sealing structure with triple sealing-- t-flange, special sealing strips, glass sealant, and the clips on the screw.

2. Industrial production with high degree of standardizaton, which components could be installed on site.

3. High level bolts used when install the silo, making the installation firm and easy and efficiently, and mostly shorten the construction time.

4. Easy operate. The bolted silo is equipped with relevant accessories, such as: conveyor, dust collector, relief valve, and monitoring devices, etc. which ensures the quality and safety of the material stored in the silo.

5.Simply maintanance. There is a manhole on the hooper bottom cone, and top rail on top of silo, also with the accessories like level indicators, all these make the maintance of the silo brief.

6. Low cost and long tenure of use. The cost of bolted silo is just around 25% of the galvanized steel grain silo with the same specification; and its life span can reach 30 years.

7.Luwei hooper bottom steel silo capacity could be from 3tons up to 2000tons, and can accept customized orders with high stock of 50tons, 100tons, 150tons, 200tons and 500tons cement silo.

Structure of  animal feed silos

1. The Silo Body

Include the wall plate, T-flange, manhole, roof ladders and so on.

(1) The wall plate

Our steel is carbon steel, exposy paint,  which makes it durable and weather resistant. Our advanced high level  bolts with spherical washer and the resisting-worn rubber, glass sealant, speacial strips utlized on sheets, ensuring the tightness and enlarge long life.

(2) T-flange

The t-flange made of H-beam bar, is used to reinforce the silo body. It is connected by junction panels.

(3) Manhole and Roof Ladders

There are inspection door and ladders inside and outside the silo body. It is convenient and accessible for any maintenance work.

2. Roof

Roof material is diamond plate, with a little radian. The space age construction technology, which is adopted in the design of the silo framework, can ensure the stability of silo under the large span. There is a guardrail around the silo eaves and there is hole on top of the roof for dust collector for capacity under 1000tons silo.

3. Hopper bottom

buffer design function as ventilation net pipe, a manhole for maintainance, outlet flange with customized order size. The hopper bottom silo with 45 degree or 60degree angle for all capacity silo from 10tons to 3000tons, but 60degree angle is the common designed one.

4. Neccessory Equipment

-Feeding ways:bucket elevator, chain plate conveyor, hopper elevator or use the pneumatic trasmission with air compressor;

-Discharging ways:screw conveyor, vibration feeder, impeller feeder, bulk loader for truck;

-Neccessory accessories:level indicator, dust collector, relief valve, butterfly valve, arch breaker device.

Installation of animal feed silo

As installation, we could arrange by our customers requirements like:

-install silos by themselves, we could offer detailed video and word guidance instruction, and we'll give our quickest response to deal with any question in the process.

-send our engineer to supervise the installation process. The client could find local workers for the installation work and our engineer will help them during the process.

-we could send our installation team for the whole installation process.
